Larson Explosion Proof Emergency Lights & Fluorescent light Combination - 2 foot - 2 lamps
Larson Explosion Proof Emergency Lights & Fluorescent light Combination - 2 foot - 2 lamps
Sold by: Larson Electronics
Made in the USA

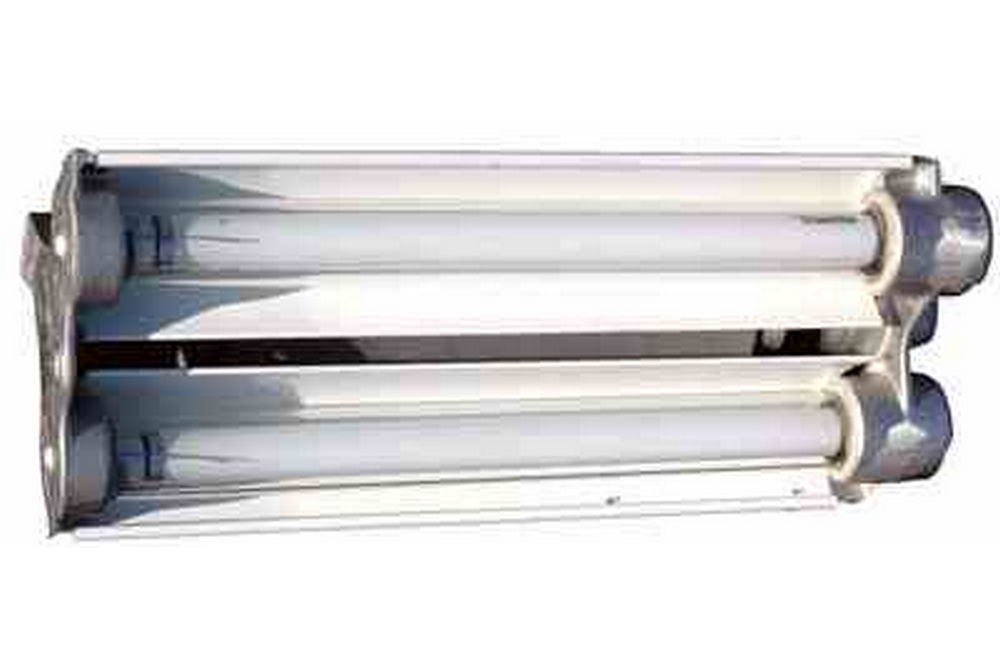

The Larson Electronics EPL-EMG-24-2L Explosion Proof Paint Booth Fluorescent Emergency Light Fixture is NRTL Listed for United States and Canada Class 1 Division 1, Class 2 Division 1
and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. The standard model includes an emergency ballast and T8 lamps.
The EPL-EMG-24-2L is a 4 foot long, 2 lamp, Class 1 Division 1 and Class 2 Division 1 and 2 explosion proof fluorescent light which is equipped with an added battery backup providing 90 minutes of emergency runtime. This fixture comes standard with two T-8 fluorescent lamps which produce a combined 2,700 lumens of light. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of an emergency battery backup. Â
This fluorescent light works, mounts and is wired like our EPL-24-2L explosion proof fluorescent light fixtures. The main difference is that we attach an extra Bodine ballast box to the unit that adds emergency light functionality to the fixture. This explosion proof emergency light will run the standard 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 1350 lumens for 90 minutes. For an additional charge, a second ballast can be added to run a second lamp for2700 total lumens output for 90 minutes. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode.
Additional mounting options:
Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown in the photos above. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit).
Standard Bracket Mounts:
Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. The first picture shown above illustrates the ballast side bracket and also shows the access caps for changing the bulbs. The second picture shows the bracket at the opposite end of the fluorescent light.
Made in USA Quality
Lamp Options
1. Each unit dielectrically tested.
F17-T8
– 1325 lumens per bulb (2650 lumens total), 24,000 hours life, 4100 Kelvin color
Specifications
NRTL Listed for United States & Canada
United States & Canada NRTL Listed forÂ
Dimensions: W-11.25" L-29 " H-8.5 "
Weight: 65 Lbs
Total Watts: N/A*
* Total Watts: N/AListed for Paint Spray Booths
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Total Lumens: F17-T8 Bulbs 2650
Lamp Life Expectancy: F17-T8 Bulbs 24,000 Hours
Efficiency: N/A
Operating Temp Range: T6 Rated -30 C to 70 C
Beam Angle: N/A
Color Temp: 4100K-
Mounting: Bracket Standard - Pendant Optional
Wiring Hub: 1/2 inch threaded
*Wattage totals are lamps only and may vary with different lamps.
