EPL-MJ-15W-LED-C-R-1227-CM - Explosion Proof LED Indicator Warning Light | Ratings/Approvals |
Listing: NRTL Listed to United States, Canada | Class I, Divisions 1 & 2, Groups C and D |
Lamp Technology: LED | Class II, Divisions 1 & 2, Groups E, F and G |
Dimensions: 6.22"-OD x 13.5"-H | Class III, Divisions 1 & 2 |
Weight: 10 lb | NRTL Certified to UL 844 Ed. 13 |
Voltage: 120-277V AC, 50/60Hz | NRTL Certified to UL 1598 |
Total Watts: 15W | NRTL Certified to C22.2 No. 137 Rev 2009 |
Total Lumens: 2,250 lms | NRTL Certified to C22.2 No. 250.0 |
Luminous Efficacy: 150 Lm/w | NRTL Certified to C22.2 No. 30-M-1986 Rev 2012 |
Lamp Life:Â 75,000+ Hours | IEC 60529 Tested |
LED Color: Red, Green, Blue, Amber, Purple, White 5000K, White 4500K, White 4000K, White 3500K or White 3000K | IP67 Rated Waterproof |
Color Rendering Index: >80 CRI | LEL Approved |
Lamp Type: Integrated LED | Replacement for Metal Halide, HPS, Mercury Vapor, Halogen, CFL and Incandescent Lamps |
Lamp Base: N/A | Pyramid Light Distribution |
Replacement Lamp: - | Field Serviceable |
Beam Angle: 360° | Warning System Indicator Light |
Lighting Configuration: Flood Pattern | Â |
NEMA Type (Lighting): 7H x 7V | Â |
IES Classification: Type VS | Â |
Longitudinal Classification: Very Short | Â |
Cutoff Classification: Non-Cutoff | Â |
CIE Type: Semi-Direct | Â |
BUG Rating: B1-U4-G2 | Â |
Power Efficiency: >95% | Â |
Power Factor: 0.959 | Â |
Amps: 0.125 A @ 120 V, 0.073 A @ 208 V, 0.068 A @ 220 V, 0.063 A @ 240 V, 0.055 A @ 277 V | Â |
Ambient Operating Temp Range: -50°C to +65°C |  |
Operating Temp Rating: T5 | Â |
Housing Material: Copper Free Cast Aluminum (Non-Sparking) | |
Housing Finish: Epoxy Powder Coated - Red | Special Orders - Requirements |
Lens Material: Hardened Borosilicate Glass | |
Gasket Material: Silicone | |
Mounting: Ceiling Mount - Other Mounts Available | |
Wiring: Internal Wiring Junction Box | |
Wiring Hub: (1) 3/4" NPT |

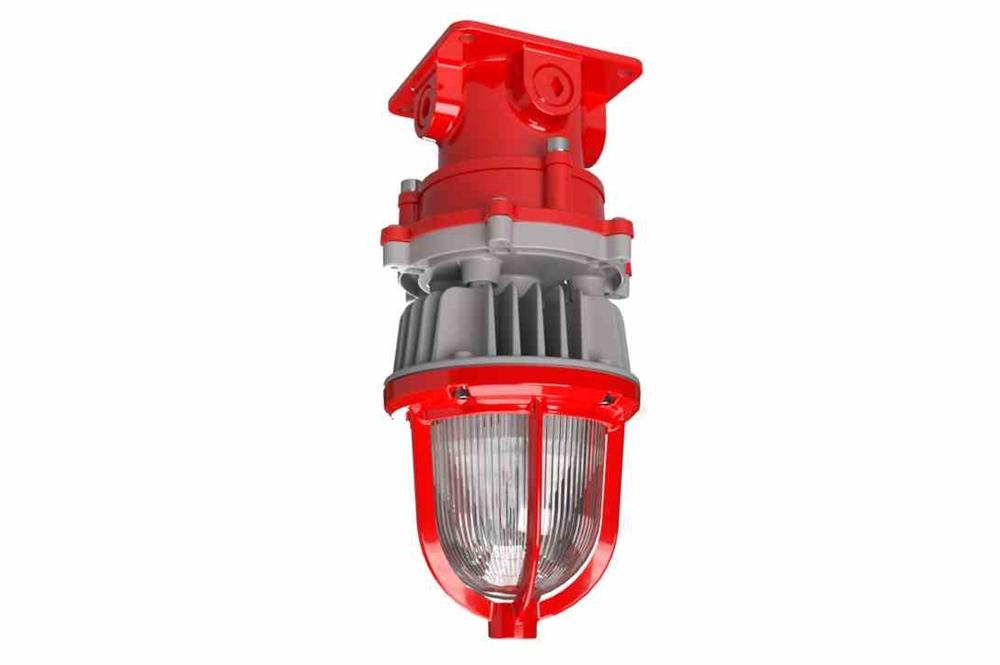

The EPL-MJ-15W-LED-C-R-1227-CM from Larson Electronics is an Explosion Proof LED Indicator Light that provides operators with a powerful alternative to traditional hazardous location luminaries, including metal halide, high pressure sodium, mercury vapor, halogen, CFL and incandescent lamps. This 15-watt, steady burn LED unit offers 2,250 lumens, carries an IP67 waterproof rating, features a red colored housing, and is available in a variety of lamp colors. Compatible with ceiling mounting installations, the mason jar style fixture is field serviceable and features pyramid light distribution that closely resembles traditional bulbs. The EPL-MJ-15W-LED-C-R-1227-CM are designed for use in warning systems and can be used with emergency battery backups. The EPL-MJ-15W-LED-C-R-1227-CM is a Class I, Division 1 & 2 and Class II, Division 1 & 2 explosion proof light fixture that is designed for energy efficient and superior illumination in combustible environments. This 15-watt mason jar style fixture offers 2,250 lumens of high quality light. Color options for the LED light includes: red, green, blue, amber, purple, white 5000K, white 4500K, white 4000K, white 3500K or white 3000K. This compact fixture is a suitable replacement for metal halide, high pressure sodium, mercury vapor, halogen, CFL and incandescent lights. The LED unit features a pyramid configuration to ensure complete light distribution that closely represents light output of traditional bulbs (unlike other LED lights that utilize a flat board causing light to be pushed directly downwards). This solution promotes vertical lighting and reduces the limitations associated with directional lighting. We can add a metal reflector at an additional cost. This lighting solution for explosive sites is IP67 rated, dust-proof and protected against high pressure jets and temporary submersion. The non-sparking housing is red in color and is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronic components. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. LED Drivers: Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of an electronic LED driver. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic driver allows the EPL-MJ-15W-LED-C-R-1227-CM to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights. Field Serviceability: This explosion proof LED light fixture is field serviceable. All major internal components can be purchased from Larson Electronics and installed by a licensed electrician with basic tools. With most explosion proof fixtures, the fixture must be returned to the manufacturer for repair work, which presents downtime and long turn around times for repair work. Larson Electronics addresses this issue with the EPL-MJ series with field serviceability, allowing operators to perform service work without having to return the fixture to the manufacturer in the event of damage or failure. Function: The EPL-MJ-15W-LED-C-R-1227-CM is an indicator light intended for use with warning systems as opposed to standard illumination applications. In other words, when this light comes on in the field, it means that something is wrong or needs attention. This unit's red housing helps it to stand out as a warning light amongst other standard illumination fixtures. This indicator light is compatible with emergency battery backup systems (not included). Voltage: The light is universal voltage capable and can be operated with 120-277 V AC, 50/60 Hz. Mount: This explosion proof mason jar style LED light fixture comes standard with ceiling mounting features, which cater to installations that hang from the ceiling. Several mounting options including wall, ceiling, angled wall, angled stanchion, and top hat/pan adapter mounts for replacing existing light fixtures can be ordered separately. Suggested Applications: Hazardous locations, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants and more. |
