Larson Explosion Proof Retrofit Kit for LED Light - (2) Transformers - 5' 16/3 SOOW Line-in Cord - 220V to 24V Inline Step Down Conversion

Larson ElectronicsSKU: PL3-EPL-PM-100LED-220X24I-xx-SP3415-KT
filler

Prix:
Prix réduit$7,186.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please email us at info@purilite.ca to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

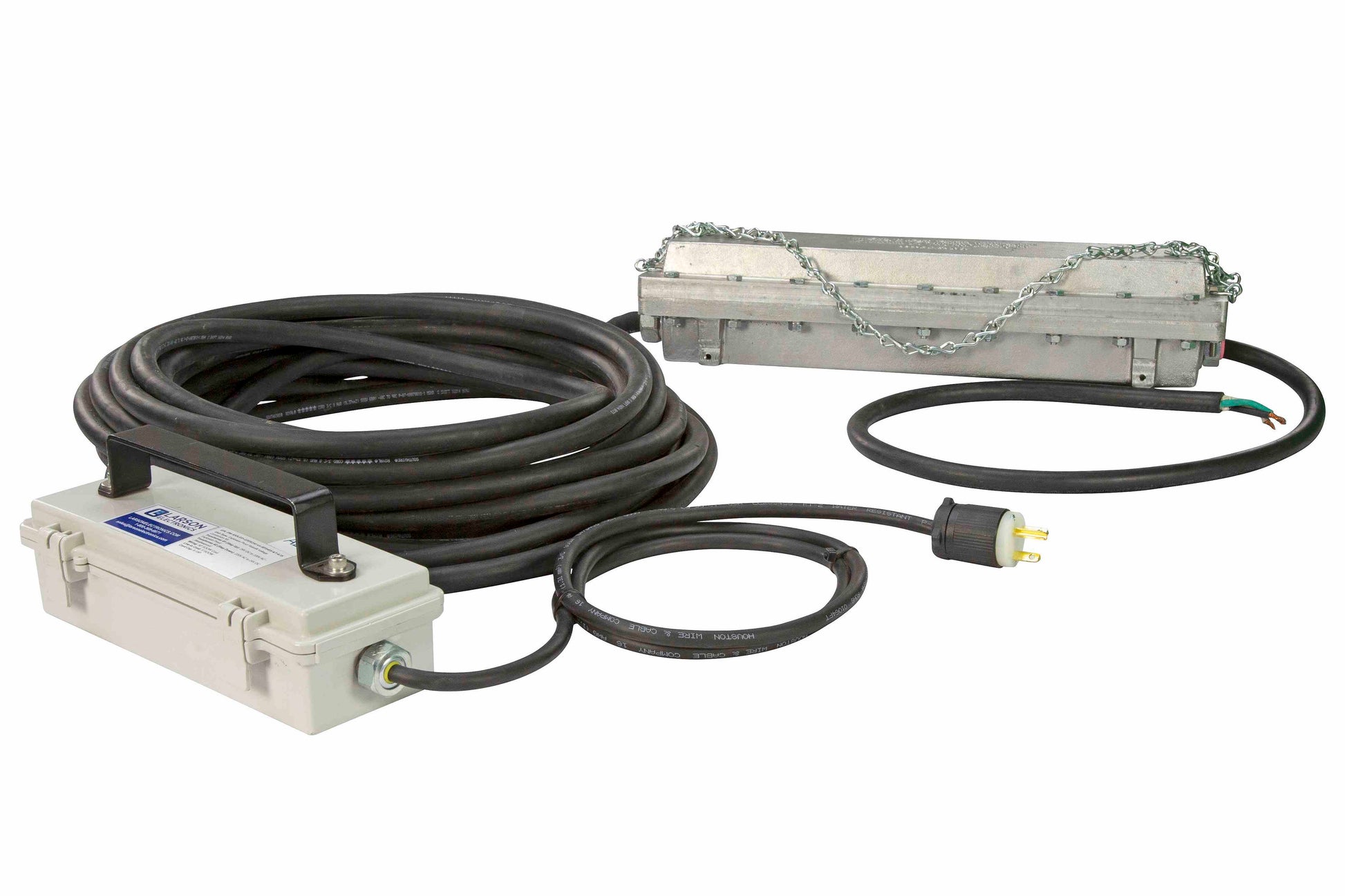

The EPL-PM-100LED-220X24I-xx-SP3415-KT from Larson Electronics is an Explosion Proof Retrofit Kit for LED Lights used in combustible work sites. This conversion kit includes an explosion proof step-up transformer (24V DC to 220V DC), a weatherproof step-down transformer (220V AC to 24V DC) and 5' of 16/3 SOOW line-in cord with a general-area cord cap. The explosion proof step-up transformer mounts onto the A-frame of the explosion proof LED light.
The EPL-PM-100LED-220X24I-xx-SP3415-KT retrofit kit is designed to convert power for explosion proof LED lights that operate on 220V AC to in-line 24V DC, via two transformers. The first explosion proof transformer steps up 24V DC to 220V AC. This step-up transformer mounts directly to the A-frame of the explosion proof LED light. A 50' 12/3 SOOW cord connects the first explosion proof transformer to the second weatherproof transformer. The second transformer is a weatherproof unit that steps down 220V AC to 24V DC. Operators provide power to the second transformer using an included 5' of 16/3 SOOW cord with a 220V cord cap.
This voltage conversion kit maintains low voltage power at the LED light side of the system, where the unit requires protection from combustible compounds. The solution ensures compliance with safety requirements associated with low voltage in-line equipment in explosive environments.
L6-15 Twist Lock Plug
UK BS1363 Straight Blade Plug
Intl Schuko 2-Pin Plug
Flying Leads / Pigtail Wires
Wiring:
This retrofit kit is equipped with 50` of 12/3 chemical and abrasion resistant SOOW cord leading up to the encapsulated step down transformer, and 5` of 12/3 SOOW cable on the input side of the transformer that is fitted with an industrial grade 220V cord cap for easy connection to common wall outlets.
Plug:
Plug options include standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
PLEASE NOTE:
The cord cap on this unit is outdoor rated but is NOT explosion proof rated. Electrical connections must be made outside the hazardous environment.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Unit Type: Explosion Proof Retrofit Voltage Conversion Kit
Dimensions: -
Weight: -
Transformer #1 (Step Up): 24V DC to 220V AC - Explosion Proof
Mount for Transformer #1: Mounting Plate to A-frame of EXP LED Light
Transformer #2 (Step Down): 220V AC to 24V DC - Weatherproof
Wiring: 50' 12/3 SOOW Cord
Line-in Cord: 5' 16/3 SOOW w/ 220V Cord Cap
Cord Cap Options: 6.15, L6.15, BS1363, Schuko or Pigtail
