Portable Explosion Proof Power Supply - Single 24V DC C1D1 Outlet - Rechargeable 200ah Battery

LARSON ELECTRONICSSKU: PL3-EPL-RPS-24V-1X-200AH
filler

Prix:
Prix réduit$36,288.00

Description

Specifications / Additional Information
EPL-RPS-24V-1X-200AH Explosion Proof Power Supply Features/Ratings
Line-in Wiring: 25` 16/3 SOOW Explosion Proof Plug Class 1 Division 1 Explosion Proof
Line-in Voltage: 120V AC or 220V AC 2023, Class 1 Div 1 Twist Lock Receptacle
Line-Out: (1) 2023 C1D1 Twist Lock Receptacle 20 Amp Primary Rating
Line-Out Voltage: 24V DCReceptacle
Dimensions: 30€-H x 14€-D x 24€- W
Weight: 250 lbs
Mounting: Portable Dolly Cart with Wheels
Ratings: Class 1 Division 1 - Explosion Proof
Battery: 200ah Sealed Lead Acid
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

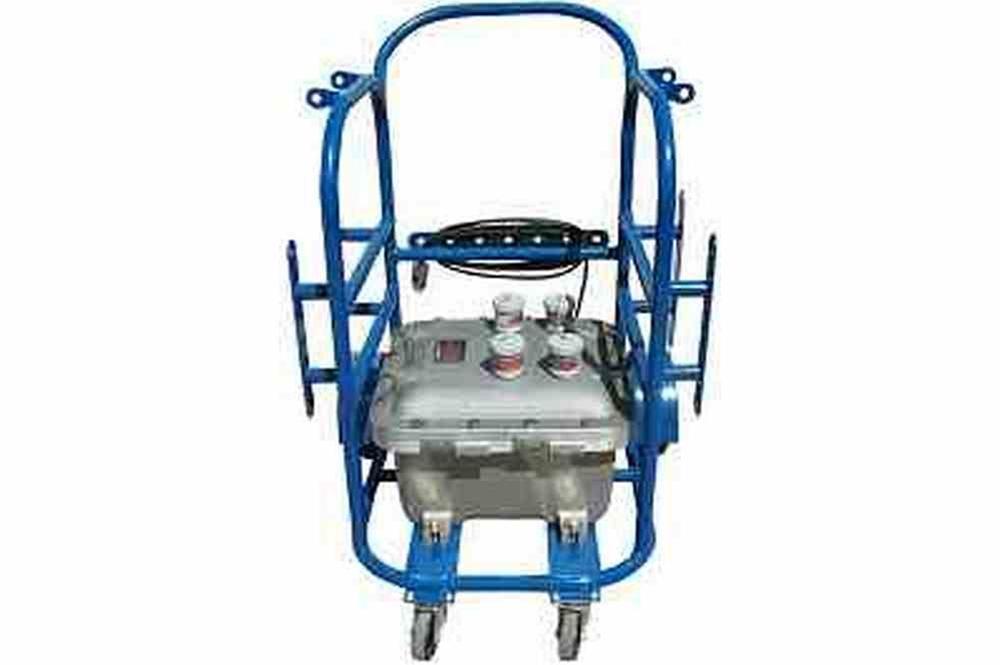

Made in the USA The Larson Electronics EPL-RPS-24V-1X-200AH explosion proof power supply enables operators to power low voltage LED lights via a single Class 1 and 2, Division 1 and 2 receptacle. Once the encapsulated 200ah sealed lead acid battery is depleted, operators can plug this unit into an explosion proof or standard high voltage outlet to charge the unit overnight within the hazardous location.  When paired with Larson Electronics€™ EHL-LED explosion proof LED hand lamps, operators can run one hand lamp for 42 hours on a single full charge. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The EPL-RPS-24V-1X-200AH explosion proof portable power supply from Larson Electronics is built to provide operators in hazardous locations with a method of power low voltage hand lamps. The output voltage is factory configured for 24V DC. This unit includes one explosion proof receptacle rated at 20 amps. This compact power distribution system is designed for portability and convenience as well as durability and is mounted to a wheeled, non-sparking aluminum frame for added protection.
The output side is equipped with one 2023, Class 1, Division 1 receptacle, designed to accept a twist lock plug like our EPP-15A and EPP-20A explosion proof plugs. The explosion proof enclosure contains two 100ah AGM batteries and charger/maintainer systems. This explosion proof battery system comes standard with a 25 foot, 16/3 SOOW cord terminated with an amp explosion proof male plug. The battery charger is factory configured to operate on 120V AC 50/60 Hz or 220V AC 50/60 Hz (one voltage only, not a range). The EPL-RPS-24V-1X-200AH is designed to be charged within Class 1 Division 1 classified areas.   *PLEASE NOTE: and  LAMPS SOLD SEPARATELY* Larson Electronics.com can build transformers to your specifications. If this model does not meet your needs, please contact us at 1-800-369-6671 or .
