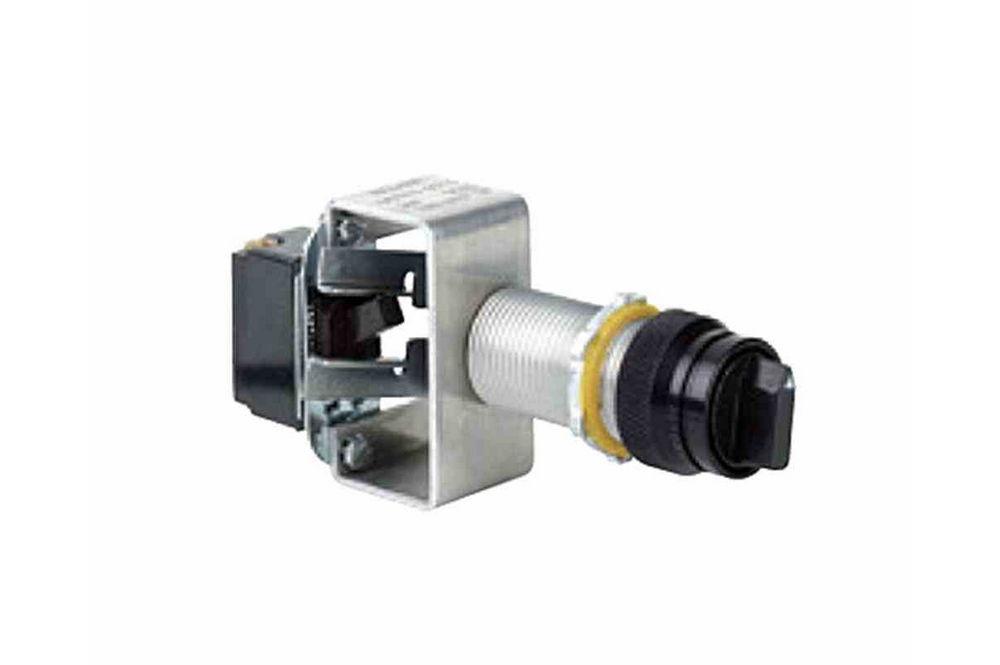

Explosion Proof Selector Switch - 600V AC - 3-position Switch - Short Barrel - 1/0/1 Nameplate

LARSON ELECTRONICSSKU: PL3-EPL-SLSW-3P-1.0.1
filler

Prix:
Prix réduit$480.00

Description

Specifications / Additional Information
EPL-SLSW-3P-1.0.1 Explosion Proof Selector Switch Ratings/Approvals
Unit Type: Explosion Proof Selector Switch Class I, Divisions 1 & 2 Groups C,D
Dimensions: 4" - L, 1.75" - Diameter Class I, Zones 1 & 2 Groups llB,llA
Weight: 2 lbs Class II, Divisions 1 & 2 Groups E,F,G
Voltage Rating: 600V AC Class III
Amps: 10A @ 120-600V AC, 2.5A @ 125/250V DC NEMA 3, 4, 4X, 7 (B,C,D) 9 (E,F,G)
Positions: 3 (Left, Center, Right)
Operation: Maintained Switch
Switch Type: SPST
Operating Temp: -50°C to +60°C Toll Free: 1-800-369-6671
Materials: Aluminum and Stainless Steel Intl: 1-214-616-6180
Contact Configuration: 1NO, 1NC
Nameplate Marking: 1/0/1
' Product Overview '
The EPL-SLSW-3P-1.0.1 from Larson Electronics is an Explosion Proof Selector Switch that is suitable for preventing the ignition of external, flammable atmospheres in hazardous locations. This 600V-rated unit features a short barrel design with maintained operation and supports three positions (left, center, right). The explosion proof device comes with a 1/0/1 nameplate marking and is designed for 1/2" thick walls. The EPL-SLSW-3P-1.0.1 is rated for Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III facilities. The maintained contact switch comes with a maximum rating of 600V AC and features a total of three positions (left, center, right). A 1/0/1 nameplate marking ensures visibility and reduces human error during operation. For protection in hazardous locations, the explosion proof device is constructed of aluminum and stainless steel. During installation, this selector switch is compatible with wall thickness measurements of 1/2". Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.
