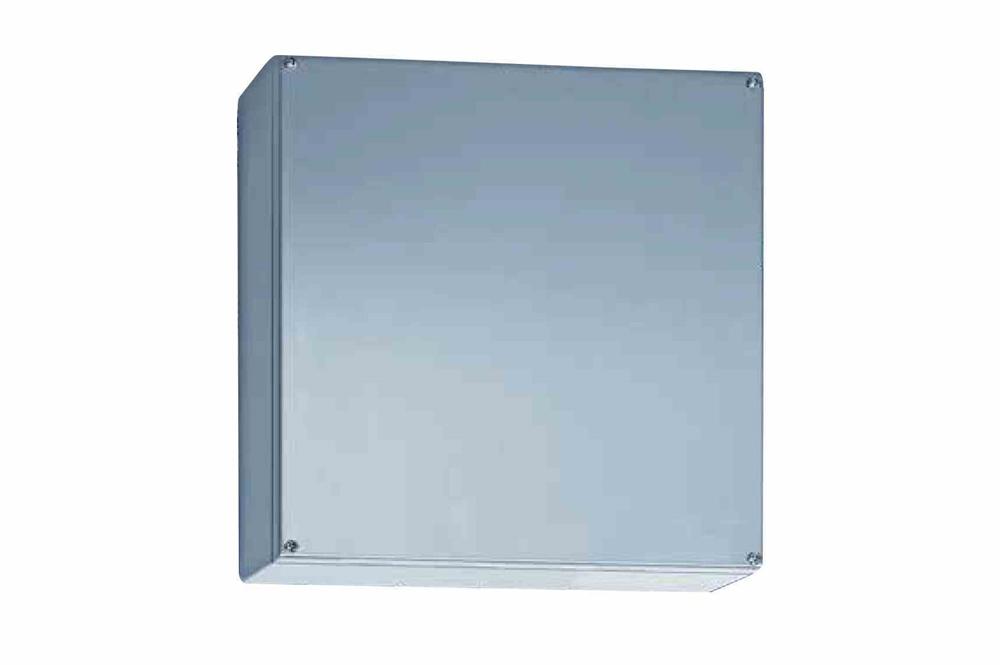

Hazardous Location Terminal Strip Junction Box - C1D2 - 460V - (6) Terminals - Stainless Steel - (2) Hubs

LARSON ELECTRONICSSKU: PL3-EPL-TWH-SS-8.12.6-N4X-460V-6XTB.32A-2X0.75S
filler

Prix:
Prix réduit$1,830.00

Description

Specifications / Additional Information
EPL-TWH-SS-8.12.6-N4X-460V-6XTB.32A-2X0.75S Hazardous Location Terminal Strip Junction Box Features/Ratings
Listing: NRTL Listed for United States and Canada; ATEX/IECEx Rated Class I, Division 2, Groups A,B,C,D
Dimensions: 8" x 12" x 6" Class I, Zones 1 & 2, Groups IIA,IIB,IIC
Weight: - Class II, Division 2, Groups E,F,G
Voltage: 460V AC Class III, Divisions 1 & 2
Terminal Blocks: (6) 32A ATEX/IECEx Rated
Configuration/Type: Feed Through Screw Terminal Blocks Ex e IIC Gb, Ex i IIC Gb
Ambient Operating Temp Range: - Ex tb IIIC Db IP66
Body and Cover Material: 316 Stainless Steel Ex tb / Zone 21&22 AEx tb IIIC
Cover Type: Hinge T80C /T100C/T130C Db IP66
Enclosure Finish: Brushed NEMA Type 3, 4 & 4X
Mounting: Wall/Surface Mount via Flanged Backplate
Earth Connection: 1/4" External
Cable Glands: Not Included
Wiring: 10-26 AWG
Hubs: (2) 1/2" NPT Hubs
Hub Location: (2) South Side
Color: Metallic
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics EPL-TWH-SS-8.12.6-N4X-460V-6XTB.32A-2X0.75S Hazardous Location Terminal Strip Junction Box protects wiring and electrical components in flammable environments. Equipped with six, 32-amp feed through screw terminal blocks, the unit operates on 460V AC. The explosion proof device features a 316 stainless steel housing. The EPL-TWH-SS-8.12.6-N4X-460V-6XTB.32A-2X0.75S is designed for electrical connections in combustible facilities. This junction box contains six 32-amp feed through screw terminal blocks. Equipped with a hinged cover, the Class I, Division 2 rated device measures 8" x 12" x 6". A 1/4" external earth protection is available on the unit. The hazardous location terminal strip box is constructed of 316 stainless steel and comes equipped with a hinge cover. Hubs: The EPL-TWH-SS-8.12.6-N4X-460V-6XTB.32A-2X0.75S contains two, 1/2" NPT hubs at the south side of the junction box (cable glands are not included and must be purchased separately). The unit accepts 10-26 AWG for the 32-amp terminal blocks. Mount: Operators are provided access to a flanged backplate for easy mounting on walls or surfaces. Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities and any other hazardous location where an explosion proof enclosure is needed.
