Explosion Proof Wall Pack Flood Light - 150 Watt High Pressure Sodium - Muilti voltage - Class 1 Div

LARSON ELECTRONICSSKU: PL3-EPL-WPHPS-150
filler

Prix:
Prix réduit$2,238.00

Description

Specifications / Additional Information
EPL-WPHPS-150 Ratings
Lamp: High Pressure Sodium CSA approved for hazardous locations (LR25428)
Watts: 150 Class 1 Division 2
Voltage: 120-277V - 50/60Hz Class 1 Zone 2
Wiring: Multi tap- 2- 1/2" Conduit Entries, 1- 1/2" Rear Knockout
Dimensions: 12 1/8"-H 14"-W 5 7/16"-D
Mounting: Wall Mount
Maximum Ambient Temp: 25C Toll Free: 1-800-369-6671
Temperature Rating: T2C Intl: 1-903-270-1187
E-mail:
' Product Overview '

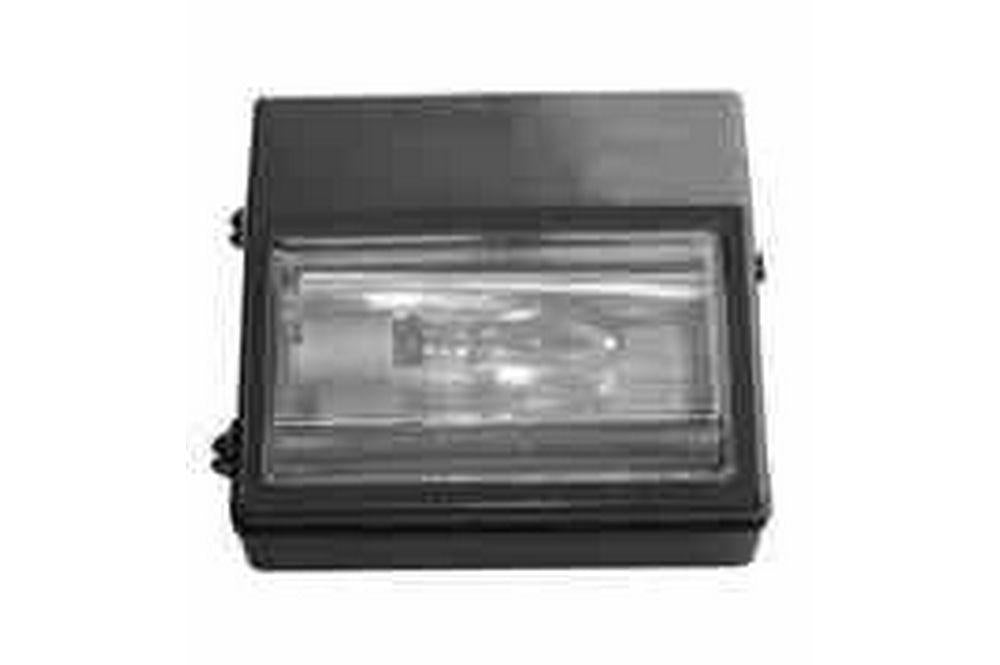

MADEIN THE USA The Larson Electronics EPL-WPHPS-150 Explosion Proof Wall Pack Flood Light is designed for maximum effciency with a 150 watt high pressure sodium bulb for high output and long life. This unit has a baked on bronze finish for a rugged yet attractive design and is Class 1 Division 2 rated. Designed as a wall pack light, this 150 Watt high pressure sodium light incorporates a side hinged door that allows easy access to the lamps and wiring components for servcing and maintenance. The door has a built in stop which limits the door from opening past 90 degrees to prevent door damage and a prismatic tempered glass lens which gives a soft diffused light output and protects the lamp from breakage. Installation is simple a simple wall mount design and the the fixture is furnished with two 1/2" conduit entries and a 1/2" rear knockout to allow for wiring through the rear of the fixture.
EPL-WPHPS-150 Dimensions
  The closing mechanism features a unique heavy duty stainless steel latch that secures the cover assembly while allowing the lamps to be replaced within the fixture without the use of tools. The mogul base socket is made is of a heavy duty porcelain design with heavy gauge brass and nickel plated double grip screw shell and spring loaded center contacts. This Wall Pack light is available in configurations for operation with 120 VAC to 277 VAC @50/60Hz current. The EPL-WPHPS-150 contains an aluminum reflector assembly which is designed for maximum efficiency and output. The lense is made of a prismatic tempered glass which produces a soft diffused light output and reduces glare. The lens is both thermal shock and impact resistant and a baked epoxy finish with a bronze tone provides an attractive finish as well as protection against rust and corrosion.
