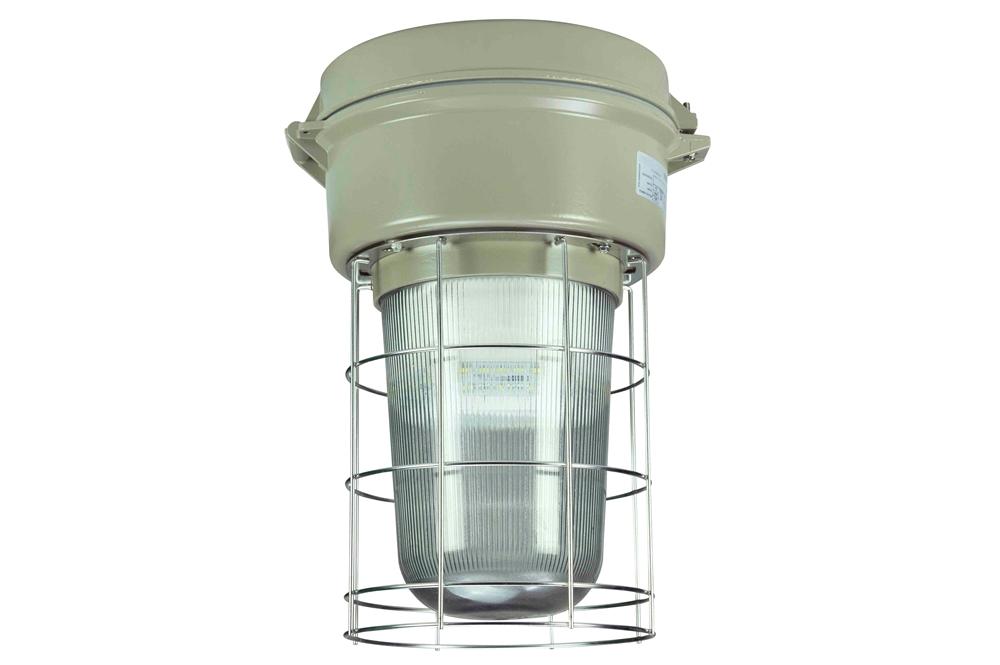

Explosion Proof LED High Bay Light - Equivalent to 175 Watt Metal Halide - C2D1 / C1D2

LARSON ELECTRONICSSKU: PL3-EPLC2-HHB-175W-LED
filler

Prix:
Prix réduit$3,678.00

Description

Specifications / Additional Information
EPLC2-HHB-175W-LED - C2D1 High Bay LED Light Ratings/Approvals
Listing: United States - Canada Listed for United States and Canada
Lamp Type: LED Class I, Division 2, Groups A,B,C,D
Ceiling Mount Dimensions: 13.67"-OD x 9.33"-H Class I, Zone 2
Pendant Mount Dimensions: 13.67"-OD x 9.33"-H Class II, Divisions 1 & 2, Groups E,F,G
Weight: 23 lbs Certified to UL 844
Voltage: 100-277 Volts AC, 50/60Hz; optional 347/480V AC 50/60 Hz Certified to UL 8750
Total Watts: 90W Certified to C22.2 No. 137
Lumens: 11,200 IP66 Waterproof
Luminous Efficacy: 124.44 Lm/W NEMA 4X
Lamp Life: 55,000+ Hours T4A Temperature Rating
Color Temp: 5000K Approved for Confined Spaces
Color Rendering Index: 70 CRI No Glass - Group G Food Appropriate
Lighting Configuration: Flood Pattern
Power Factor: 0.9
Ambient Operating Temp Range: -40° C to +55°C
Operating Temp Rating: T4A
Housing Material: Copper Free Cast Aluminum
Housing Finish: Powder Coated
Lens Material: Polycarbonate Lens Toll Free: 1-800-369-6671
Mounting: Ceiling, Wall, Pendant, 25° Stanchion, 90° Stanchion Intl: 1-903-270-1187
Wiring Hub: 3/4" NPT (1-1/2" for Stanchion) E-mail:
' Product Overview '
Made in the USA The Larson Electronics EPLC2-HHB-175W-LED 90 Watt Explosion Proof Light is approved Class I Division 2, Class II Divisions 1 & 2, and Class III. This LED hazardous area light is designed for installation in locations where flammable gases, vapors and liquids, combustible dusts, and/or ignitable fibers and flyings exist or have the potential to exist as well as NEMA 3 and 4X location where wind, water, snow/ice, or high ambients can be expected. Weatherproof and listed for marine use, this explosion proof LED fixture is the ideal choice for range of industrial and marine applications including those requiring installation in enclosed spaces. The multipurpose floodlight design of this fixture makes it a popular choice for a range of applications regardless of whether the locations are designated hazardous or not. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The EPLC2-HHB-175W-LED hazardous area light is the perfect upgrade replacement for traditional 175 watt metal halide lamps. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied. With LED lighting technology, there is no warm up time or cool down time before re-striking. Rather, LEDs provide instant illumination when powered on, making them more dependable and convenient than halide or incandescent lighting methods. In addition to being weatherproof and suitable for extreme temperatures, the EPLC2-HHB-175W-LED light delivers a powerful 11,200 lumens and high chromaticity for excellent color rendering while drawing only 90 watts. Designed with versatility in mind, this explosion proof hazardous area light runs on 120-277V AC 50/60Hz with the option of 347/480V AC 50/60 Hz.
By nature, LED light sources run significantly cooler than metal halide lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional halide lighting. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic driver allows the EPLC2-HHB-175W-LED to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights. As a result, the Larson Electronics Explosion Proof Light has a rated service life of 50,000 hours.
Energy Consumption Comparison
Metal Halide LED
Wattage 175 watts 90 watts
Amp Draw @ 120V AC 1.58 amps 0.75 amps
Amp Draw @ 220V AC 0.86 amps 0.41 amps
Amp Draw @ 240V AC 0.79 amps 0.38 amps
Amp Draw @ 277V AC 0.69 amps 0.33 amps
Amp Draw @ 12V DC 15.75 amps 7.5 amps
Amp Draw @ 24V DC 7.88 amps 3.75 amps
Lamp Life Expectancy 20,000 hours 55,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $99.34 $47.31
Each LED light fixture has the potential to save $50.00+ per year in electricity alone, not including maintenance costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
The EPLC2-HHB-175W-LED explosion proof hazardous area lamp is housed within a lightweight, high strength copper-free aluminum body. Protecting the LED lamp is a flat polycarbonate lens. The housing has been finished with an epoxy powder, and all exposed hardware is constructed of stainless steel for added corrosion prevention and durability. The LED assembly is connected with a solderless board connection for increased vibration resistants. The Larson Electronics EPLC2-HHB-175W-LED is offered in wall, ceiling, pendant or stanchion mount. Wiring is through a convenient 3/4" NPT conduit entrance (1-1/2" for stanchion mounts), and a simple hinge arrangement makes for faster and easier installation by permitting “hands-free” wiring.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MH. 5. Retains 70% lumen output after 55,000 operating hours. 6. Powder coated aluminum fixture body. 7. Pendant and Swivel Bracket mount included 8. Low profile - Light weight 9. 11,200 Lumen output from only 90 watts 1. 55,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
