Explosion Proof 212 Watt Adjustable Pole Top Mount LED Light Fixture - Slip Fitter Yoke - C2D1/C1D2
Explosion Proof 212 Watt Adjustable Pole Top Mount LED Light Fixture - Slip Fitter Yoke - C2D1/C1D2
| EPLC2-PT-212W-LED Pole Top Slip Fit Mount | Ratings |
| Lamp Type: LED | T5 Temperature Rating |
| Dimensions: 16" diameter | Class 1 Division 2 Groups A, B, C, D |
| Total Watts: 212W | Class 2 Division 1&2 Groups E, F, G |
| Lumens: 26,500 | Class 3 Division 1&2 |
| Voltage: 120-277V AC 50/60Hz | CSA Certified to C22.2 No.137-M81 |
| Mounting: Pendant | cETL Certified to UL844 and C22.2 Standards |
| Housing Material: Case Aluminum | |
| Lens Material: Glass | |
| Wiring Hub: 3/4€ NPT or 5/16€Â-18 x .75€ NPT Thread | |
| Weight: 28lbs | |
| Lighting Configuration: Flood Pattern | |
| Temp Rating: T5 -40C to +65C | |
| Color Temp: 6000K, 70-CRI. | |
| Lamp Life: 60,000+ Hours |
Made in the USA
The Larson Electronics EPLC2-PT-212W-LED Pole Top Slip Fitter LED light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures.
This Class 1 Division 2, Class 2 Division 1 & 2 pole top slip fit mount explosion proof light fixture provides 26,500 lumens of high quality light while drawing only 212 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.

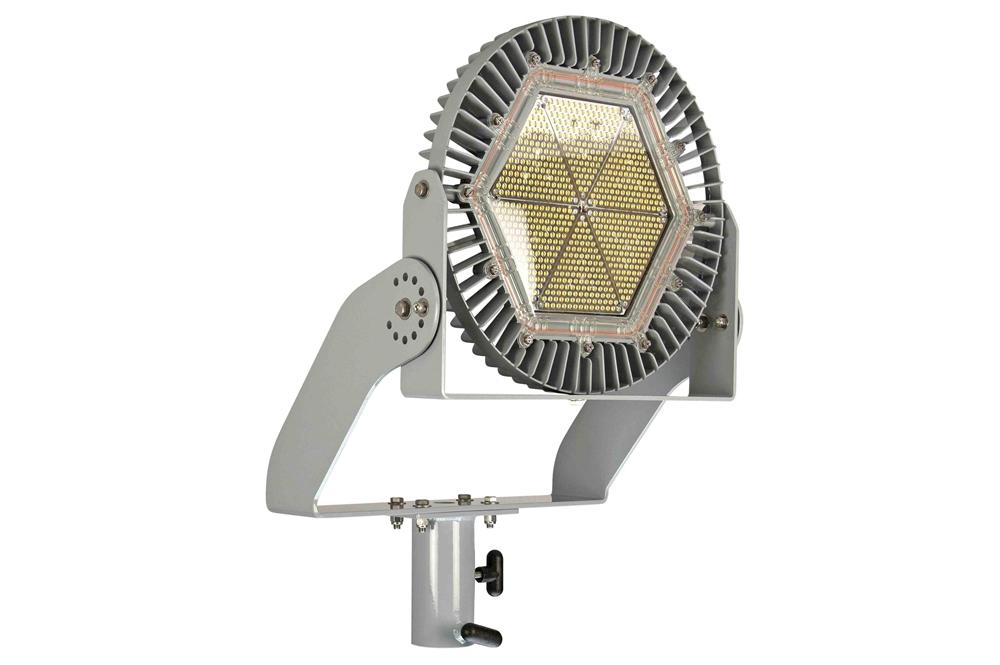

The EPLC2-PT-212W-LED pole top slip fit mount explosion proof light features an adjustable swivel bracket constructed of 3/8" aluminum that allows 270° of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to customer`s specs, enabling operators to mount this explosion proof LED light to their specific pole size. The wiring of the EPLC2-PT-212W-LED is terminated in a junction box with 3/4" threaded hub. Operators can run rigid pipe or flexible conduit to the junction box, terminating the electrical connections within.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 26,500 lumens with a color temperature of 6000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The lamp is T5 temperature rated, Design Lights Consortium approved, and the LED light head retains 80% of its lumen output after 60,000 hours of use, far longer than incandescent or fluorescent lamps.
The EPLC2-PT-212W-LED yoke mount explosion proof LED flood light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
The entire assembly is ETL listed Class 1, Divisions 2 and Class 2, Divisions 1&2, and Class 3, Divisions 1 & 2 for use in hazardous locations. The extreme durability, universal voltage capabilities, and LED longevity make this LED flood lighting system an ideal fit for frac pads, rigs, offshore, and any application that requires a Class 1 Division 1 pole top light fixture.
Mounting Notes: The EPLC2-PT-212W-LED pole top slip fit mount explosion proof light features an adjustable swivel bracket constructed of 3/8" aluminum that allows over 270° of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to customer`s specs, enabling operators to mount this explosion proof LED light to their specific pole size. For example, selecting a 2" OD mount means that the yoke mount will fit onto pipes or bull horns with a 2" OD.
|
||||
