100W C1D1 Explosion Proof LED Light on Dolly Cart - 11667 Lumens - 100' SOOW Cord w/ EPP Cord Cap

LARSON ELECTRONICSSKU: PL3-EPLCD-48-1X100RT-100
filler

Prix:
Prix réduit$7,554.00

Description

Specifications / Additional Information
EPLCD-48-1X100RT-100 - C1D1 Dolly Cart LED Light Ratings/Approvals
Listing: United States - Canada Listed for United States and Canada
Lamp Type: Cree LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: Light Head: 14"H x 16"W x 5"D Cart: 22.472"W x 57.625"H x 22.402"D Class II, Divisions 1 & 2, Groups E,F,G
Weight: 50 lbs Class III, Divisions 1 & 2
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC Certified to UL 844 Ed. 13
Total Watts: 100W Certified to UL 1598
Total Lumens: 11,667 Certified to C22.2 No. 137 Rev 2009
Luminous Efficacy: 116.67 Lm/W Certified to C22.2 No. 250.0
Lamp Life: 60,000+ Hours Certified to C22.2 No. 30-M-1986 Rev 2012
Color Temp: 5000K, 4000K, 3000K T5 Temperature Rating
Color Rendering Index: >75 CRI Paint Spray Booth Approved
Beam Angle: 60° or 125° IEC 60529 Tested
Lighting Configuration: Flood Pattern IP67 Rated Waterproof
Power Efficiency: >95% LEL Approved
Power Factor: 0.992 Multiple Driver Banks
Ambient Operating Temp Range: -50°C to +65°C 80% Lumen Retention after 60,000 Hours
Operating Temp Rating: T5 Factory Sealed Light Fixture
Housing Material: Copper Free Cast Aluminum 3.5kV Surge Protection (NTC Circuit)
Housing Finish: Epoxy Powder Coated - Grey Aluminum Dolly Cart w/ 2 Rubber Wheels
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Portable Dolly Cart w/ Wheels
Wiring: 100` 16/3 SOOW w/ Explosion Proof Cord Cap
Cord Cap Options: 5-15P, 5-20P, 6-20P
Wiring Hub: 3/4" NPT

' Product Overview '

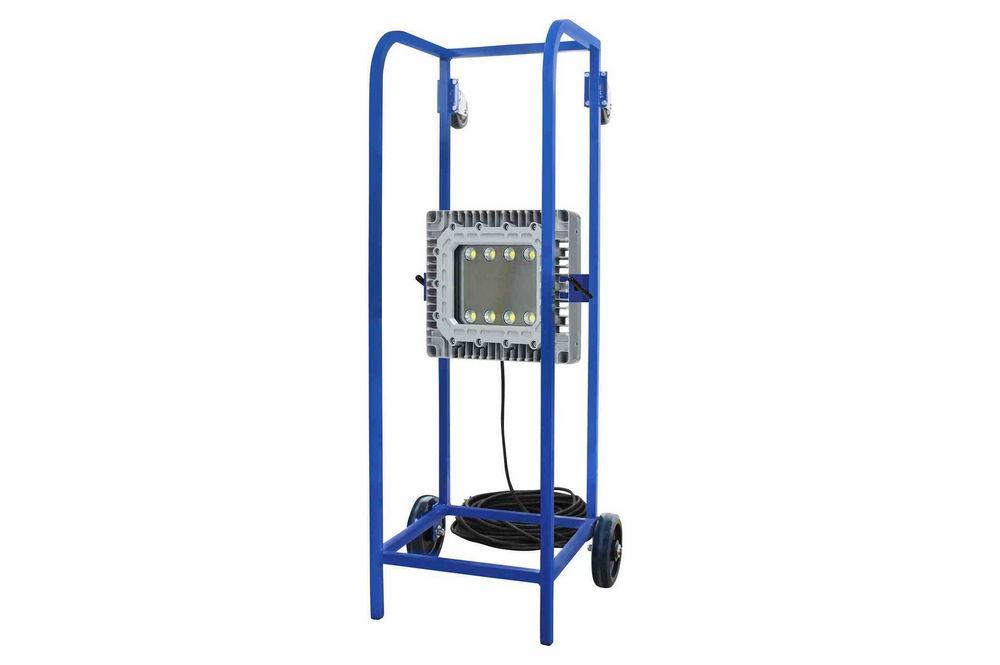

The Larson Electronics EPLCD-48-1X100RT-100 Explosion Proof Dolly Cart LED light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older incandescent, metal halide and high pressure sodium lights. This explosion proof light and dolly cart offers an excellent lighting solution for operators who need illumination in unusual areas where traditional fixed mount lighting is obstructed or cannot effectively reach. Light Features: This Class I Divisions 1 & 2, Class II Divisions 1 & 2 explosion proof light fixture provides 11,667 of high quality light while drawing only 100 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
Click Photo to Enlarge
The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
Energy Consumption Comparison
Metal Halide LED
Wattage 250 watts 100 watts
Amp Draw @ 120V AC 2.38 amps .83 amps
Amp Draw @ 220V AC 1.30 amps 0.45 amps
Amp Draw @ 240V AC 1.19 amps 0.42 amps
Amp Draw @ 277V AC 1.03 amps 0.36 amps
Amp Draw @ 12V DC 23.75 amps 8.3 amps
Amp Draw @ 24V DC 11.88 amps 4.17 amps
Lamp Life Expectancy 20,000 hours 50,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $149.80 $52.56
Each LED light fixture has the potential to save ~$100.00+ per year in electricty alone, not including maintainence costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
This LED light produces 11,667 lumens with a color temperature of 5000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4000K natural white color temperature options (longer lead times may apply for non-standard temperatures). The EPLCD-48-1X100RT-100 is a dolly cart mounted fixture.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof dolly cart light is equipped with 100 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Wiring is connnected via a servicable access hub on the back of the fixture. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. Mounting: The EPLCD-48-1X100RT-100 is mounted on a convenient and portable dolly cart that offers operators the ability to quickly deploy the light in places where traditional lighting may not be an option. The dolly cart is constructed from lightweight yet durable aluminum tubing that is powder coated for corrosion resistance and finished in a glossy blue color for pleasing aesthetics. The dolly cart on the EPLCD-48-1X100RT-100 allows the light head to be rotated in any direction that the operator requires. The cart is also designed to stand either vertically or horizontally and is equipped with two rubber wheels for primary movement and transportation as well as two casters that are used when the cart is deployed horizontally for versatile and simple movement in a variety of different positions.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MH. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Dolly cart mounted for easy transportation and deployment. 8. Low profile - Light weight 9. 11,667 Lumen output from 100 watts 1. 60,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
