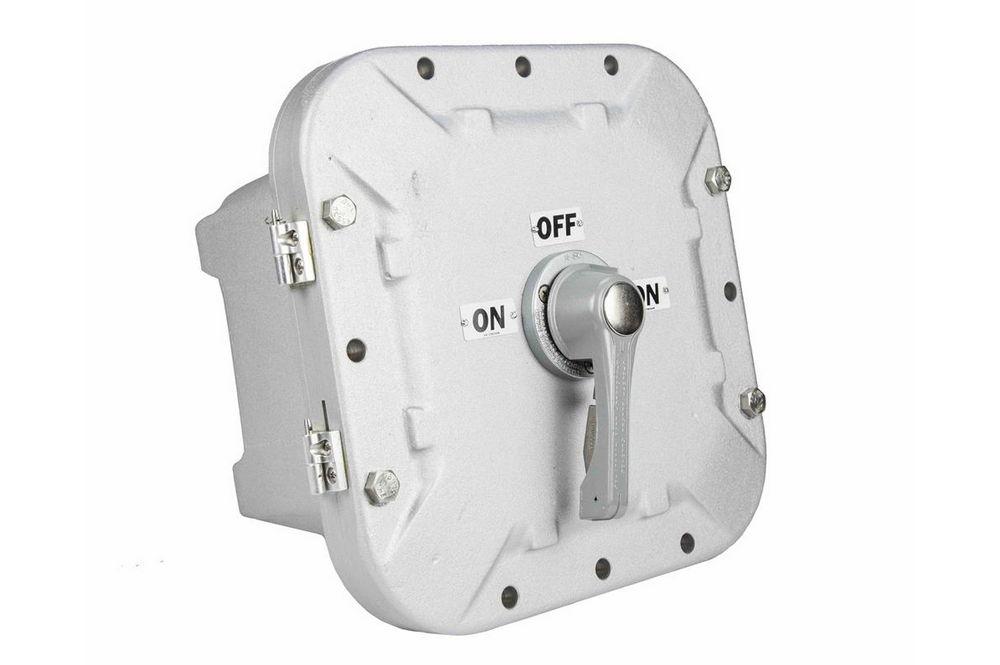

Explosion Proof Non Fused Disconnect Switch - 200 Amp - C1D1&2 - 3-Pole - (2) 1.5" NPT Hubs

LARSON ELECTRONICSSKU: PL3-EPNFDS-125A-3P-2X1.5NS
filler

Prix:
Prix réduit$15,184.00

Description

Specifications / Additional Information
EPNFDS-125A-3P-2X1.5NS Explosion Proof Disconnect Switch / Breaker Features/Ratings
Dimensions: 28.28"L x 16.28"W x 12.63"H Class I Division 1 & 2 Groups B, C & D
Weight: 70 lbs Class I Zones 1 & 2 Groups llB+ H2 & llA
Configuration: 3-Pole Class II Division 1 & 2 Groups E, F & G
Voltage Rating: 600V AC Max Class III, Divisions 1 & 2
Amps: 200 NRTL Listed to UL 1203
Fusible: No NRTL Listed to CSA C22.2 No. 30, 25
Materials: Cast Aluminum NEMA 3, 4, 4X, 7(B,C,D) 9(E,F,G)
Hardware Materials: Stainless Steel
Mounting: Surface Mount
Hub Sizes: (2) 1.5" NPT (one top one bottom)
Hub Qty: 2
Hub Locations: One on Both Top and Bottom
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
Made in the USA The Larson Electronics EPNFDS-125A-3P-2X1.5NS explosion proof 200 amp non-fused disconnect switch provides operators with a Class I and II, Divisions 1 and 2 cast aluminum enclosure that provides overcurrent and short circuit protection of service entrance, feeder or branch circuits, lighting, heating, appliance and motor circuits. This explosion proof disconnect switch features an EHD frame and has a 3-Pole configuration. The EPNFDS-125A-3P-2X1.5NS operates on a maximum of 600V AC and features one cast 1.5" conduit hub on the top and one cast 1.5" conduit hub on the bottom. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPNFDS-125A-3P-2X1.5NS explosion proof disconnect switch is made of cast aluminum and features a rectangular bolted cover design for uniform and attractive installations. The cover bolts and hinges are made from stainless steel. The external on/off lever can be locked into the "off" position with room for up to three padlocks for superior security. The internal circuit breaker handle mechanism is a sliding plate type mounted to the cover. The circuit breaker is trip free of the external handle mechanism. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
