Explosion Proof Manual Transfer Switch - 60 Amps - C1D1/C2D1 - 3P Double Throw

LARSON ELECTRONICSSKU: PL3-EPNFDS-MTS-60A-3P
filler

Prix:
Prix réduit$7,254.00

Description

Specifications / Additional Information
EPNFDS-MTS-60A-3P Explosion Proof Manual Transfer Switch Features/Ratings
Dimensions: 15.25" x 15.25" x 14.9375" Class I Divisions 1 & 2 Groups B, C & D
Weight: 41 lb Class I Zones 1 & 2 Groups llB+ H2 & llA
Configuration: 3-Pole Double Throw Class II Divisions 1 & 2 Groups E, F & G
Voltage Rating: 600V AC Max Class III, Divisions 1 & 2
Amps: 60 NRTL Listed to UL 1203
HP: 1PH - 3 HP @ 120 V AC, 5 HP @ 200 V AC, 7.5 HP @ 240 V AC; 3PH - 20 HP @ 200 V AC/208 V AC, 20 HP @ 240 V AC, 40 HP @ 480 V AC, 40 HP @ 600 V AC NRTL Listed to CSA C22.2 No. 30, 25
Fusible: No NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Materials: Copper-free Aluminum Tamb = + 60°C
Hardware Materials: Stainless Steel (Hinges, Cover Bolts) Load Break Rated Switch
Mounting: Surface Mount Special Orders - Requirements
Hub Sizes: (2) 2" NPT, (1) 1/2" NPT [North Side], (2) 2" NPT, (1) 1/2" NPT [South Side]
Wire Size: #14-4
Conduit: Drilled and Tapped Entrances Toll Free: 1-800-369-6671
Color: Natural Gray
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* E-mail:
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

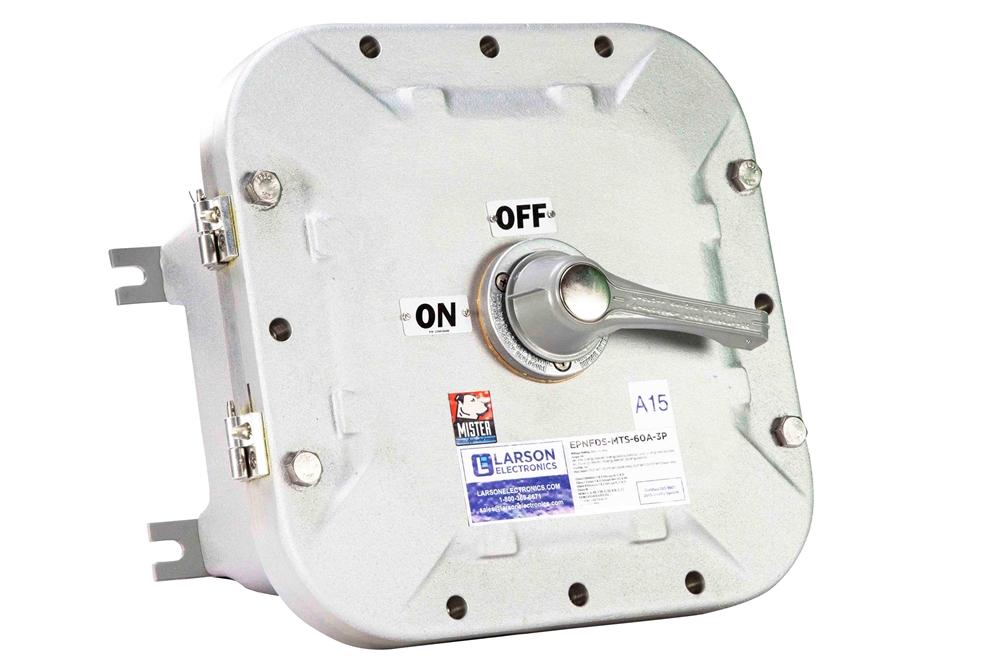

Made in the USA The EPNFDS-MTS-60A-3P from Larson Electronics is an Explosion Proof Manual Transfer Switch that allows operators to manually switch between two power sources, perform power isolation and switch loads in flammable work sites. This unit contains a 3-pole double throw configuration and is rated at 600 V AC max. Operaters are provided access to two 2" NPT hubs on top and one 0.5" NPT hub at the bottom of the NEMA-rated enclosure. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPNFDS-MTS-60A-3P is a non-fused manual transfer switch for hazardous locations, flammable work sites and combustible spaces. Equipped with a 3-pole, double throw configuration, this unit can be used to switch between two sources of power, including between line voltage and a generator. The explosion proof disconnect is non-fused and features a lockable switch to deter tampering (up to 3 locks, in ON or OFF position). This unit is made out of copper-free aluminum and features a rectangular bolted cover design for uniform and attractive installations. This unit is rated for NEMA 4X environments, making it ideal for indoor and extreme outdoor applications. Operators can access a total of six NPT hubs, with two 2" NPT and one 1/2" NPT hubs located at the north side of the enclosure, and two 2" NPT and one 1/2" NPT hubs located at the south side of the enclosure. Applications: Manual transfer switch, switching electrical loads, power isolation, emergency power systems, power management, hazardous locations, motor circuits, petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
