Explosion Proof Fixture/Extension Cord Plug - 15 Amp Rated - 15' 16/3 SOOW w/ 5-15P Cord Cap

LARSON ELECTRONICSSKU: PL3-EPP-15A-15FT-BCE
filler

Prix:
Prix réduit$384.00

Description

Specifications / Additional Information
EPP-15A-15FT-BCE Explosion Proof Plug Certifications - Compliance
Amp Rating: 15 Class 1, Div 1 & 2 Groups B,C,D
Dimensions: 2.78"-L 1.75"-W Class 2 Div 1 & 2 Group G & Coal Dust
Configuration: 3 Pole 2 Wire Class III
Suitable Cable Diameter: .538” to .639” NEMA Type 7BCD, 9G
Seals: Neoprene Plug Wire Bushing
Wiring: 15` 16/3 SOOW
Cord Cap: 5-15P

  Intl: 1-214-616-6180
Fax: 1-903-498-3364
  E-mail:
' Product Overview '

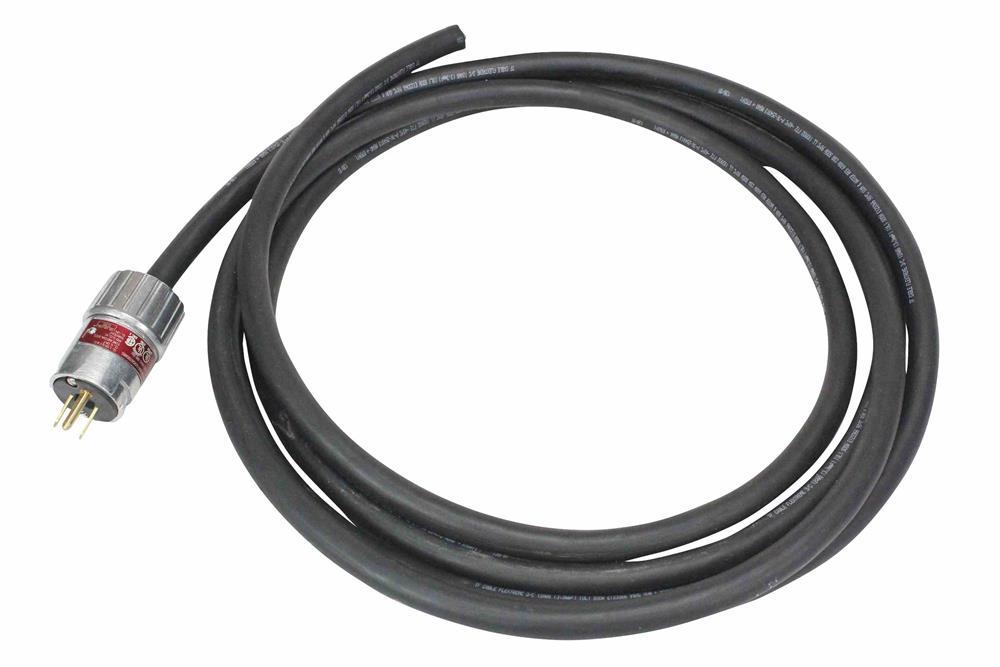

Larson Electronics EPP-15A-15FT-BCE Explosion Proof Plug with 15ft SOOW Cable with blunt cut ends. The EPP-15A-15FT-BCE explosion proof plug is rated at 15 amps. This plug must be used in 120V or 240V T style outlets, although in order to retain explosion proof safety, it must be mated to an explosion proof outlet. This plug is designed to lock into compatible twist lock receptacles by twisting the plug body until an audible click is heard, which indicates the plug is securely connected. Once locked into place this plug will not accidentally pull out. This C1D1 plug comes factory installed with 15` of 16/3 SOOW cable. This plug is watertight and ideal for applications where moisture and corrosion is a problem and well suited for use in marine and manufacturing environments. This plug is rated Class 1, Division 1 and 2 and Class 2, Division 1 and 2 and is suitable for use in areas where petrochemical vapors may be present. This explosion proof plug features non sparking aluminum construction, a longer housing for easy handling, specially designed brass pins for secure full length pin contact, and a 15 amp current rating.
Inter-Compatibility: These plugs will fit non-explosion proof standard receptacles (NEMA 5-15R / 5-20R). These plugs are are cross-interchangeable with Crouse Hind™ ENP general purpose plugs and will work with Crouse Hind™ ENR Dead Front Receptacles. Any equipment requiring these C-H plugs should work with the EPP-15A-15FT-BCE plugs. Due to possible manufacturer changes we cannot guarantee interchangeability although we have made every effort to ensure cross compatibility correctness. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Motor-Generator  Sets, Compressors, Wet areas or Locations Where Petrochemical Vapors are Present.
