Explosion Proof Plug - C1D1/ATEX Rated - 3P4W - 600V Rated - 200A NEC/CEC, 260A ATEX

LARSON ELECTRONICSSKU: PL3-EPP-PSU-200A-3P4W-S20-1.7N
filler

Prix:
Prix réduit$21,052.00

Description

Specifications / Additional Information
EPP-PSU-200A-3P4W-S20-1.7N C1D1/ATEX Rated Connector Ratings
Listing: NRTL Listed for United States, Canada and International; ATEX Rated Class I, Divisions 1 & 2 Groups C, D @ 480V AC; 60/400Hz, Circuit Breaking
Unit Type: Explosion Proof Plug with Attachment Cover Class I, Divisions 1 & 2 Groups B, C, D @ 600V AC; 60/400Hz, Circuit Breaking
Dimensions: - Class II, Division 1 Groups F, G @ 600V AC; 60/400Hz, Circuit Breaking
Weight: - AEx d IIC T6
Voltage Rating: 600V AC Rated Ex II 2 GD Ex d IIC IP 66/67 T 70°C 1000V AC, 500V DC
Configuration: 3-pole, 4-wire MIL-STD 202, Method 101, Condition D
Amp Rating: 200A for NEC/CEC, 260A for ATEX Corrosion Resistant
Materials: 6061-T6 Copper-free Aluminum Factory Sealed
Finish: Anodized
Mating Receptacle: EPO-PSU-200A-3P4W
Cable Diameter: 1.5" - 1.625"
Color: Black Toll Free: 1-800-369-6671
  Intl: 1-214-616-6180


' Product Overview '

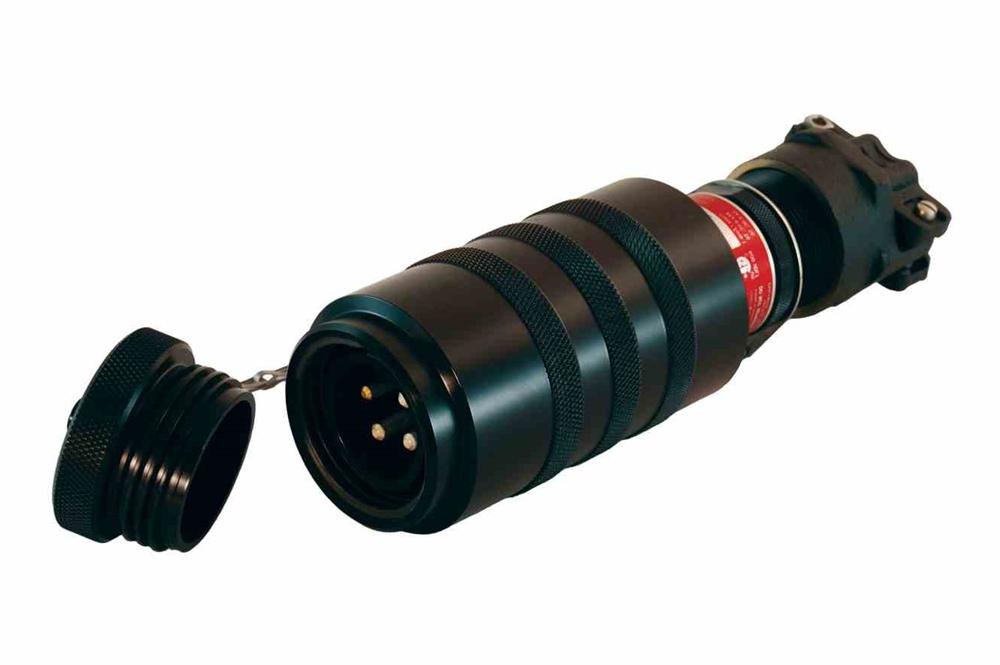

The EPP-PSU-200A-3P4W-S20-1.7N from Larson Electronics is an Explosion Proof Plug for use in flammable work sites and industrial facilities. This 600V rated unit features a 3-pole, 4-wire configuration. Constructed of copper-free aluminum, the explosion proof plug is protected by an attachment cover. The EPP-PSU-200A-3P4W-S20-1.7N offers secure power connections in Class I, Divisions 1 & 2, Class II, Division 1 and ATEX rated combustible facilities. This explosion proof plug is rated at 600V AC and takes on a 3-pole, 4-wire configuration. The unit carries a 200-amp NEC/CEC rating and a 260-amp ATEX rating (applicable rating depends on classification). Suitable for hazardous locations, this plug is pre-wired and factory sealed. This unit is compatible with 1.5" - 1.625" cable diameter. Durability: The explosion proof plug is constructed of 6061-T6 copper-free aluminum with an anodized finish. This corrosion-resistant power device complies with MIL-STD 202, Method 101, Condition D. Applications: Hazardous locations, flammable work sites, oil and gas, chemical processing, wet and damp locations, warehouses, industrial plants, confined spaces, paint spray booths and more.
