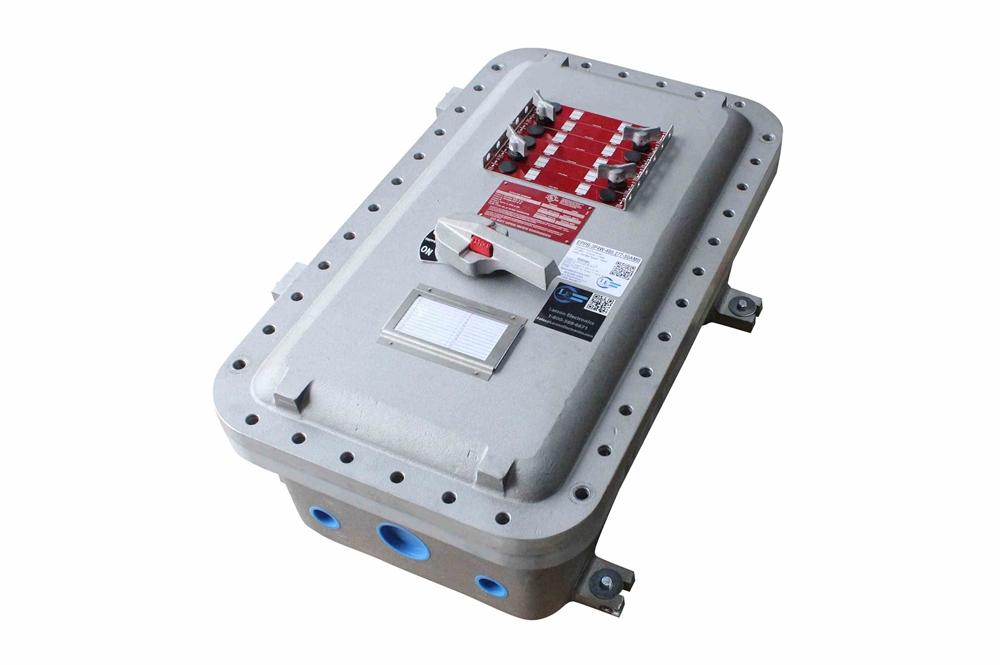

Explosion Proof Panelboard - Class I, II, III - 3P4W, 208Y/120V - 100A Main Breaker - (2) 40A 2P, (1) 20A 2P, & (10) 10A 1P Breakers

LARSON ELECTRONICSSKU: PL3-EPPB-3P4W-208Y.120-100AMB-2X40.2-1X20.2-10X20.1
filler

Prix:
Prix réduit$29,028.00

Description

Specifications / Additional Information
EPPB-3P4W-208Y.120-100AMB-2X40.2-1X20.2-10X20.1 Explosion Proof Panelboard Ratings/Approvals
Unit Type: Explosion Proof Lighting Panelboard Class I, Groups B, C, D
Dimensions: - Class I Zone 1, AE x d IIB
Weight: - Class II, Groups E, G
Primary Voltage: 208Y/120V, 3PH Class III
Panel Type: Main Circuit Breaker Ex d IIB+H2
Main Panel Amp Rating: 100 Amps NEMA Type 4X, 7, 9 - IP66
Configuration: 3 Pole, 4 Wire
Circuit Panel: -
Breakers: (2) 40A 2P, (1) 20A 2P, & (10) 10A 1P
Ground Bar: Internal Ground Terminal
Bus Materials: Copper Special Orders - Requirements
Ground Materials: Copper
Housing Materials: Copper-free Aluminum Toll Free: 1-800-369-6671
Finish: Aluminum Lacquer Paint Intl: 1-214-616-6180
Mount: Wall or Surface
Hubs: -
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The EPPB-3P4W-208Y.120-100AMB-2X40.2-1X20.2-10X20.1 Explosion Proof Panelboard offers circuit management and protection in hazardous locations and indoor/outdoor work sites. The 100-amp rated main breaker panel is compatible with three-phase 208Y/120V AC and comes with thirteen breakers. This explosion proof panel is constructed of copper-free aluminum. The EPPB-3P4W-208Y.120-100AMB-2X40.2-1X20.2-10X20.1 is a rugged main circuit breaker panel for applications in hazardous locations and explosive work sites. This unit comes with a 100-amp rating and supports three-phase 208Y/120V AC. Equipped with a 3-pole, 4-wire configuration, the main breaker panel is furnished with a heavy-duty operating handle. Operators can access a total of thirteen breakers on the explosion proof panelboard. The breakers are configured as follows: (2) 40 amp, two pole breakers, (1) 20 amp, two pole breaker, and (10) 10 amp, one pole breakers. This unit is constructed of copper-free aluminum and is finished in aluminum lacquer paint. The NEMA-rated explosion proof panelboard carries an IP66 waterproof rating. Mount: The EPPB-3P4W-208Y.120-100AMB-2X40.2-1X20.2-10X20.1 is compatible with wall or surface mounting configurations. Applications: Hazardous locations, oil and gas facilities, petroleum refineries, chemical processing, lighting systems, overcurrent protection, short circuit protection and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or
