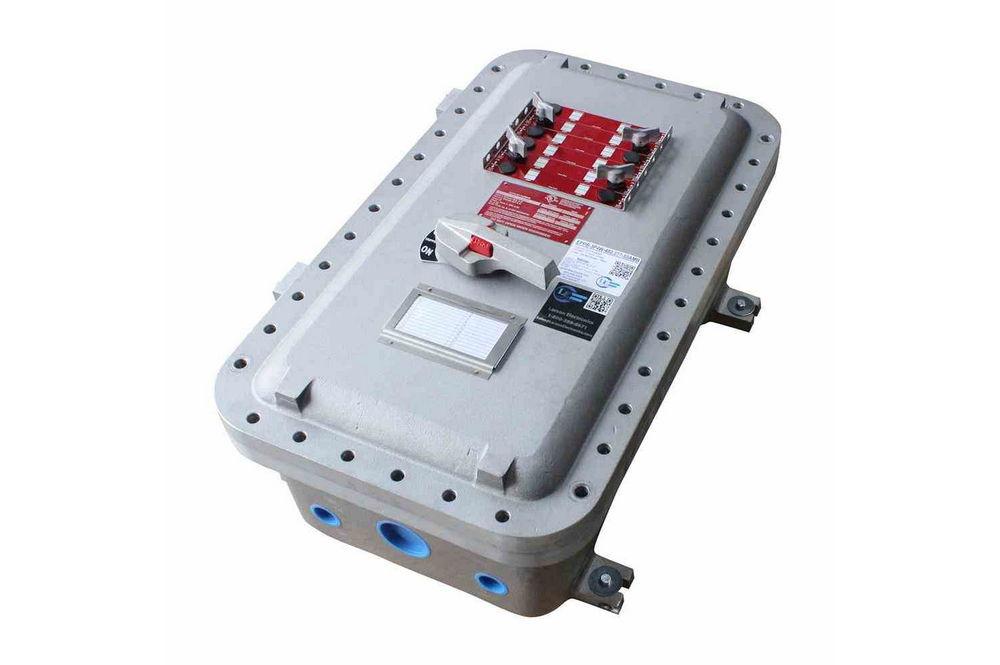

Explosion Proof Panelboard - 3P4W 120/240V - 100A Main - (3) 20A 1P (1) 15A 1P (1) 20A 2P Breakers
Explosion Proof Panelboard - 3P4W 120/240V - 100A Main - (3) 20A 1P (1) 15A 1P (1) 20A 2P Breakers
| EPPB-1P-120.240-50AMB-5X5A Explosion Proof Panelboard | Ratings/Approvals |
| Type: Explosion Proof Lighting Panelboard | Class I, Div 1 & 2 Groups B, C, D |
| Primary Voltage: 120/240V 1P | Class I, Zone 1 & 2 IIB + H2 |
| Main Breaker Amp Rating:Â 100 Amps | Class II, Div 1 & 2 Groups E, F, G |
| Configuration: 3 Pole 4 Wire | Class III |
| Branch Breakers: (3)Â 20A 1P, (1) 15A 1P, (1) 20A 2P | NEMA 4X, 7, 9, 12 |
| Materials: Copper-free Aluminum | IP65 |
| Gasket Material: Neoprene | Â |
| Finish: Aluminum Lacquer Paint | |
| Toll Free:Â 1-800-369-6671 | |
| Intl:Â 1-214-616-6180 | |
| Fax:Â 1-903-498-3364 | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| The EPPB-3P4W-3X20A.1P-1X15A.1P-1X20A.2P is an explosion proof lighting panelboard that is designed for Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 industrial facilities. This panelboard is rated at 120/240V single phase, has a 3-pole 4-wire configuration and features a 100-amp main breaker rating with three, 20-amp single phase; one, 15-amp single phase; and one, 20-amp two phase branch breakers. The EPPB-3P4W-3X20A.1P-1X15A.1P-1X20A.2P is suitable for circuit protection in hazardous locations. This unit features a primary voltage of 120/240V single phase and contains 24 branch circuit breaker spaces (maximum). Taking on a 3-pole 4-wire configuration, the explosion proof panel board consists of three, 20-amp single phase; one, 15-amp single phase; and one, 20-amp two phase branch breakers. The main breaker amp rating on this unit is 100 amps. This explosion proof panelboard is constructed of copper-free aluminum, while the cover bolts are stainless steel. A corrosion resistant, NEMA 4X breather and drain is available to reduce internal condensation. This component also protects the unit from the ingress of rain and hose water. The IP65-rated panelboard is approved with the following explosion proof ratings: Class I, Divisions 1 & 2 Groups B, C, D; Class II, Divisions 1 & 2 Groups E, F, G; and Class II. Applications: Industrial facilities, hazardous locations, offshore refineries, marine locations, indoor/outdoor spaces, agricultural sites, ship yards, docks and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or |
