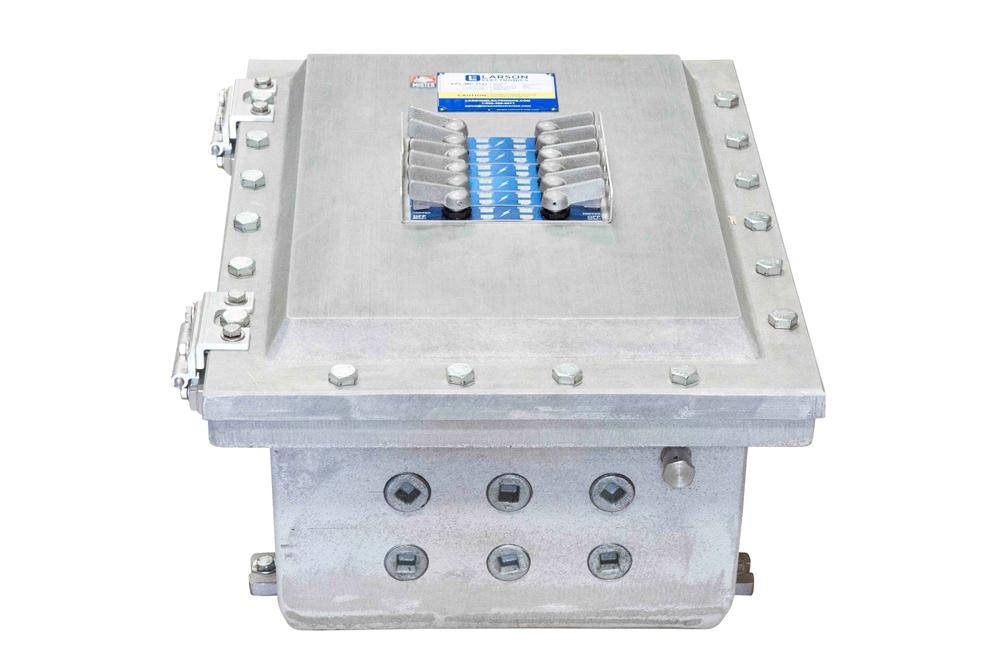

Explosion Proof Panelboard - 3P4W 480Y/277 3PH - 225A Main Lug - (12) Circuits

LARSON ELECTRONICSSKU: PL3-EPPB-3P4W-480V-225AML-12CKT
filler

Prix:
Prix réduit$28,212.00

Description

Specifications / Additional Information
EPPB-3P4W-480V-225AML-12CKT Explosion Proof Panelboard Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2, Groups B, C, D
Unit Type: Explosion Proof Lighting Panelboard Class I, Zones 1 & 2, Groups IIB+H2, IIA
Dimensions: 45 3/8" x 33" x 16 7/8" Class II, Divisions 1 & 2, Groups E, F, G
Weight: - Class III
Primary Voltage: 480Y/277 V 3PH NEMA 3, 4, 4X, 7(B, C, D), 9(E, F, G)
Panel Type: Main Lug Panel
Main Panel Amp Rating: 225 Amps
Circuit Panel: 12 Special Orders - Requirements
Circuits: 12
Materials: Copper-free Aluminum Toll Free: 1-800-369-6671
Mount: Wall or Surface Intl: 1-214-616-6180
Conduit Configuration: (3) Top, (2) Bottom, (6) Left, (5) Right
Hub Sizes: (2) 3", (14) 1"
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The EPPB-3P4W-480V-225AML-12CKT from Larson Electronics is an Explosion Proof Panelboard that offers circuit management and protection in hazardous locations and indoor/outdoor work sites. The 225-amp rated main lug panel is compatible with 480Y/277 V three phase. The 12-circuit panel is constructed of copper-free aluminum. The EPPB-3P4W-480V-225AML-12CKT is a rugged main lug panel, with a 3-pole, 4-wire configuration, for applications in hazardous locations and explosive work sites. This unit comes with a 225-amp main lug panel rating and supports 480Y/277 V three phase. The 12-circuit panel is furnished with copper buss, with padlocking main/branch breaker handles. There are twelve circuits available. This unit is constructed of copper-free aluminum (less than 4/10 of 1%), with 316 stainless steel cover bolts. The explosion proof panelboard contains the following conduit openings: (3) top, (2) bottom, (6) left and (5) right. Hub sizes include (2) 3" and (14) 1". This top feed panel is NEMA rated and suitable for use in Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III work sites. Mount: The EPPB-3P4W-480V-225AML-12CKT is compatible with wall or surface mounting configurations. Applications: Hazardous locations, oil and gas facilities, petroleum refineries, chemical processing, lighting systems, overcurrent protection, short circuit protection and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or
