Explosion Proof Four Way Switch - Class I, II, III, Div. 1 & 2 - 20 Amp Rated
Explosion Proof Four Way Switch - Class I, II, III, Div. 1 & 2 - 20 Amp Rated
| EPS-25A-4W Explosion Proof Tumbler Switch | Certifications - Compliance |
| Unit Type: Explosion Proof Switch | Class I, Div. 1 & 2, Groups C, D |
| Switch Type: Four-way | Class II, Div. 1, Groups E, F, G |
| Dimensions: 3" x 4.69" x 6.13" | Class II, Div. 2, Groups F, G |
| Weight: 3 lbs | Class III |
| Voltage Rating: 120-277V AC | NEMA 7(C)(D), 9(E)(F)(G) |
| Current Rating: 20 Amps | |
| Configuration: Feed Through or Dead End | |
| Hub Size: 1/2" or 3/4" | |
| Housing Materials: Feraloy Iron Alloy, Copper-free Aluminum | |
| Finish: Electrogalvanized, Aluminum Acrylic Paint | |
| Insulation: Integral Bushings in Conductor Openings | |
| Grounding: Single Internal Housing Ground Screw | |
| Mount: External Mounting Lugs on Body | |

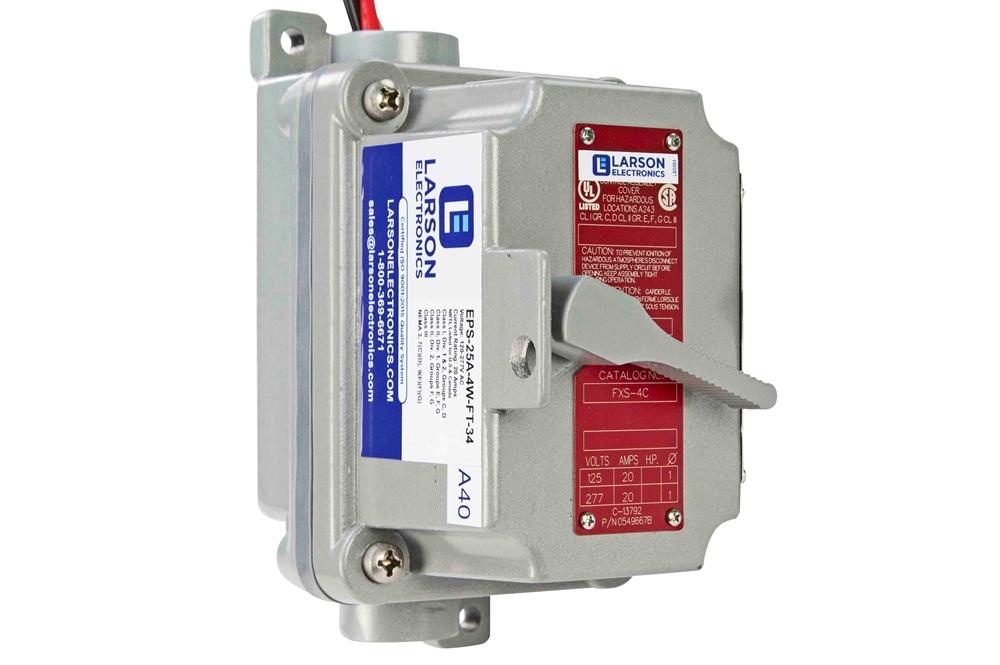

| The Larson Electronics EPS-25A-4W Explosion Proof Four Way Switch is designed for robust control of industrial equipment in Class I/II, Div. 1 & 2 hazardous locations. This unit provides a safe and secure method for operators to interrupt power before connecting and disconnecting portable or stationary electrical devices and equipment in hazardous locations. When ordering this product, please select the preferred termination (feed through or dead end) and hub size (1/2" or 3/4"). The EPS-25A-4W is ideal for operators seeking a high quality explosion proof switch rated for use in hazardous areas. This 20-amp device is compatible with 120-277V AC. The unit is easily wall mounted via integral mounting tabs at the corners of the housing. A bushing seal at each conductor opening prevents damage to wiring insulation and a triple coat housing finish provides rugged protection against corrosion. The housing on the EPS-25A-4W is constructed of feraloy iron alloy and copper-free aluminum. This design does not require external sealing fittings. NPT tapped conduit opening choices include 1/2" or 3/4", which are provided on the top and bottom of the unit in feed through versions for running electrical conductors; while dead end versions have a single conduit hub, providing easy and secure connection to main power line supplies. | |||
|
|||
| Applications: Manufacturing, industrial, warehouse, lighting, wet areas and hazardous locations where combustible gases/dust are present. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or | |||
