Explosion Proof Push Button 480V Stop/Start Switch - C1D1&2 - C2D1&2 - C3D1&2 - Motor Starter Switch
Explosion Proof Push Button 480V Stop/Start Switch - C1D1&2 - C2D1&2 - C3D1&2 - Motor Starter Switch
| EPS-2XPB-SG-480V - C1D1 Explosion Proof 480V Push Button Switch | Ratings/Approvals |
| Listing: United States | Listed for United States & Canada |
| Dimensions: 5.1"L x 5.875"W x 5.25"H | Class I, Divisions 1 & 2, Groups C & D |
| Weight: 5 lbs | Class II, Division 1, Groups E, F & G |
| Voltage Rating: 480V | Class II, Division 2, Groups F & G |
| Inrush Amps: 15A | Class III, Divisions 1 & 2 |
| Breaking Amps: 1.5A | NEMA 3 |
| Carrying Amps: 10A | Class III, Divisions 1 & 2 |
| Switch Type: Push Button | NEMA 7, Groups C, D |
| No. of Switches: 2 | NEMA 9, Groups E, F, G |
| Contacts per Switches: (1) Normally Open & (1) Normally Closed | NRTL Listed to UL 1203 |
| Switch Labels: Start / Stop | Â |
| Materials: Box: Malleable Iron / Switch, Cover: Cast Copper Free Aluminum Alloy | |
| Insulation: Integral Bushings in Conductor Openings | |
| Mounting: External Mounting Lugs on Body | |
| Configuration: Feed Thru / Dead End | |
| Hub: 1/2" or 3/4" NPT |

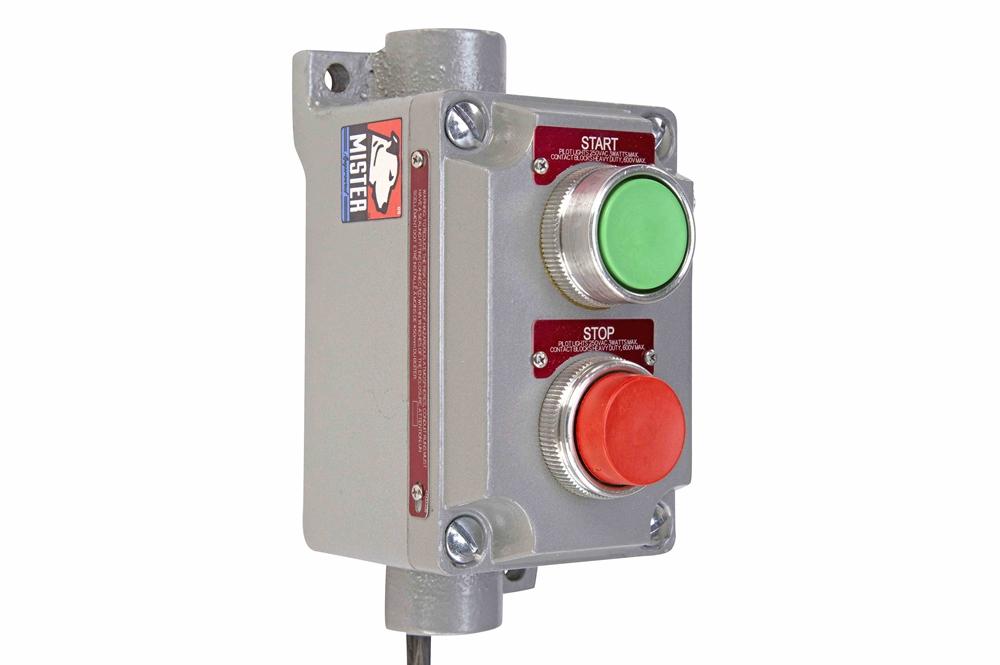

| The EPS-2XPB-SG-480V from Larson Electronics is a 480V Explosion Proof Push Button Stop/Start Switch that is Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 rated for hazardous locations and UL 1203 listed. This explosion proof switch provides manual starting and stopping of small AC and DC motors. The EPS-2XPB-SG-480V Explosion Proof Stop/Start Push Button Switch is built to be heavy duty, has a 480V rating and an inrush amp level of 15 amps. The switch is enclosed in a cast iron device box and the faceplate has smooth, double flanges that mate both to the cover and the mounting enclosure to provide flame tight joints. The screws consist of stainless steel hex head screws and attach the cover to the mounting enclosure. The side rocker arm push button has lockout holes, and the switches are supplied with an internal ground screw. The EPS-2XPB-SG-480V housing is made out of a malleable iron body with a cast copper free aluminum alloy cover, and is epoxy powder coated for a natural finish. This switch is in compliance with UL 1203 and is rated for Class I Divisions 1 & 2 Groups C & D, Class I Zones 1 & 2 Groups IIA, Class II Divisions 1 & 2 Groups E, F & G, and Class III Divisions 1 & 2. |
