Explosion Proof Push Button Stop/Start Switch - Class I, II, III- 480V 3PH, Delta - Motor Starter Switch
Explosion Proof Push Button Stop/Start Switch - Class I, II, III- 480V 3PH, Delta - Motor Starter Switch
| EPS-2XPB-SG-480V.3P - C1D1 Explosion Proof 480V Push Button Switch | Ratings/Approvals |
| Listing: United States, Canada | Class I, Divisions 1 & 2, Groups C & D |
| Dimensions: 5.1"L x 5.875"W x 5.25"H | Class I, Zones 1 & 2, Groups IIA |
| Weight: 5 lbs | Class II, Division 1, Groups E, F & G |
| Voltage Rating: 480V 3PH Delta | Class II, Division 2, Groups F & G |
| Inrush Amps: 15A | Class III, Divisions 1 & 2 |
| Breaking Amps: 1.5A | NEMA 3, 7 (C,D), 9 (E,F,G) |
| Carrying Amps: 10A | UL Listed E53360 |
| Switch Qty/Type: (2) Push Buttons | Â |
| Poles: 3-pole Connection per Push Button | Â |
| Switch Labels: Start/Stop | |
| Materials: Malleable Aluminum/Switch (Box), Cast Copper Free Aluminum Alloy (Cover) | |
| Insulation: Integral Bushings in Conductor Openings | |
| Mounting: External Mounting Lugs on Body | |
| Configuration: Feed Thru or Dead End | |
| Hub: 1/2" or 3/4" NPT |

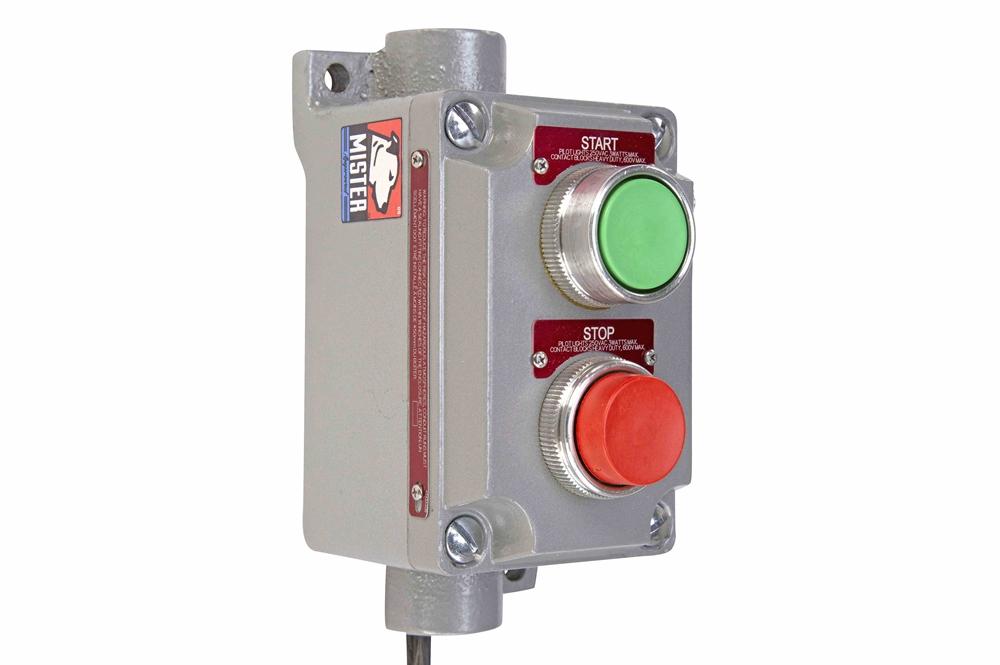

| The EPS-2XPB-SG-480V.3P from Larson Electronics is an Explosion Proof Push Button Stop/Start Switch that is Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 rated for hazardous locations and UL 698 listed. Compatible with three-phase 480V Delta, this explosion proof switch provides manual starting and stopping of small AC and DC motors. The EPS-2XPB-SG-480V.3P Explosion Proof Stop/Start Push Button Switch is rated at three-phase 480V Delta and is capable of accommodating 15 inrush amps. Operators are provided with 3-pole connections per push button. The switch is enclosed in a cast aluminum device box and the faceplate has smooth, double flanges that mate both to the cover and the mounting enclosure to provide flame tight joints. The screws consist of stainless steel hex head screws and attach the cover to the mounting enclosure. The side rocker arm push button has lockout holes, and the switches are supplied with an internal ground screw. The EPS-2XPB-SG-480V.3P housing is made out of a malleable aluminum body with a cast copper free aluminum alloy cover, and is epoxy powder coated for a natural finish. |
