10A Explosion Proof Momentary Push Button Switch - C1D1/C2D1 - (2) Contact Blocks
10A Explosion Proof Momentary Push Button Switch - C1D1/C2D1 - (2) Contact Blocks
| EPS-PB10-MMS-2XC Explosion Proof Momentary Push Button | Ratings/Features: |
| Listing: United States & Canada | Class I, Divisions 1 & 2, Group C, D |
| Dimensions: - | Class II, Divisions 1 & 2, Groups E, F, G |
| Weight: - | NEMA 3, 7 (C,D), 9 (E,F,G) |
| Voltage: 600V AC Max | Raintight - Wet Location Approved |
| Amps: 10A | Â |
| Switch Type: Momentary - Push | Â |
| Contact Blocks: (2 Sets) NO or NC | Â |
| Material: Copper Free Aluminum | |
| Finish:Â Aluminum Acrylic Paint | |
| Mounting:Â (2) Mounting Feet, Surface Mount | |
| Wiring: Hard-Wire | |
| Termination: Dead end or Feed Thru | |
| Wiring Hub: 3/4" NPT or 1/2" NPT |

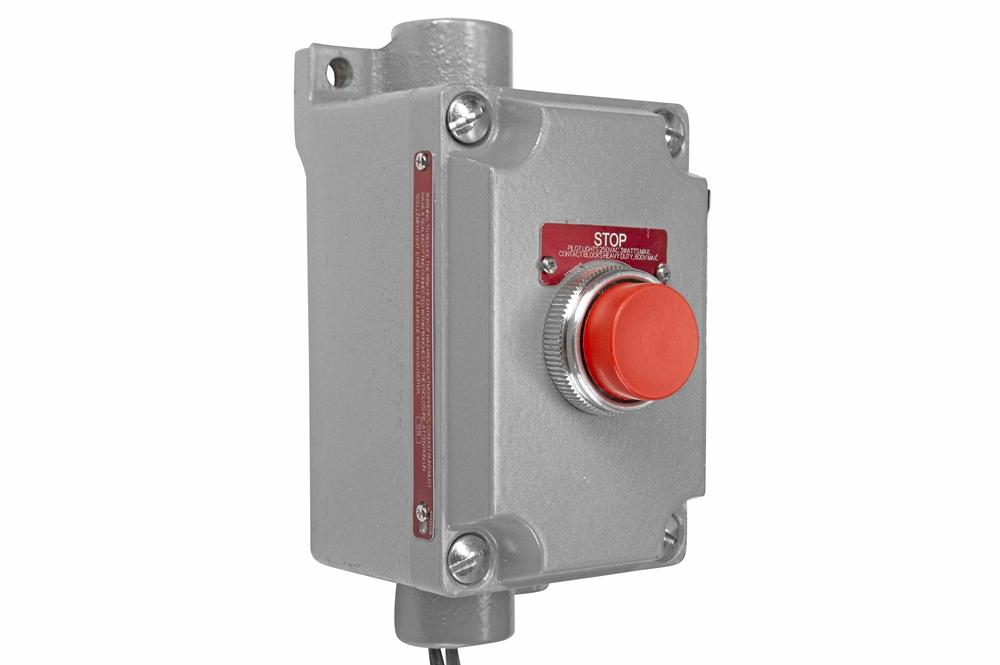

| The EPS-PB10-MMS-2XC Larson Electronics Explosion Proof Momentary Push Button Switch is designed for use in hazardous work areas, such as chemical plants, oil refineries and settings where combustible gases or dust may be present. This 10-amp device features the following explosion proof ratings: Class I, Division 1 and 2 and Class II, Division 1 and 2. In industrial and commercial settings, the momentary push button switch may be used to support basic features of machines lacking electrical circuits for control. The EPS-PB10-MMS-2XC is rated for 10 amps at 600V AC, 60 Hz. This explosion proof push button features 2 contact blocks for up to 2 connections and comes in a switch configuration of 2 normally open or 2 normally closed. The device supports operating temperatures between -20° to 40°C. It is enclosed in a separate sealing chamber, and the sealing chamber has smooth, double flanges that mate both to the cover and the mounting enclosure to provide flame tight joints. On this unit, the screws consist of stainless steel captive screws and attach the sealing chamber to cover and mounting enclosure. The switch is supplied with an internal ground screw. Its housing is constructed of copper-free aluminum, finished with aluminum acrylic paint. With the robust protruding button design, workers using thick gloves may find the device easier to activate, compared to a traditional momentary push button switch design. Options: This device features ½€ and ¾€ dead end and feed thru options. Both options come with Class I, Division 1 and 2 (Groups C and D), Class II, Division 1 and 2 (Groups E, F and G) ratings. The components also comply with UL 894, UL 1203 and UL 698 standards, and support NEMA 3/7, CSA Standard: C22.2 No. 30 ratings. |
