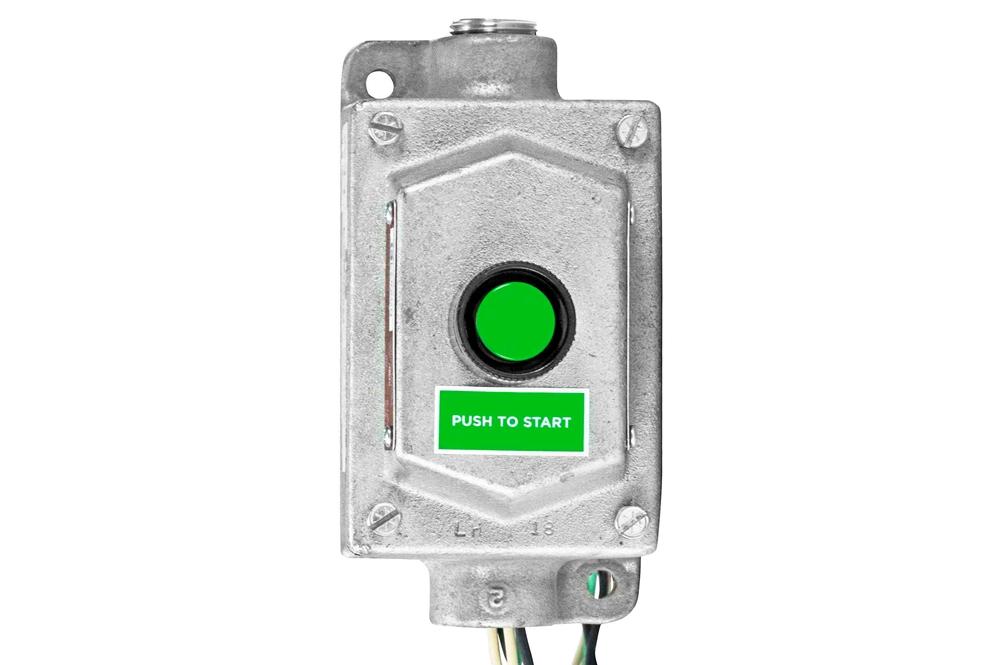

Explosion Proof Push Button Momentary Switch - C1D1, C2D1 - Adjustable Timer - 10 sec-170 Minutes

LARSON ELECTRONICSSKU: PL3-EPS-PB10-MS-AT-V3
filler

Prix:
Prix réduit$1,842.00

Description

Specifications / Additional Information
EPS-PB10-MS-AT-V2 Explosion Proof Push Button Switch Features/Ratings
Unit Type: Explosion Proof Push Button Momentary Switch Class I, Divisions 1 & 2 Groups C & D
Dimensions: - Class II, Divisions 1 & 2 Groups E, F, G
Weight: - Class III
Voltage: 100-240 VAC/DC 50/60 Hz NEMA 7 (C,D) and 9 (E,F,G)
Rated Amps: 10 (Rated @ 600VAC) Solid-state, Encapsulated Timer
Timer Range: 10 seconds to 170 minutes in 10 second increments External sealing required within 18"
Repeat Accuracy: ±0.5% or 20ms, Whichever is Greater
Setting Accuracy: = ±2% or 20ms, Whichever is Greater
Reset Time: = 150ms
Materials: Malleable Aluminum Body w/ Aluminum Cover
Mounting: Surface
Hub Configurations: Dead End or Feed Thru
Hub Size Options: 1/2" or 3/4" NPT hubs
Termination Options: Normally Open or Normally Closed
Color Options (Buttons): Red, Green or Black
' Product Overview '
Made in the USA The Larson Electronics EPS-PB10-MS-AT-V2 Explosion Proof Push Button Momentary Switch is ideal for controlling motors and devices in hazardous locations. This unit comes with an adjustable time delay relay, at a range of 10 seconds - 170 minutes in 10 second increments. Constructed of malleable aluminum, this Class I, Division 1 & 2 and Class II, Division 1 & 2 rated switch features various hub size, termination and color (button) options. The EPS-PB10-MS-AT-V2 offers adjusted timing control of motors in hazardous locations. This explosion proof switch is designed to operate with 100-240VAC/DC 50/60 Hz and comes with a 10-amp rating (at 600VAC). The unit requires sealing fittings and compound within 18 inches of conduit entrances. A solid-state, encapsulated time delay relay can be found inside the switch, which offers an adjustable timer range of 10 seconds to 170 minutes. When the button is engaged, the circuit stays closed, keeping the connected motor or device running for the set duration (between 10 second - 170 minutes in 1 second increments). The timer component features a repeating accuracy value of +/- 0.5% and a setting accuracy value of +/- 2%. The explosion proof device is constructed of malleable aluminum with an aluminum cover and an epoxy powder coated finish. The switch is enclosed in a separate sealing chamber and the sealing chamber has smooth, double flanges that mate both to the cover and the mounting enclosure to provide flame tight joints. Operators connect to the switch via an internal terminal strip. The screws consist of stainless steel captive screws and attach the sealing chamber to the cover and mounting enclosure. This unit is offered in dead end or feed thru configurations, with 1/2" or 3/4" NPT hubs. Color options for the button includes red, green or black. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, motor control, agricultural sites, wood shops, metal processing and more.
