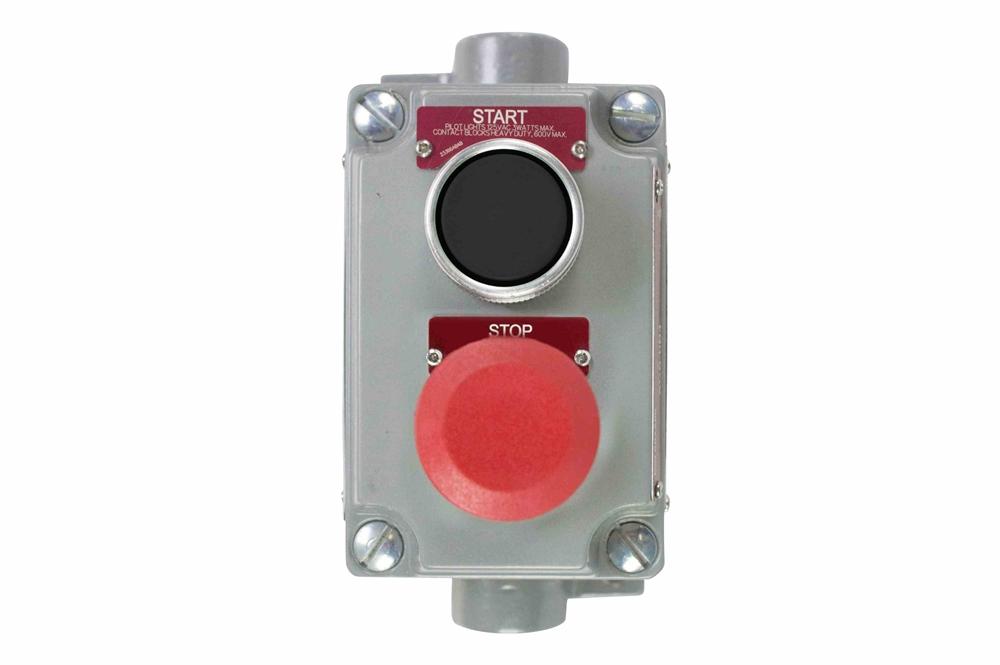

Explosion Proof Momentary Push Button Stop/Start Switch - Top START Button - Bottom STOP Mushroom Head - C1D1&2 - C2D1&2

LARSON ELECTRONICSSKU: PL3-EPS-PB10-MS-PB.B-MMH-2XC-M1
filler

Prix:
Prix réduit$1,736.00

Description

Specifications / Additional Information
EPS-PB10-MS-PB.B-MMH-2XC-M1 - C1D1 Explosion Proof Momentary Push Button Switch Ratings/Approvals
Listing: United States NRTL Listed for United States
Dimensions: 5.1"-L x 5.875"-W x 5.25"-H Class I, Divisions 1 & 2, Groups C, D
Weight: 5 lb Class II, Division 1, Groups E,F,G
Voltage Rating: 600 Volts Max Class II, Division 2, Groups F & G
Current Rating: 6 Amps @ 120 V AC; 5 Amps @ 24 V DC Class III, Divisions 1 & 2
Switch Type: Momentary Push Button NEMA 3
No. of Switches: 2 NEMA 7, Groups C, D
Switch Labels: Start / Stop NEMA 9, Groups E, F, G
Illumination: Not Illuminated
No. of Circuits Controlled Per Button: 2
Switch Starting Position: 1 Off (Normally Open) & 1 On (Normally Closed)
Switch Action: Springs Back (Momentary)
No. of Terminals Per Button: 4
Materials: Box: Malleable Aluminum / Switch Cover: Cast Copper Free Aluminum Alloy Special Orders - Requirements
Insulation: Integral Bushings in Conductor Openings
Mounting: External Mounting Lugs on Body
Configuration: Feed Thru / Dead End
Hub: 1/2" NPT or 3/4" NPT
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
The EPS-PB10-MS-PB.B-MMH-2XC-M1 from Larson Electronics is an Explosion Proof Momentary Push Button/Mushroom Head Stop/Start Switch that is Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 rated for Hazardous locations and is NRTL certified to UL 698. This explosion proof switch provides manual starting and stopping of small AC and DC motors. The EPS-PB10-MS-PB.B-MMH-2XC-M1 is equipped with a black push button labeled START on top and a red mushroom head labeled STOP on the bottom. The EPS-PB10-MS-PB.B-MMH-2XC-M1 Explosion Proof Momentary Stop/Start Push Button/Mushroom Head Switch is built to be heavy duty and is rated for 10 amps at 600 Volts. The switch is enclosed in a cast aluminum device box, and the device has smooth, double flanges that mate both to the cover and the mounting enclosure to provide flame tight joints. The screws consist of stainless steel hex head screws and attach the faceplate to cover and mounting enclosure. The switches are supplied with an internal ground screw. Each button on this unit has two contact blocks. Each contact block has one normally open (NO) and one normally closed (NC) circuit. The EPS-PB10-MS-PB.B-MMH-2XC-M1 housing is made out of a malleable aluminum body with a cast copper free aluminum alloy cover, and is epoxy powder coated for a natural finish. This switch is NRTL certifed to UL 698 and is rated for Class I Divisions 1 & 2 Groups C & D, Class I Zones 1 & 2 Groups IIA, Class II Divisions 1 & 2 Groups E, F & G, and Class III Divisions 1 & 2. Applications: Hazardous locations, motors, industrial machines, industrial sites, oil and gas facilities, processing plants, agricultural sites, warehouses and more.
