10' 4/4 SOOW Weatherproof Extension Power Cord - 60 Amps Rated - 250V - 3P4W Plug/Connector

LARSON ELECTRONICSSKU: PL3-EXC-10-60A-IP67-309.NA-3PH-250V-3P4W
filler

Prix:
Prix réduit$2,236.00

Description

Specifications / Additional Information
EXC-10-60A-IP67-309.NA-3PH-250V-3P4W - 10' 4/4 SOOW 60A Extension Cord Features
Device Series: IEC 60309 (North American Standard) Certified for United States & Canada
Cable Length: 10' NRTL Certified to UL 1682, UL 1686
Weight: - NRTL Certified to CAN/CSA C22.2 No 182.1
Cable Type: 4/4 SOOW CE Certified, Low Voltage Directive 73/23/EEC
  CE Certified, Low Voltage Directive 93/68/EEC
Cord Cap Specs NRTL Certified to 60309-1, 60309-2
Amperage Rating: 60 A CE Certified, Low Voltage Directive 93/68/EEC
Voltage: 250 V NRTL Certified to 60309-1, 60309-2
Frequency: 50/60 Hz RoHS Certified
Phase: 3-Phase Delta Compatible with IEC 60309 Compliant Products
Configuration: 3P4W (3P+N+E) IP67/IP69K Rated Weatherproof
# of Poles: 3-Pole IK07 Rated Drop Resistant
# of Wires: 4-Wire Flame Retardant (UL94 V2)
Max Voltage Rating: 250 V 3PH Certified for Full Load Interrupting
Clock Hour: 9H Current Interrupting: Certified for current interrupting at full rated current
Cord Range: .670 - 1.625 Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
Dielectric Voltage: 2000V� for 1 min Flammability: Rated V-2 per UL 94
# of Operations: > 1000� connects/disconnects under load, at full rated current and voltage Ingress Protection Rating: IP67/IP69K
Minimum Withdrawal Force: 15 lb Moisture Resistance: Immersed for 24 hours in 5cm of 25°C water per UL 1682
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current Crush Test: 250 lb for 1 min after -25°C for 6 hrs
Operating Temperature Range: -25°C to +65°C Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs
Waterproof Rating: IP67, IP69K, NEMA 4X
Shock Resistance: IK09 Mating Plug: XLE-PA-IP67-309.NA-3PH-60A-250V-3P4W-P
Flammability: V-2 Rated Mating Receptacle: XLE-PA-IP67-309.NA-3PH-60A-250V-3P4W-R
Insulation Resistance: 500V for 1 min; >= 5MΩ Mating Connector: XLE-PA-IP67-309.NA-3PH-60A-250V-3P4W-C
Cable Secureness: "Force: 150lb; Torque: 1.0 ft-lb; Max Disp: <= 3/32""" Mating Inlet: XLE-PA-IP67-309.NA-3PH-60A-250V-3P4W-B
Seals: Neoprene
Material, Housing Body: Toughened PVC Cross Compatible: 460C9W
Material, Housing Cover: Toughened PVC
Material, Contacts: Brass
Material, Contact Carrier: Nylon
Material, External Screws: Acid-Proof Stainless Steel
Material, Internal Screws: Zinc-plated steel
Material, Phase/Ground Sleeves: Brass
Material, Sleeve Spring: Stainless Steel
Material, Terminal Screws: Steel
Color: Blue
Shipping Dimensions: -
Shipping Weight: -

Connector Specs
Amperage Rating: 60 A CE Certified, Low Voltage Directive 93/68/EEC
Voltage: 250 V NRTL Certified to 60309-1, 60309-2
Frequency: 50/60 Hz RoHS Certified
Phase: 3-Phase Delta Compatible with IEC 60309 Compliant Products
Configuration: 3P4W (3P+N+E) IP67/IP69K Rated Weatherproof
# of Poles: 3-Pole IK07 Rated Drop Resistant
# of Wires: 4-Wire Flame Retardant (UL94 V2)
Max Voltage Rating: 250 V 3PH Certified for Full Load Interrupting
Clock Hour: 9H Current Interrupting: Certified for current interrupting at full rated current
Cord Range: .670 - 1.625 Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
Dielectric Voltage: 2000V� for 1 min Flammability: Rated V-2 per UL 94
# of Operations: > 1000� connects/disconnects under load, at full rated current and voltage Ingress Protection Rating: IP67/IP69K
Minimum Withdrawal Force: 15 lb Moisture Resistance: Immersed for 24 hours in 5cm of 25°C water per UL 1682
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current Crush Test: 250 lb for 1 min after -25°C for 6 hrs
Operating Temperature Range: -25°C to +65°C Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs
Waterproof Rating: IP67, IP69K, NEMA 4X
Shock Resistance: IK09 Mating Plug: XLE-PA-IP67-309.NA-3PH-60A-480Y.277-4P5W-P
Flammability: V-2 Rated Mating Receptacle: XLE-PA-IP67-309.NA-3PH-60A-480Y.277-4P5W-R
Insulation Resistance: 500V for 1 min; >= 5MΩ Mating Connector: XLE-PA-IP67-309.NA-3PH-60A-480Y.277-4P5W-C
Cable Secureness: "Force: 150lb; Torque: 1.0 ft-lb; Max Disp: <= 3/32""" Mating Inlet: XLE-PA-IP67-309.NA-3PH-60A-480Y.277-4P5W-B
Seals: Neoprene
Material, Housing Body: Toughened PVC Cross Compatible: 460C9W
Material, Housing Cover: Toughened PVC
Material, Contacts: Brass
Material, Contact Carrier: Nylon
Material, External Screws: Acid-Proof Stainless Steel
Material, Internal Screws: Zinc-plated steel
Material, Phase/Ground Sleeves: Brass
Material, Sleeve Spring: Stainless Steel
Material, Terminal Screws: Steel
Color: Blue Int'l: 1-214-616-6180
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

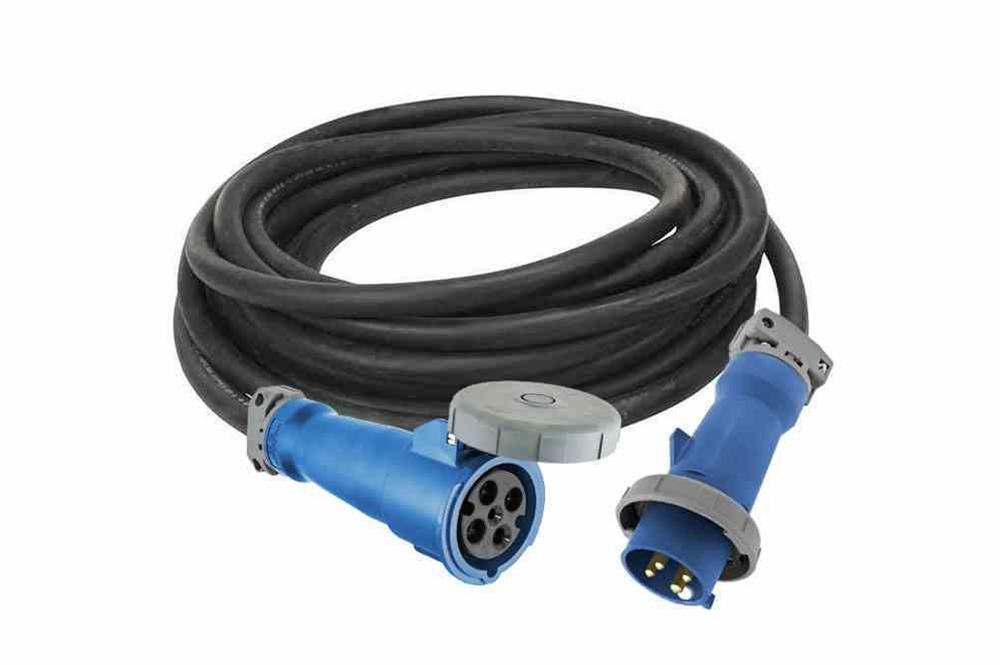

Made in the USA The EXC-10-60A-IP67-309.NA-3PH-250V-3P4W from Larson Electronics is a 10' weatherproof 4/4 SOOW extension power cord that is designed for heavy duty and outdoor applications. This rugged extension cord is constructed of 4-gauge 4-conductor wire, equipped with a blue 60-amp rated weatherproof IEC 60309 pin and sleeve cord cap and allows operators to extend power to equipment when stationary weatherproof outlets are not readily available. The EXC-10-60A-IP67-309.NA-3PH-250V-3P4W extension cord provides a safe and effective way for operators to extend 250 V power to a variety of devices for plant maintenance, power generators, construction and other temporary applications. This unit consists of 10 feet of chemical and abrasion resistant flexible 4/4 SOOW cable that is terminated in a blue IEC 60309, 60-amp rated 3-pole, 4-wire cord cap with a clock hour setting of 9H. The other end contains a 3-pole, 4-wire female connector with a clock hour setting of 9H. Applications: This extension cord is ideal for indoor or outdoor use and applications including but not limited to, generators, construction sites, plant maintenance, plant turnarounds, shows, exhibits, industrial equipment, uninterruptible power supplies (UPS battery backups), stage equipment, and shipyard operations. These industrial extensor cords are popularly used in applications where external power sources are often necessary. We also offer class rated extension cords for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and as such can build extension cords and portable transformer systems to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
