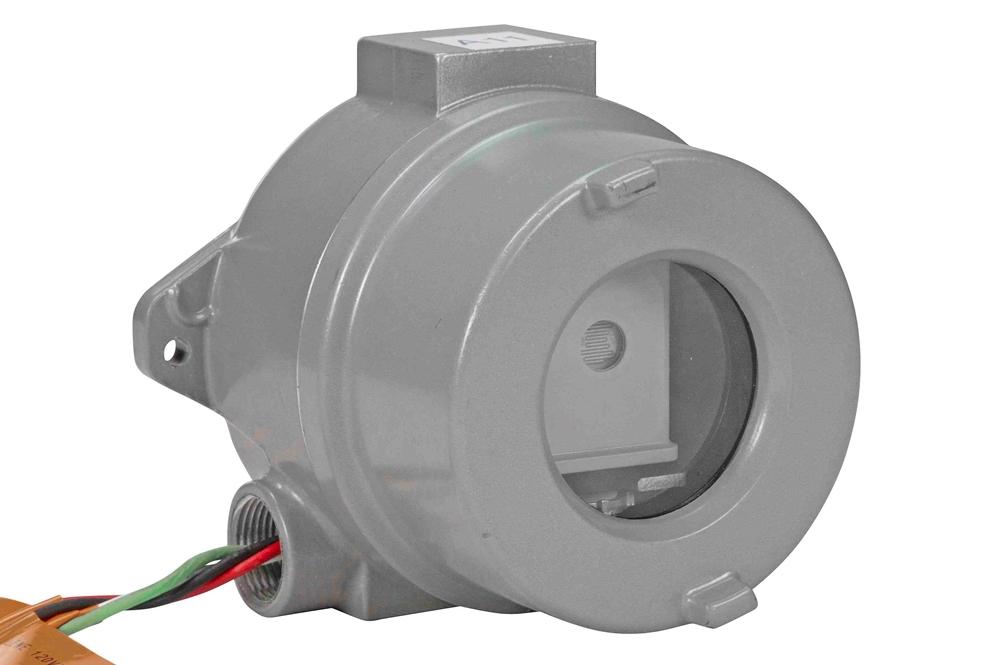

Explosion Proof Photocell - 800 Watt Rated Day/Night Sensor - Dusk-to-Dawn Operation - Indoor/Outdoor Use

LARSON ELECTRONICSSKU: PL3-EXP-DNS-800W
filler

Prix:
Prix réduit$1,248.00

Description

Specifications / Additional Information
EXP-DNS-800W Explosion Proof Photocell Ratings/Approvals
Type: Explosion Proof Photocell Listed for United States & Canada
External Dimensions: 4-17/32"H x 6-1/8"W Class I, Divisions 1 & 2, Groups B, C, D
Internal Dimensions: 3-3/32""H x 4-1/4"ID Class I, Zones 1 & 2, Groups IIB+H2, IIA
Internal Volume: 31 cu. in. Class II, Divisions 1 & 2, Groups E, F, G
Lens Opening: 2-9/32" Class III, Divisions 1 & 2
Weight: 3 lb NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)
Watts: 800 W NRTL Listed to UL 508A
Tungsten/Ballast Rating: 800 Watts NRTL Listed to UL 1203
Voltage: 120V AC or 208-277V AC NRTL Listed to CSA C22.2 No 14, 25, 30
Frequency Rating: 50/60 Hz
Volt-Ampere: 1,100 VA @ 120V AC, 1,800 VA @ 208-277V AC
On/Off Activation: 2-2.5 FC
Switch: Single Pole, Single Throw (SPST)
Housing Materials: Copper Free Cast Aluminum
Sealing Gasket: Neoprene O-ring
Enclosure Finish: Silver Powder Epoxy Paint, Electrostatically Applied
Glass Lens Material: 3/8" Thick Tempered Glass Toll Free: 1-800-369-6671
Ground Screw Material: Zinc Plated Steel w/ Green Dye Intl: 1-214-616-6180
Wiring Hub: Offset 3/4" or 1/2" NPT
Termination: Feed-Thru or Dead End
' Product Overview '
The EXP-DNS-800W from Larson Electronics is an Explosion Proof Photocell that functions as a day/night sensor for indoor and outdoor and outdoor lighting systems. The 800-watt rated unit automates dusk-to-dawn lighting controls by turning on compatible lights at 2-2.5 foot candles. The EPL-AED-1X-GL is Class I, Divisions 1 & 2, Groups B, C, D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F ,G and Class III Divisions 1 & 2 rated for hazardous areas and is NRTL listed for use worldwide including the United States, Canada, Europe and Asia. When ordering this unit, please choose from the following voltage options: 120V AC or 208-277V AC. The EXP-DNS-800W promotes safety by turning on indoor and outdoor luminaires in critical passageways at night. During operation, the device activates luminaries at 2-2.5 footcandles. Rated at 800 watts, the unit is compatible with indoor and outdoor and outdoor lighting systems. The explosion proof photocell may also be used to conserve energy by only activating the luminaries when necessary. For durability, the EXP-DNS-800W is constructed of copper free cast aluminum. Neoprene 0-rings are provided with the enclosure to assure water resistance in NEMA 4/IP66 conditions. For maximum use of interior space, the explosion proof device box comes with offset feed-thru or dead end conduit openings (1/2" or 3/4€ NPT). An internal ground screw is conveniently located away from the mounting components. The photocell enclosure is finished with silver powder epoxy paint (electrostatically applied). The ground screws are made out of zinc plated steel with green dye, while the allen head cover screw is constructed of cadmium plated steel. This explosion proof photocell comes with a 3/8" thick tempered glass lens cover. The EXP-DNS-800W is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Applications: indoor and outdoor and outdoor lighting systems in hazardous locations, such as oil and gas facilities, chemical processing plants, food manufacturing establishments, mining sites and more.
