Explosion Proof Circuit Breaker - 3 Pole - 600V Max - 150A Rating - C1D1&2 - C2D1&2 - Class 3

LARSON ELECTRONICSSKU: PL3-EXPCB-3P-600V-150A
filler

Prix:
Prix réduit$15,056.00

Description

Specifications / Additional Information
EXPCB-3P-600V-150A Explosion Proof 3 Pole Circuit Breaker Ratings/Approvals
Type: 3-Pole Circuit Breaker Class I Divisions 1 & 2 Groups B, C & D
Dimensions: 28.28"L x 16.28"W x 12.63"H Class I, Zones 1 & 2, Groups IIB+H2, IIA
Weight: 70 lbs Class II, Divisions 1 & 2, Groups E, F & G
Max Voltage: 600V Class III, Divisions 1 & 2
Amp Rating: 150 Amps NEMA 3, 4, 4x, 7(B,C,D), 9(E,F,G)
Poles: 3-Pole UL 1203
Conduit Openings: (2) 3" NPT (North), (2) 3" NPT (South) (1) 0.5" NPT (south) C22.2 NO. 30-M1986
Hub Qty: 5

  Fax: 1-903-498-3364
' Product Overview '

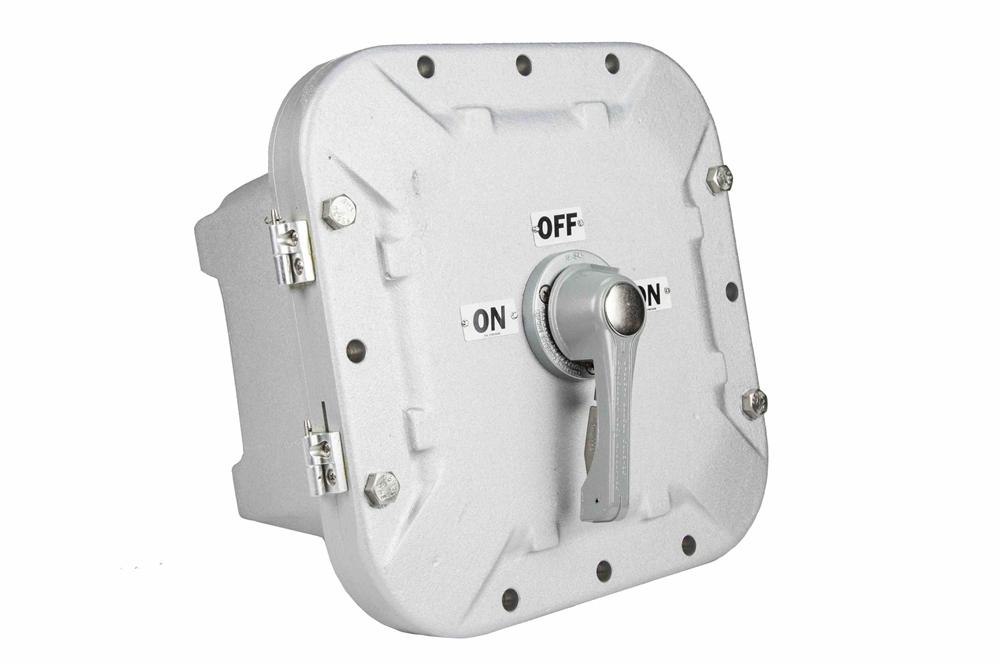

The EXPCB-3P-600V-150A from Larson Electronics is an Explosion Proof 3 Pole Circuit Breaker that is rated for Class I Divisions 1 & 2 Groups B, C & D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F & G, Class III, Divisions 1 & 2 hazardous areas. The EXPCB-3P-600V-150A is constructed from copper free cast aluminum, has a max voltage of 600V, an amp rating of 150 amps and is NEMA 3, 4, 4x, 7(B,C,D), 9(E,F,G) rated. This lightweight, corrosion resistant circuit breaker from Larson Electronics features robust construction from durable materials including cast aluminum and stainless steel hardware. This explosion proof circuit breaker features ductile mounting lugs that are able to adjust to irregular mounting surfaces without any damage to the circuit breaker itself. The breaker handle has both "off" and "on" positions and can be secured with up to three padlocks. The handle is spring loaded to prevent damage to the breaker toggle and provides positive handle alignment along with an "O" ring seal to prevent the ingress of moisture via the handle.
