Solar Power LED Explosion Proof Light - Class 1, Division 1 - Strobe or Steady Burn - 120' 8/2 SOOW

LARSON ELECTRONICSSKU: PL3-EXPLED-SOL12-120
filler

Prix:
Prix réduit$8,398.00

Description

Specifications / Additional Information
EXPLED-SOL12-120 Solar Powered Explosion Proof Light UL Ratings For Light
Operation: Automatic Class I Div 1 - Groups C & D
Solar Panel Dimensions: W-11 3/8" L-15 3/4" D-1" Class I Div 2 - Groups A, B, C & D
Lamp Dimensions: 7.44"-Diameter, 11.1" Height Class II Division 2 - Groups F & G
Panel Watts:30 NEMA 4X
Lamp Watts:12 T6 Temperature Rating
Charging Time: 5 Hours -55° C to 85° C Operating Temp
Lumens:1,600 Suitable for Marine Environments
Runtime: 12 Hours
Lamp Mounting: Wall, ceiling, pendant, or stanchion
Panel Mounting: Flat Surface / Round/Square Pole Special Orders-Special Requirements
Battery: (2) 8aH sealed lead acid batteries
Charging Time: 5 Hours
Wiring: 120 feet of 8/2 SOOW cord, Custom lengths Available on request. Intl: 1-214-616-6180
Lamp Wiring Hub: 3/4" Threaded Fax: 1-903-498-3364
Lamp Temp Rating: T6 - All Voltage and Temperature Ranges E-mail:
' Product Overview '

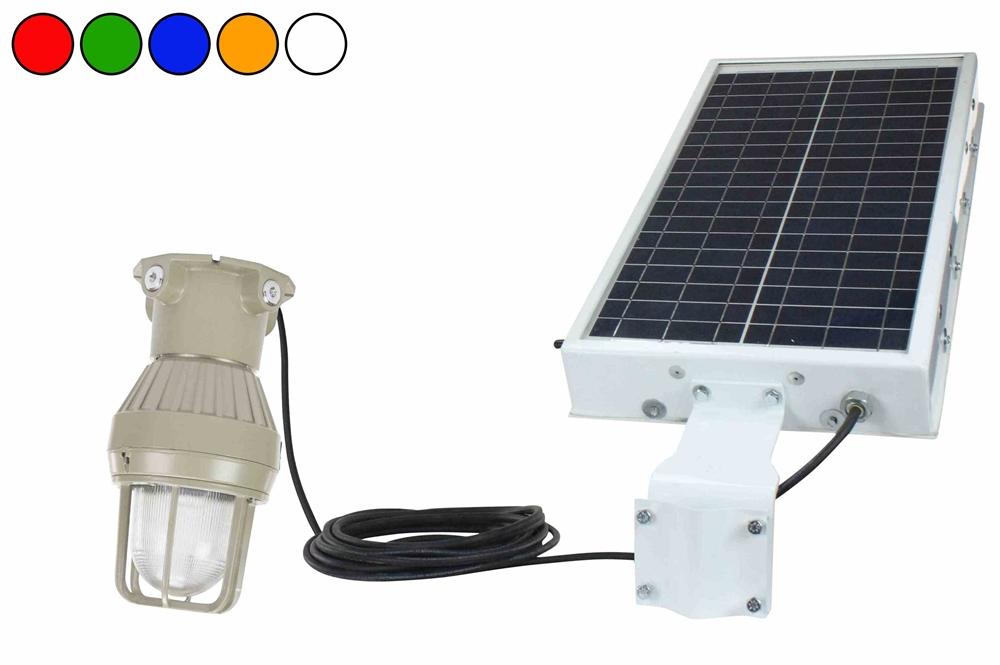

The EXPLED-SOL12-120 from Larson Electronics is a Solar Powered Explosion Proof LED Light that is an ideal lighting solution for remote areas and standalone applications where connection to external power is either impractical or unavailable. This explosion proof LED light is powered by a 8aH sealed lead acid battery that is recharged by a 30 watt solar panel. Light output comes from a 12 watt LED lamp that produces 1,600 lumens. The light runs for 12 hours when the battery is fully charged. Charging time for the lead acid battery is 5 hours when exposed to direct sunlight. Indirect sunlight will extend the charge time. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. As with all solar powered equipment, charging time is affected by the amount of available ambient light. When ambient light levels drop below a certain level, such as on cloudy days, the unit will not recharge as quickly. This solar panel can be equipped with either a day/night sensor and a motion sensor or with an on/off switch. The day/night sensor is programmed to activate the solar panel in the evening and to shut it off during the day while the motion sensor will activate the panel upon detecting motion. The on/off switch will activate and shut off the solar panel according to the operator`s preferences. The operator can switch between modes with a toggle switch. The battery pack is contained within the solar panel, not the light. The illumination produced by the explosion proof LED light will cover an area approximately 55`L x 55`W when mounted 12 feet from the ground. Mounting options include ceiling, wall and pendant mounting for the lamp fixture and flat surface or round/square pole mounting such as on utility poles or structure supports for the solar panel.
Mounting
Round Pole Square Pole Surface
This hazardous area light (Lamp Fixture only) is UL Listed Class I Division 1 Groups C and D, Class I Division 2 Groups A, B, C, D, and Class II Division 2 Groups F and G. These lights are also compliant with NEMA 4X standards and marine-rated for use in salt water environments. The high power LED cluster is protected by an internal cooling fin array that reduces heat build for longer LED life and higher light output consistency. An internal DIP switch allows operators to choose from steady on, single flash or double flash modes. This explosion proof LED light contains a LED bulb that can serve to illuminate small works areas or draw attention to towers and other structures from a distance. This explosion proof LED light can be configured for steady burn or strobing applications. The housing on this LED light is constructed to NEMA 4X standards and is marine rated for salt water environments. The cast aluminum housing is made of high strength copper-free aluminum alloy with a baked powder epoxy finish and is shown with a wall mount configuration, but can be configured with a pendant or ceiling mount as well. The fixture ships with 120 feet of 8/2 SOOW cable and custom lengths are available upon request. Please contact us for special requirements. NOTE: Larson Electronics has further upgraded the options available with this light. We expect the light to be mounted separately from the panel. This means the solar panel can be mounted in direct sunlight (not in the hazardous area) while the light is mounted in a hazardous area workspace. Standard installation for explosion proof lighting, including threaded rigid pipe to the LED light fixture and appropriate seal-offs, etc. are required. Larson Electronics offers a Class I, Division 2 rated panel solution for an additional cost. This incorporates a class rated panel, charge controller, and sealed battery solution. This allows the panel to be installed within C1D2 environments. No C1D1 rated solar panels exist, so the panel must be located outside the C1D1 environment in either panel solution offered.
