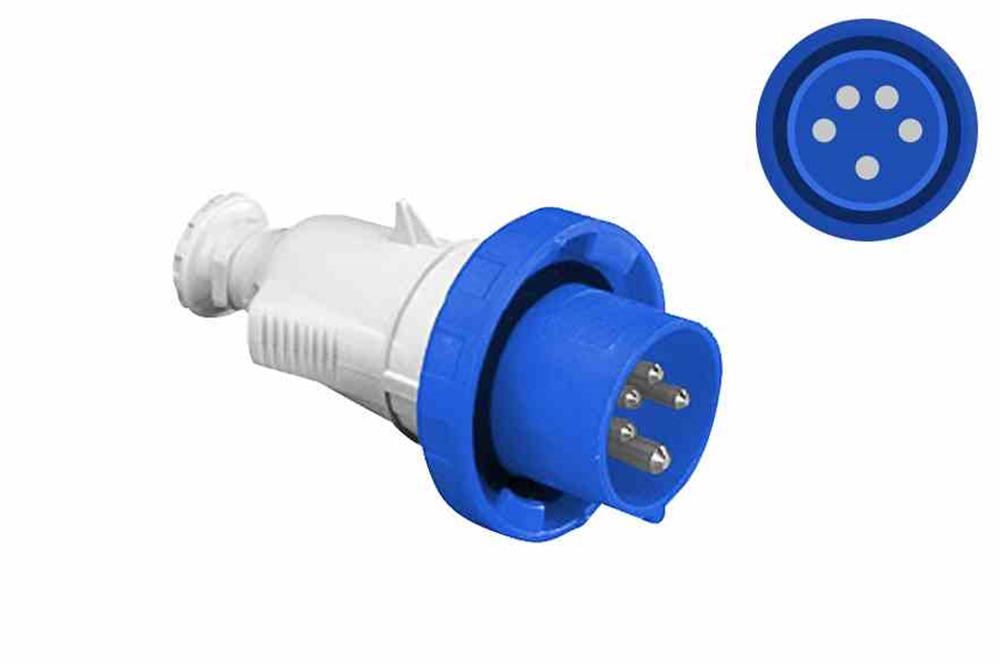

Industrial Pin and Sleeve Plug - 32 Amp - 208Y/120 3PH - 4P5W 3P+N+E - IP67 - Hinged Cover - 60309

LARSON ELECTRONICSSKU: PL3-GAU-120.208V-4P5W-32A-P-IP67
filler

Prix:
Prix réduit$384.00

Description

Specifications / Additional Information
GAU-120.208V-4P5W-32A-C-IP67 Water Tight Pin and Sleeve Connector Certifications - Compliance
Device Series: IEC 60309 (International) IEC 60309
Device Type: Plug IP67 Rated Weatherproof
Dimensions: - IK07 Rated Drop Resistant
Weight: - Flame Retardant (UL94 V2)
Amperage Rating: 32A CE Certified
Voltage: 208Y/120 RoHS Certified
Frequency: 50/60 Hz Certified for Full Load Interrupting
Phase: 3-Phase
Configuration: 4P5W (3P+N+E) Mating Receptacle: GAU-120.208V-4P5W-32A-R-IP67
# of Poles: 4-Pole Mating Connector: GAU-120.208V-4P5W-32A-C-IP67
# of Wires: 5-Wire
Max Voltage Rating: 250V 3PH
Clock Hour: 9H
Conductor Range: #12 AWG to #8 AWG
Current Interrupting: Certified for current interrupting at full rated current
Operating Temperature Range: -25°C to +65°C
Temperature Rise: Max +30°C
Waterproof Rating: IP67, NEMA 4X
Shock Resistance: IK09
Flammability: V-2 Rated
Insulation Resistance: 500V for 1 min; >= 5MΩ
# of Operations: > 1000 @ Full Load Breaking
Seals: Neoprene
Contacts Material: Brass
Housing Materials: Toughened PVC
Color: Blue Int'l: 1-214-616-6180
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '
The Larson Electronics GAU-120.208V-4P5W-32A-P-IP67 Weatherproof Pin and Sleeve Plug is a thirty-two amp and 208Y/120 Volts AC rated cord cap approved for industrial use. This 4-pole, 5-wire plug is designed to provide a secure connection for electrical equipment within the general industrial environment. This pin and sleeve plug features an IP67 waterproof and IEC 60309 rating, and is weatherproof. This weatherproof 4-pole 5-wire pin and sleeve plug is rated for 32 amps and 208Y/120V AC. This weatherproof industrial plug features toughened nylon construction, recessed brass pins, and a 32 amp maximum current rating. The GAU-120.208V-4P5W-32A-P-IP67 is IP67 and IEC 60309 rated. Suggested Applications: Manufacturing, industrial, warehouse, lighting, motor-generator sets, compressors or wet areas.
