Larson 240W High Intensity LED Light - 32,400 Lumens - 120-277V AC - Outdoor Rated - SS Mount Bracket

Larson ElectronicsSKU: PL3-GAU-HB-250W-LED-SS
filler

Prix:
Prix réduit$5,662.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please email us at info@purilite.ca to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

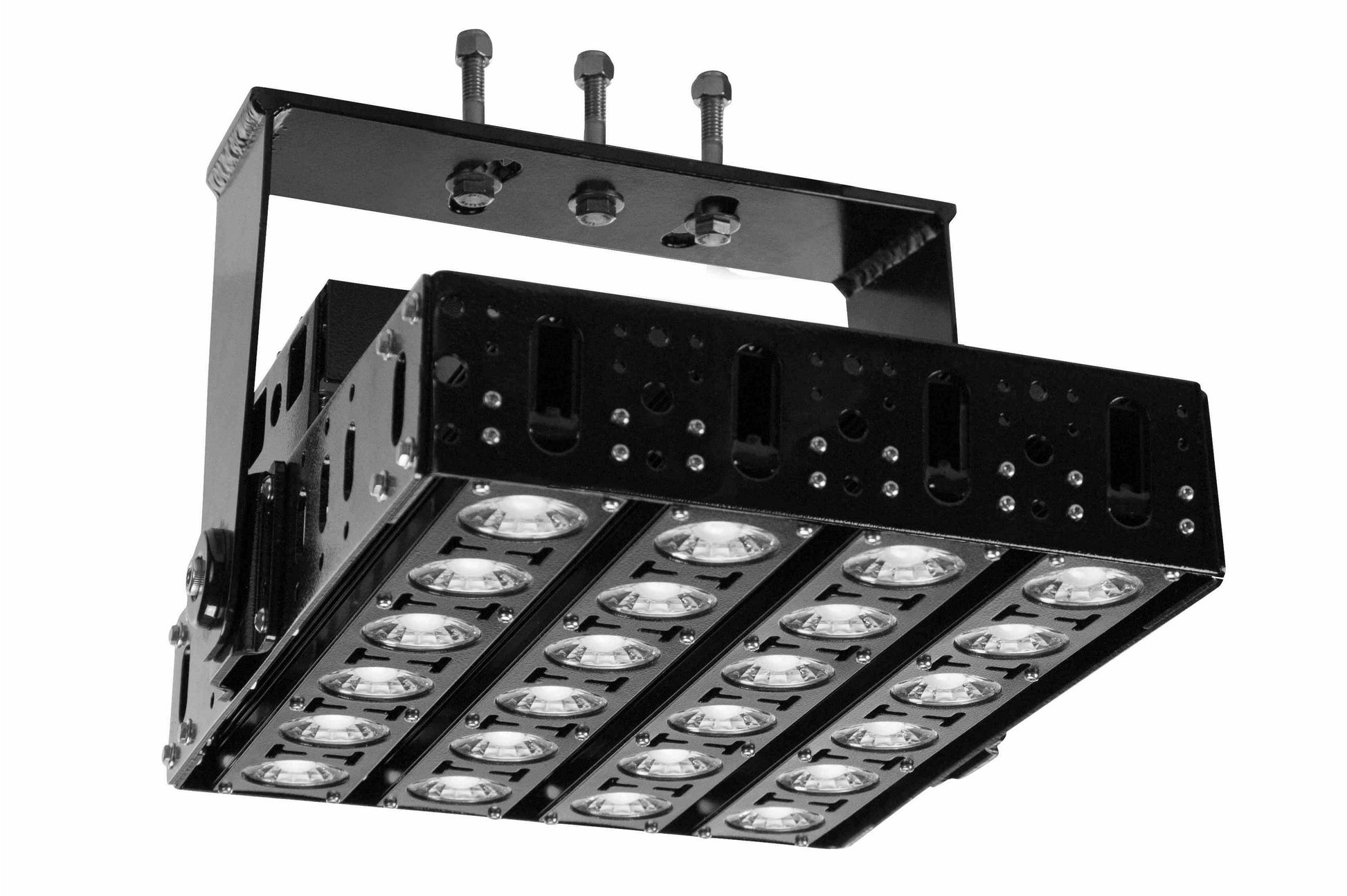

The GAU-HB-250W-LED-SS from Larson Electronics is a High Intensity LED Light that is ideal for flood lighting, high mast lighting, light towers, as well as industrial and outdoor lighting applications. Producing 32,400 lumens, 120-277V AC compatibility and an IP67 waterproof rating, this LED lamp provides operators with a rugged and powerful LED alternative to 600 watt metal halide lamps while using little power. The unit is supported by a stainless steel mounting bracket with vibration dampeners for stable operation.
The GAU-HB-250W-LED-SS LED light from Larson Electronics produces 32,400 lumens of high intensity light. Twenty-Four Cree high output LEDs producing 1,350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights.
GAU-HB-250W-LED-SS lights are ideal replacements for fragile and hot running 600 watt metal halide lamps. They offer low power requirements, high durability and a versatile mounting system that makes these LED lamps a superior lighting solution for demanding applications where power and reliability is critical.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Heat Management:
Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours.
Durability:
As well as unparalleled heat control, the GAU-HB-250W-LED-SS series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
Mounting:
The GAU-HB-250W-LED-SS is equipped with a stainless steel mounting bracket constructed of 304 stainless steel that allows the light to be attached to flat surfaces and adjusted through 160° of vertical movement. To adjust the unit after mounting, the user simply loosens the set screws located on either side of the unit, moves it into the desired position, then re-tightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning. Vibration dampeners can be found on the mounting system, which is designed to reduce the impact of vibrations during operation.
Applications:
This LED fixture is suitable for high output applications such as light towers, cranes, offshore, mining, high bay lighting, warehouses and any application requiring quality lighting from a mounted position. The heavy duty design and high power of these LED lights also makes them suitable for the following: high mast lighting, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks and parking lots.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Lamp Type: Cree LED
Dimensions: 18"L x 13"W x 8.23"D
Weight: 18.19 lbs
Voltage: 90-205V AC, 50/60 Hz & 127-431V DC
Total Watts: 240W
Total Lumens: 32,400
Luminous Efficiency: 135 Lm/W
Beam Configurations: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood
LED Color Temperature: 5000K or 4000K
LED Life Expectancy: 80,000 Hours
Optics Efficiency: 98% - PMMA High Transmittance Optics
LED Drive: 90%
Ambient Temperature Range: -40°C to +80°C
Wiring: 10` Pigtail w/ Flying Leads
Mounting: Stainless Steel Mounting Bracket w/ Vibration Dampeners
Materials: Die Cast Aluminum Housing, PMMA Optics
Housing Color:  Powder Coated Black
