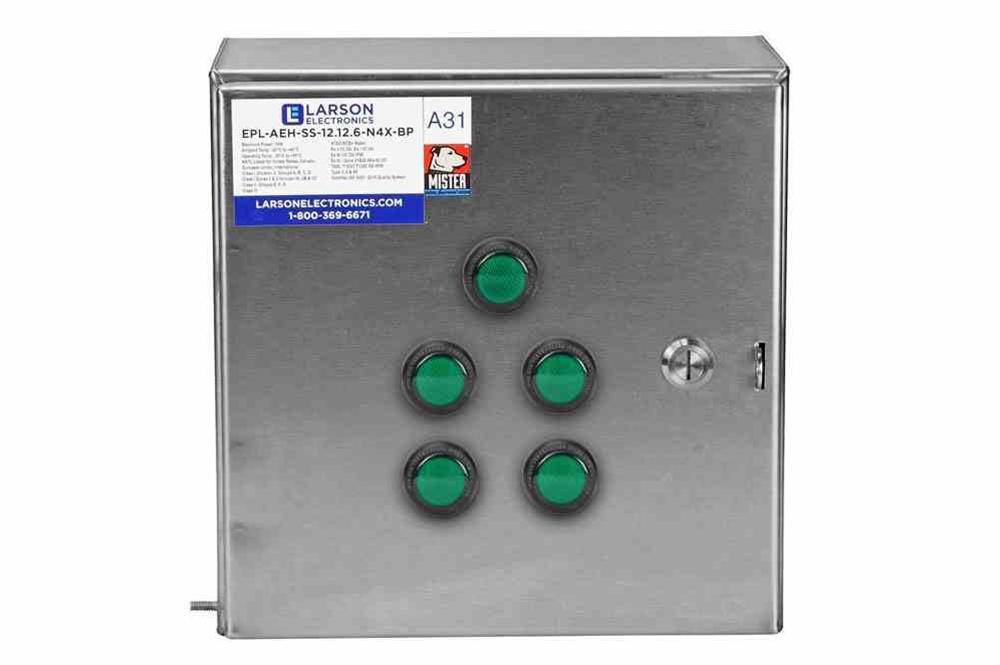

Hazloc Stainless Steel Control Light Station - C1D2 - (5) LED Pilot Lights - TB - IP66/N4X

LARSON ELECTRONICSSKU: PL3-HACS-SS-5XPL.G-TB.21-M1
filler

Prix:
Prix réduit$4,638.00

Description

Specifications / Additional Information
HACS-SS-5XPL.G-TB.21-M1 ATEX Rated Control Station Ratings
Listing: United States, Canada, European Union, International Class I, Division 2 Groups A,B,C,D
Internal Dimensions: 10.93"-H x 10.93"-W x 5.74"-D Class I, Zones 1&2 Groups IIA,IIB,IIC
External Dimensions: 12"-H x 12"-W x 6"-D Class II, Groups E,F,G
Distance Between Mounting Lugs: 10.69" or 13.63" - Depending on Direction of Lug Class III
Weight: - ATEX/IECEx Rated
Rated Voltage: 240V AC Ex e IIC Gb, Ex i IIC Gb
Pilot Lights: (5) LED [Green] Ex tb IIIC Db IP66
LED Expected Lifespan: 50,000+ Hours Ex tb / Zone 21&22 AEx tb IIIC
Ambient Temp: -20°C to +40°C T80C /T100C/T130C Db IP66
Operating Temp: -50°C to +60°C Type 3, 4 & 4X
Cover Type: Hinge - Concealed, Removable Pins
External Ground Lug: Included
Backplate: Included
Body and Cover Material: 316 Stainless Steel
Gasket Material: One-piece High Temp Closed Cell Silicone
Mounting: Surface or Wall
Wiring Connections: Terminal Block (21 Spaces)
Terminal Block Ratings: 250V, 10A per Contact
Wire Size: Up to 12 AWG
Maximum Conduit/Gland Openings: 3.5" NPT (M100)
Custom Options (Not Included): Panel ID Tag 316 SS, Tamperproof Latches, Key Latches, Copper Ground/Earth Bars, Hubs (Size and Location), Glands, Backplate, Terminals and More
' Product Overview '
The HACS-SS-5XPL.G-TB.21-M1 from Larson Electronics is a Hazardous Location Stainless Steel Control Light Station that can be installed in flammable environments. This IP66-rated device is ideal for Class I, Division 2 sites, as well as ATEX/IECEx-rated environments and indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The HACS-SS-5XPL.G-TB.21-M1 is recommended for use in Class I, Division 2 and ATEX/IECEx rated combustible sites. This control station contains five green LED pilot lights, which are rated at 240V AC. Equipped with a hinged cover that is concealed and contains removable pins, the unit measures 12" x 12" x 6" (external dimensions). Internal dimension measurements include 10.93" x 10.93" x 5.74". The control station includes an external ground lug and backplate. The heavy-duty light station is constructed of 316 stainless steel, with 316 stainless steel hardware and a one-piece, high temperature silicone gasket. A NEMA 4X waterproof rating indicates that the hazardous location device provides a degree of protection against the ingress of dust, dirt and fibers as well as resistance against the harmful and corrosive effects of water spray, sleet, snow and rain. This level of protection also prevents damage caused by the formation of ice. The IP66 rating associated with the unit offers complete dust tight protection and deters damage caused by powerful jets (12.5 mm nozzle) from all angles. The hazardous location stainless steel control stations in this series can be customized with the following components: panel ID (316 stainless steel), tamperproof latches, key latches, copper ground/earth bars, hubs (quantity/location), glands, backplates, terminals and more. Wiring: The HACS-SS-5XPL.G-TB.21-M1 contains a terminal block with 21 spaces for wiring connections. The terminal block is rated at 250V/10 amps per contact and accepts up to 12 AWG wiring. Hubs: This unit features a maximum conduit opening of 3.5" NPT (M100). Mounting: The HACS-SS-5XPL.G-TB.21-M1 is compatible with surface or wall mounting applications via four bi-directional removal mounting lugs at the back of the unit. Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities, paper mills, grain facilities, marine sites, docks, pumping stations, food processing and any other sites where a hazardous location or ATEX-rated device is needed.
