Explosion Proof LED Pivoting Light - C1D2 - 2-foot, 2-lamp - Switch - LED T series Style (Fluorescent Replacement)
Explosion Proof LED Pivoting Light - C1D2 - 2-foot, 2-lamp - Switch - LED T series Style (Fluorescent Replacement)
| HAL-24-2L-LED-BMSW-SW.IT Hazardous Area LED Lamp | Ratings |
| NRTL Listed for United States & Canada | Class I, Division 2, Groups A, B, C, D |
| Lamp Technology: LED | NRTL Certified to UL 595 Outdoor Marine Type (Saltwater) |
| Lamp Qty: (2) | NRTL Certified to UL 1598A Marine Type |
| Dimensions: W-7" L-25 1/2" H-6 1/8" | California Title 24 Compliant |
| Weight: 14 lbs | Power Switch |
| Voltage: Universal 120-277V AC 50/60 Hz |  |
| Total Watts: 28W | |
| Single-lamp Watts: 14W | |
| Total Lumens: 3,500 lms | |
| Single-lamp Lumens: 1,750 lms | |
| Luminous Efficiency: 125 Lumens per Watt | |
| LED Lamp Life Expectancy: 50,000+ Hours | |
| Color Temp: 5600K, 4500K or 3000K | |
| Color Rendering Index: >80 | |
| Lamp Type: - | |
| Lamp Base: - | |
| Replacement Lamp: - | |
| Beam Angle: 150° | |
| Power Efficiency: 90% | |
| Power Factor: >0.95 | |
| Switch Type: 2-position Power Switch @ End of Fixture | |
| Ambient Operating Temp Range:-30° C to +85°C | |
| Operating Temp Rating: T4A | |
| Minimum Operating Temp: -30°C | |
| Maximum Case Temp: +90°C | |
| Housing Material: Sheet Aluminum | |
| Lens Material: Acrylic | Intl: 1-214-616-6180 |
| Mounting: Back Mount Swivel Bracket | |
| Wiring Hub: 1/2" or 3/4" Threaded |

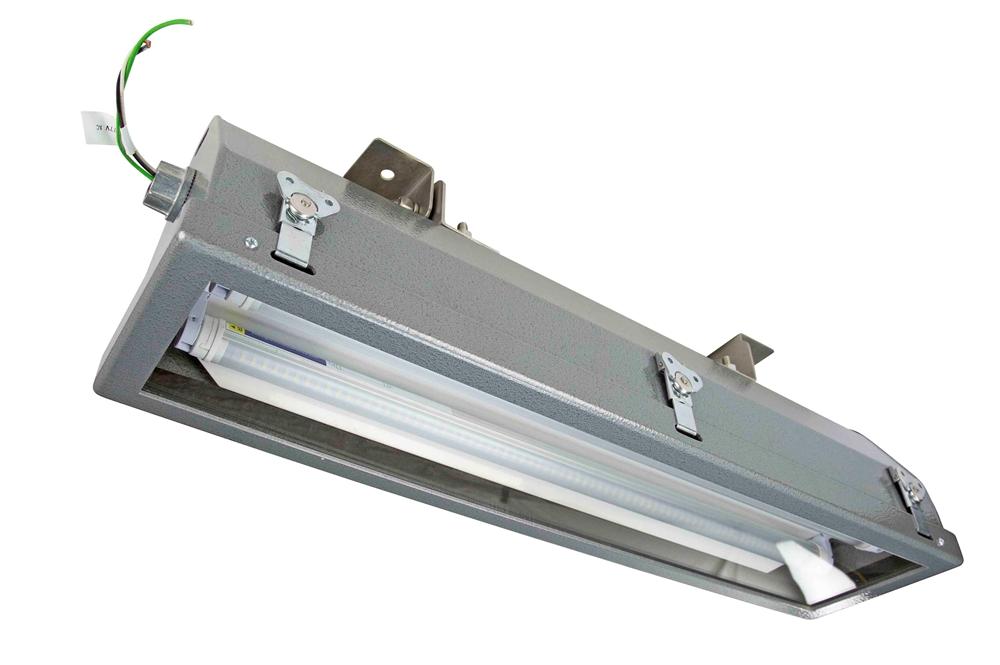

The Larson Electronics HAL-24-2L-LED-BMSW-SW.IT Hazardous Area LED Light Fixture is Class I, Division 2 Groups A, B, C and D rated and is ideal for hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. This 28-watt LED fixture comes with an integrated 2-position switch at the end of the lamp, below the conduit entry hub.
The HAL-24-2L-LED-BMSW-SW.IT fixture is a 2 foot long, 2 lamp Class I, Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with two of our high powered 14-watt LED lamps. During use, the LED light provides 3,500 lumens of output with a 5600K, 4500K or 3000K color temperature rating. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with four zinc coated steel draw latches.
For streamlined maintenance, this explosion proof LED light contains an integrated 2-position power switch, which is located at the end of of the lamp, below the conduit entry hub. The accessible location of the switch enables operators to cut power off before opening the unit for maintenance, replacement, repair/upgrade or inspections.
The fixture is constructed of copper free aluminum alloy and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture can be configured to run on 120 to 277V AC and is approved for use marine environments. The HAL-24-2L-LED-BMSW-SW.IT is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
|
||||
| We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, increases lamp life to an extreme 50,000 hours and helps this LED fixture maintain a T4A temperature rating. The solid state design of the included LED lamps give this fixture superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T8 bulbs. The 14-watt LED lamps produce more illumination than standard T8 bulbs, but draw only 3/4 of the current. The current generation of Larson Electronics LED T-series style bulbs produce 15% more light than standard T8 bulbs. This fixture is multi-voltage capable (not multi-tap) and works on the following voltages: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ. Suggested Applications: Threaded hub size options include: 1/2" or 3/4" NPT. Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two bolts on either side of the bracket. The bolts act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be pivoted by loosening the that hold the bracket to the mounting peg. This fixture allows 45 degrees of pivot from the 90 degree point. Suggested Applications: Aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants and more. |
