30W LED Fixture for Hazardous Location Lighting - 120-240V - C1D2 - 3900 Lumens

LARSON ELECTRONICSSKU: PL3-HAL-36-25W-LED-JB-1227
filler

Prix:
Prix réduit$1,832.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
HAL-36-25W-LED-JB-1227 Hazardous Location LED Lighting Approvals/Ratings
Lamp Type: LED Class I Division 2 Groups A, B, C or D
Dimensions: Lamp 35.88"L x 2.68"W x 1.69"D CSA 22.2 No. 250.0
Weight: 2.1lb | 0.9 k g UL 1598
Watts: 30W IP54 Ingress Protection
Voltage: 120-240V AC T3 Temperature Rating
Lumens: 3900
Luminous Efficacy: 130 Lm/W
Lamp Life Expectancy: 100,000 Hours
CRI: 75
Light Color: 6500K
Beam Type: 100° Flood
Mounting: Standard Triangle End Brackets
Temp Range: -40°C - +85°C
Wiring: 5Ft SOOW cable - EPP-15A EXP Plug E-mail:
' Product Overview '

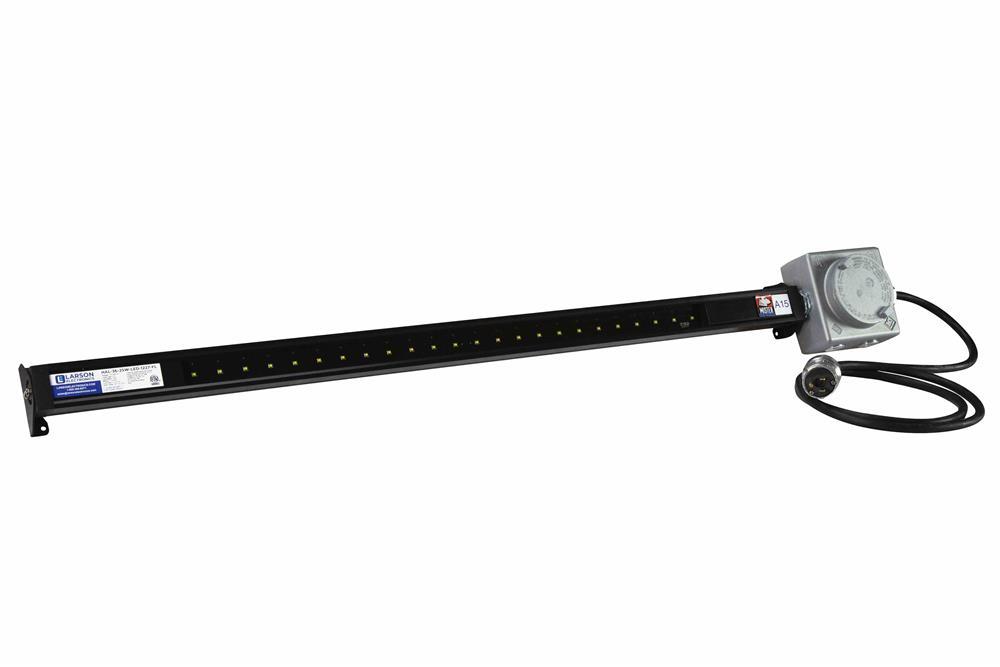

Buy American Compliant The HAL-36-25W-LED-JB-1227 from Larson Electronics is a High Voltage Hazardous Location Lighting Solution that is approved for Class I Division 2 environments and UL 1598 compliant for use in wet locations. This powerful 35.88" long LED strip light produces 3,900 lumens, operates from 120 to 240V AC, and is suitable for a variety of applications. The HAL-36-25W-LED-JB-1227 is designed to provide a high output and ruggedly durable lighting solution for applications where Class I Division 2 compliance is required. This explosion proof light can be operated with voltages ranging from 120V to 240V and includes 5 feet of connecting lead with standard two wire configuration. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to splashing water and limited dust ingress. These units are configured in a 35.88" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable HID and halogen light fixtures. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Durability/Mounting: The HAL-36-25W-LED-JB-1227 hazardous location LED light is constructed of extruded aluminum with a tough powder coat finish for high strength and durability. The housing is IP54 rated, providing limited ingress protection against dusts, and basic protection against splashing water such as rain. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wetness or dusty conditions are commonly encountered. The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 130 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs. Mounting for this unit is provided by two standard adjustable end brackets that allow operators to mount the light to flat surfaces and then adjust the light 170° vertically for the best placement. The entire assembly weighs 2.1 lbs and measures 35.88 inches in length, and 2.68 inches wide and 1.69 inches deep, making it ideal for mounting in areas where space is limited and a low profile fixture more readily installed. Wiring/Power: These hazardous location LED lights are equipped with 5 feet of cord containing an explosion proof 5-15 plug rated at 15 amps. These lights operate from 120-240 volt AC current at 25 watts drawing 0.21 amps on 120 VAC and 0.11 amps on 240 VAC. Versatility: The HAL-36-25W-LED-JB-1227 is ETL approved for Class I Division 2 groups A, B, C and D locations. This unit carries an IP54 water resistant rating ensuring protection against limited ingress from dusts, dirt, and basic protection against light water spray landing directly on the fixture. This light is ideal for indoor or outdoor applications and industrial operations with hazardous location classification where dusty or wet conditions are commonly encountered.
