Explosion Proof Class I, Div. II LED Fixture - 4ft. - 2, T-Style LED Lamps - 220Volts, 50/60Hz

Explosion Proof Class I, Div. II LED Fixture - 4ft. - 2, T-Style LED Lamps - 220Volts, 50/60Hz

$1,922.00 CAD
$1,922.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
HAL-48-2L-LED- 220V Hazardous Area Ratings
NRTL Listed for United States & Canada Class 1 Division 2, Groups A, B, C and D
Dimensions: W-7"  L-49 3/4"  H-6 1/8" NRTL Certified to UL 595 Outdoor Marine Type (Saltwater)
Weight: 33 Lbs NRTL Certified to UL 1598A Marine Type
Total Watts: 48 watts California Title 24 Compliant
Voltage: 220Volts, 50/60Hz
Low Voltage: N/A
LED Lamp Life Expectancy: 50,000 Hours
Efficiency: 90 Lumens per Watt
Operating Temp Range: T4A rated -30 C to 85 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C
Beam Angle: 150 degrees
Color Temp: 5300K- Color Rendering Index-75
Mounting: Bracket Standard, Sliding Bracket Optional
Wiring Hub: 1/2" or 3/4" threaded
Warranty: YES- 3 Years*


' Product Overview '

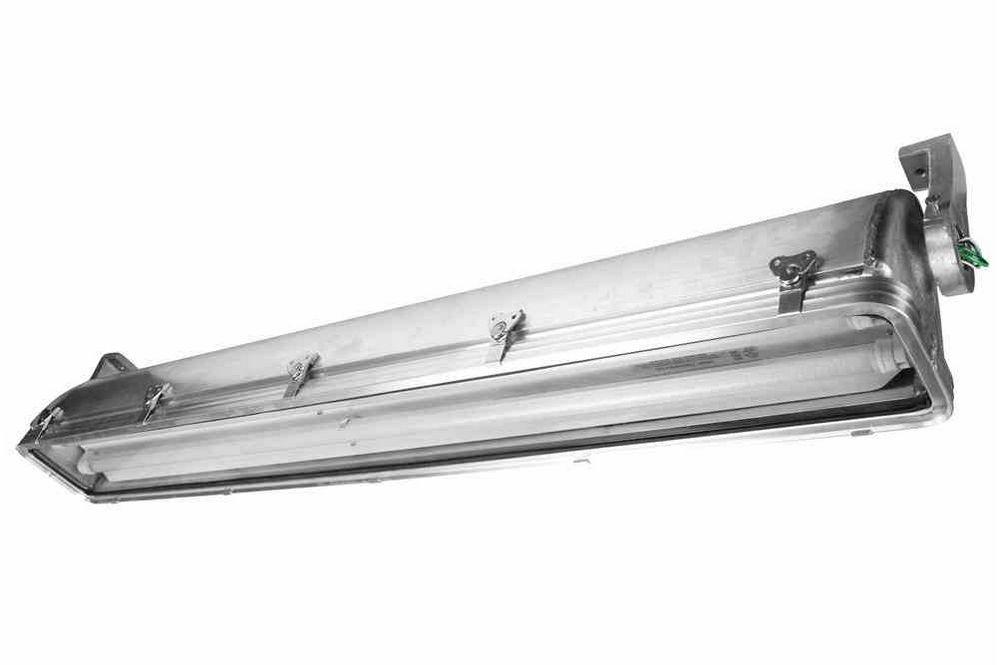

Made in the USA The Larson Electronics HAL-48-2L-LED-220V Hazardous Area LED Light Fixture is NRTL Listed for United States and Canada Class 1 Division 2 Groups A, B, C and D - NRTL Certified to UL 1598A listed, has a T4A temperature rating and ideal for wet/marine and open air hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. This high voltage 220V version of our HAL-48-2L-LED fixture is a 4 foot long, 2 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 24 watt LED lamps. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is configured to run on 220VAC, 50/60 Hz and is NRTL Certified to U.L. 595 and UL 1598A Marine Type approved for use in marine environments. The HAL-48-2L-LED-220V is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors my occasionally be present.
Click Photo to Enlarge
Surface Mount Pendant Mount
We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, increases lamp life to an extreme 50,000 hours and helps this LED fixture maintain a T4A temperature rating. The solid state design of the included LED lamps give this fixture superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T8-bulbs. The 24 watt LED lamps produce 15% more illumination than standard T8 bulbs, but draw only 3/4 of the current. This fixture is configured to run on 220Volts, 50/60Hz and is both NRTL Listed for U.S. and Canada. Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. Mounting brackets are removable. A single through hole enables the operator to install the light to any surface. A sliding bracket mount is available so operators can retrofit this LED light fixture to use the pre-existing mounting holes from other fluorescent fixtures. Below, in the related items area you can order the sliding mount bracket option. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Superior LED Benefits
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Relamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps. 5. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 6. 1/2" or 3/4", threaded access hole for wiring conduit.  7. Units can be wired end to end in series.   1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing.  11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
