C1D2 LED Pivoting Light - 4' 2 Lamp - Offshore LED Rig Light - Meets USCG Specs - 8" Extension Arms
C1D2 LED Pivoting Light - 4' 2 Lamp - Offshore LED Rig Light - Meets USCG Specs - 8" Extension Arms
Sold by: LARSON ELECTRONICS
| HAL-48-2L-LED-BMSW-SWAM-8IN Hazardous Area | Ratings/Approvals |
| NRTL Listed for United States & Canada | Class I Division 2, Groups A, B, C & D |
| Dimensions: 51.1"L x 7.09"W x 16.65"H | NRTL Certified to UL 844 |
| Weight: 22.2 Lbs | NRTL Certified to UL 1598A Marine Type |
| Total Watts: 56 watts | Listed for Canada |
| Total Lumens: 6720 | T4 Temperature Rating |
| Voltage: Universal 120-277V AC 50/60Hz or 12-24V AC/DC | Meets USCG Specs |
| LED Lamp Life Expectancy: 50,000 Hours | California Title 24 Compliant |
| Luminous Efficiency: 120 Lumens per Watt | |
| Operating Temp Range: T4A rated -40°C to +65°C | |
| Beam Angle: 150° | |
| Color Temp: 5600K or 4500K - Color Rendering Index-75 | Toll Free:Â 1-800-369-6671 |
| Mounting: Back Mount Swivel Bracket w/ 8" Extension Arms | Intl:Â 1-214-616-6180 |
| Wiring Hub: 1/2" or 3/4" threaded | Fax:Â 1-903-498-3364 |
| Materials: Sheet aluminum housing, acrylic lens | E-mail:Â |
Made in the USA

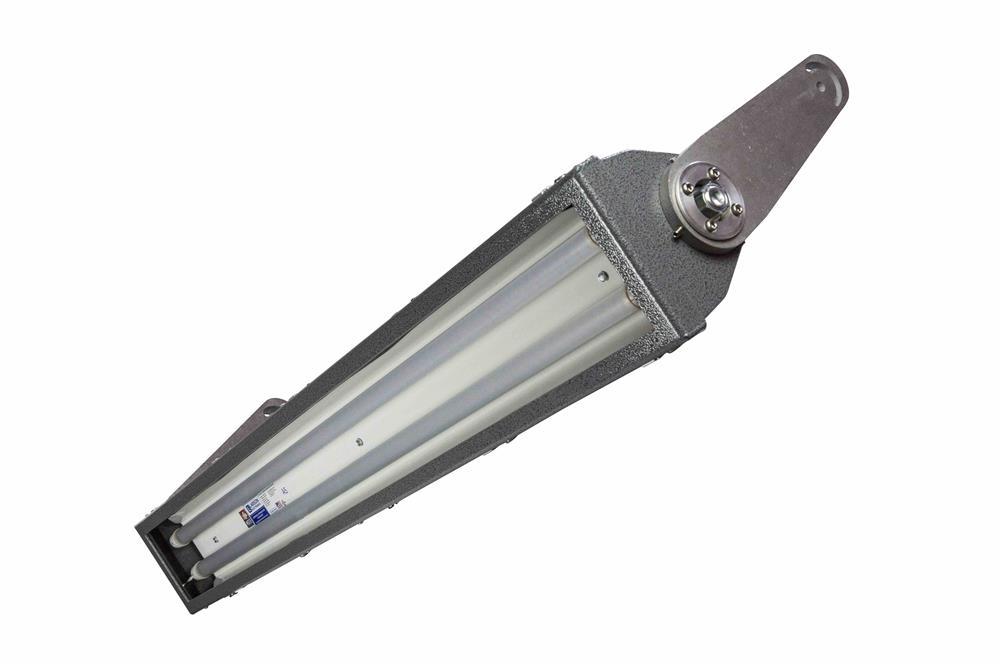

The Larson Electronics HAL-48-2L-LED-BMSW-SWAM-8IN Hazardous Area LED Light Fixture is NRTL Listed for United States and Canada Class I Division 2 Groups A, B, C and D - NRTL Certified to UL 1598A listed, has a T4A temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. This hazardous location LED light carries a United States Coast Guard approval, making it ideal for applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers. The HAL-48-2L-LED-BMSW-SWAM-8IN features 8" extended mount arms allowing for 8" of travel from the mounting surface and 270° of adjustability.
This four foot long, two lamp LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The HAL-48-2L-LED-BMSW-SWAM-8IN fixture is a 4 foot long, 2 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 28 watt LED lamps. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with ten zinc coated steel draw latches.
We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light’s performance. This two lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The four foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs.
This fixture carries a T4A temperature rating and is NRTL Certified U.L. 595 and UL 1598A Marine Type approved for use marine environments. The fixture is constructed of copper free sheet aluminum and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. The HAL-48-2L-LED-BMSW-SWAM-8IN is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.Â
|
||||||||||||||||||||||||||||||||||||||||||||||
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile. There is no ballast in this unit and the included  LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs.
LED Benefits:Â Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 3360 lumens at 120 lumens per watt, for a combined 6720 total lumen light output. A HAL-48-2L-T8 hazardous location fluorescent light, with a combined total of 64 watts, draws 0.54 amps at 120 volts AC. This LED version of the same light, with a total of 56 watts, draws only 0.47 amps at 120 volts AC. The HAL-48-2L-LED-BMSW-SWAM-8IN is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any modifications. We also make a 12/24V AC/DC version for low voltage applications for AC or DC power.
|
