Class I Division 2 LED Pivoting Light - Motion + Day/Night Sensor - Oil Rig Fluorescent Replacement

Class I Division 2 LED Pivoting Light - Motion + Day/Night Sensor - Oil Rig Fluorescent Replacement

Sold by: LARSON ELECTRONICS

$1,888.00 CAD
$1,888.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
HAL-48-3L-LED-BMSW-DNMS Hazardous Area LED Rig Light Ratings/Approvals
NRTL Listed for United States & Canada Listed for United States and Canada
Dimensions: 51.1"-L x 7.09"-W x 8.65"-H Class I, Division 2, Groups A, B, C, D
Weight: 23.4 Lbs NRTL Certified to UL 844
Voltage: Universal 120-277VAC 50/60 Hz or 11-25V AC/DC NRTL Certified to UL 1598A Marine Type
Total Watts:  84 watts (28 Watts per Lamp) Certified to Canadian Standards
Total Lumens: 10,500 (3,500 per Lamp) Meets USCG Specifications
LED Lamp Life Expectancy: 50,000 Hours LEL Listed LED Lamps
Luminous Efficacy: 125 Lumens per Watt Made in the USA
Color Temp: 5600K or 4100K
Color Rendering Index: >80
Beam Angle: 150°
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range:-40° C to +65°C
Operating Temp Rating: T4 Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Housing Material: Sheet Aluminum
Lens Material: Shatter/Heat Resistant Acrylic Lens Toll Free: 1-800-369-6671
Finish: Corrosion Resistant Industrial Powder Coating Intl: 1-214-616-6180
Mounting: Back Mount Swivel Bracket Fax: 1-903-498-3364
Wiring Hub: 3/4" NPT E-mail:
' Product Overview '

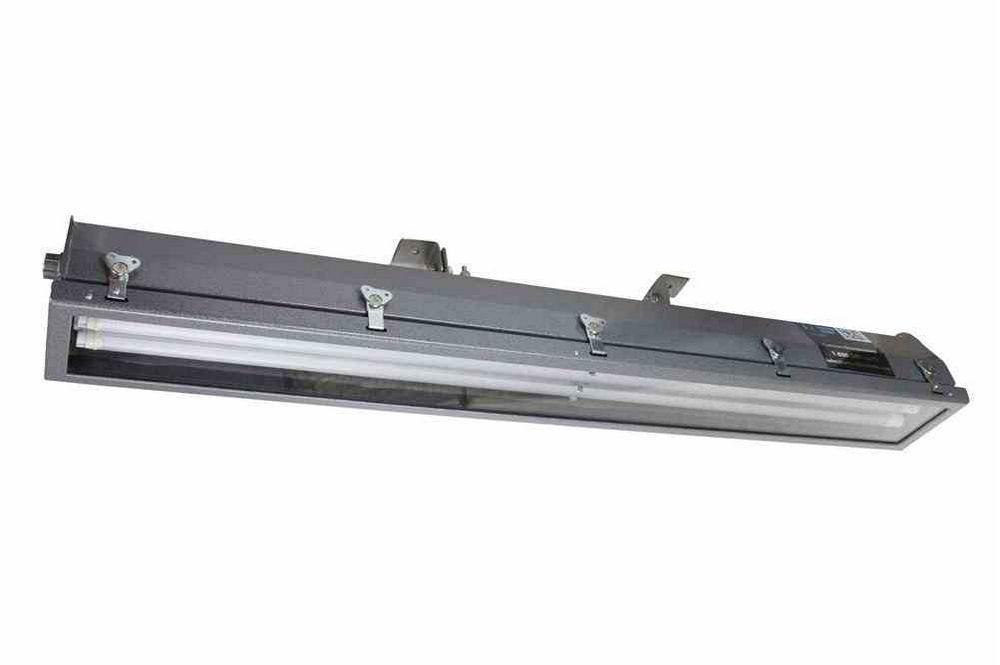

Made in the USA The Larson Electronics HAL-48-3L-LED-BMSW-DNMS Hazardous Area LED Light Fixture features a Motion + Day/Night Sensor and is NRTL Listed for United States and Canada Class I Division 2 Groups A, B, C and D - NRTL Certified to UL 1598A listed, has a T4A temperature rating and is ideal for hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. The HAL-48-3L-LED-BMSW-DNMS fixture is a 4 foot long, 3 lamp, Class I Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with three of our high power 28 watt LED lamps. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with ten zinc coated steel draw latches. The fixture is constructed of copper free aluminum alloy and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture can be configured to run on 120 to 277VAC as well as 12-24V AC/DC and is NRTL Certified to UL 844 and UL 1598A Marine Type approved for use marine environments. The HAL-48-3L-LED-BMSW-DNMS is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo to Enlarge
We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight and overall complexity of installation. There is no ballast in this unit and the included  LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting. Sensor Technology: The HAL-48-3L-LED-BMSW-DNMS is equipped with an innovative and powerful day/night + motion sensor. This sensor, which is located inside the light fixture itself, allows the HAL-48-3L-LED-BMSW-DNMS to operate in one of several different and versatile modes. This LED light fixture can be set to be motion activated, day/night activated or in a combination of motion sensing and day/night modes. This high-tech sensor is also highly adjustable and allows operators to modify the following settings: motion sensor sensitivity, motion sensor time-delay and the intensity output level of the fixture. Having this degree of flexibility in operation and settings offers operators an incredibly versatile light fixture. Sensor Versatility: The impressive versatility of the motion + day/night sensor found in the HAL-48-3L-LED-BMSW-DNMS LED light fixture allows for a lot of creativity in the setup of a single one of these light fixtures. However, the versatility is further increased when multiple units are to be installed together such as in a parking garage or other similar structure. Operators can take advantage of the sensor versatility to set up an energy efficient and automated lighting setup. Take a parking garage for example. Operators would be able to set up a sequence of HAL-48-3L-LED-BMSW-DNMS fixtures with alternating lights on seperate circuits. The first circuit would have sensors set to a lower lux level than the fixtures on the second circuit. This hypothetical setup would allow half the lights to come on as daylight began to fade and the rest of the lights would only come on once complete darkness had fallen. The fixtures could then be adjusted for motion sensing which would allow selected fixtures to power on when pedestrian or vehicle movement was detected and then turn off after an operator chosen interval to conserve energy. This is just one example of the flexibility and versatility that can be achieved with the HAL-48-3L-LED-BMSW-DNMS . The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 3,500 lumens at 125 lumens per watt, for a combined 10,500 total lumen light output. An HAL-48-3L-BMSW hazardous location fluorescent light, with a combined total of 96 watts, draws 0.8 amps at 120 volts AC. This LED version of the same light, with a total of 84 watts, draws only 0.7 amps at 120 volts AC. This results in a lower amp draw while still providing increased reliability and light output. The HAL-48-3L-LED-BMSW-DNMS is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any modifications. This includes commonly found voltages such as 120V 60Hz, 220V 50Hz, 240V 60Hz, and 277V 60Hz. We also make a 12/24V AC/DC version for low voltage applications for AC or DC power.
Energy Consumption Comparison
T5HO T8 LED
Wattage 162 watts 96 watts 84 watts
Amp Draw @ 120V AC 1.35 amps 0.80 amps 0.70 amps
Amp Draw @ 220V AC 0.74 amps 0.44 amps 0.38 amps
Amp Draw @ 240V AC 0.68 amps 0.40 amps 0.35 amps
Amp Draw @ 277V AC 0.59 amps 0.35 amps 0.30 amps
Amp Draw @ 12V DC 13.50 amps 8.00 amps 7.00 amps
Amp Draw @ 24V DC 6.75 amps 4.00 amps 3.50 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours
Color Temperature 5000K / 4100K 4100K 4500K / 5600K
Operation cost per year (12hs/day @ 12c/kWh) $85.15 $50.47 $44.15
Standard Swivel Mounting Brackets: The light fixture mounts via two L shaped swiveling brackets. The angle of the bracket is set by tightening the nut and bolt on each bracket. The bolt and lock washer act as a set screw, securing the fixture in place once the position is set. The bracket itself is mounted via a single 3/8” bolt hole at the top the bracket. Once the brackets are mounted to a flat surface, the fixture can be pivoted by loosening the nut and bolt that hold the bracket to the fixture. This fixture allows 45° of pivot from the 90° point. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants, Offshore, Ships, Marine Applications.
Made in USA Quality Superior LED Benefits
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed streamlined ribbed corrosion-resistant, copper free extruded aluminum body for better hear dissipation and extended ballast life.  4. Aluminum extruded lens frame for greater strength 5. Relamping done via 10 draw latches, which enable the operator to unlatch the lens and access the lamps. 6. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 7. 3/4 inch, threaded access hole for wiring conduit.  8. Units can be wired end to end in series. 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing.  11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
