10W Solar Powered LED Hazardous Location Light - C1D2 30W Panel - C1D2 SS N4X Control Box - 80' Cord

LARSON ELECTRONICSSKU: PL3-HAL-LED-SOL-80C-C1D2-20C
filler

Prix:
Prix réduit$9,312.00

Description

Specifications / Additional Information
HAL-LED-SOL-80C-C1D2-20C Hazardous Location Solar Powered LED Strobe Lamp Ratings/Approvals
Listing: United States & Canada Class I, Division 2 Groups A,B,C,D
Lamp Type: LED UL 1570
Lamp Dimensions: 5.94" x 9.6" UL 595: Marine Outside Type
Solar Panel Dimensions: 11-3/8"L x 15-3/4"D UL 844: Class I, Division 2
Weight: - UL Listed to CSA 22.2-137
Voltage: 12V DC NEMA 4X
Battery: (4) 18aH Sealed Lead Acid Batteries USCG Accepted
Runtime: 12 Hours  CSA Certified
Charging Time: 5 Hours New York City Department of Buildings Approved
Panel Watts: 30W Material meets UL 94-V-0 standards for flame retardancy
Lamp Watts: 10W (7W for Colored Strobe) UL for Safety for Supplemental Requirements for Luminaries for Installation on Marine Vessels
Lumens: 1,050 C1D2 Rated Panel Assembly
LED Lamp Life Expectancy: 50,000+ Hours C1D2 Rated Control Box Assembly
Light Color Options: Red, Green, Blue, Amber or White
Beam Angle: 360°
Lighting Configuration: Strobing or Steady Burn Special Orders-Special Requirements
Housing Material: Copper-free Cast Aluminum Alloy
Finish: Baked Powder Epoxy Coating
Lamp Mounting: Wall, Ceiling or Pendant
Panel Mounting: Flat Surface / Round/Square Pole
Wiring: 80` 10/2 SOOW Cord E-mail:
' Product Overview '

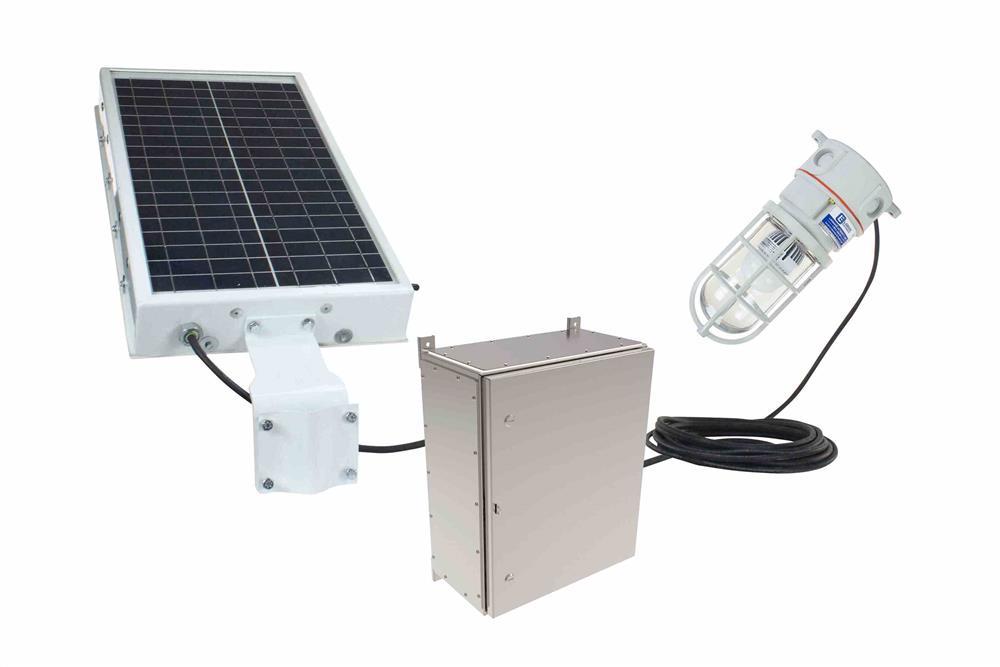

Made in Texas The HAL-LED-SOL-80C-C1D2-20C Solar Powered LED Hazardous Location Light from Larson Electronics is a reliable lighting solution for remote areas and standalone applications where connection to external power is either impractical or unavailable. Charged by a Class I, Division 2 solar panel, four 12V AC 18aH sealed lead acid batteries protected by a Class I, Division 2 enclosure, provide constant, reliable power to the LED strobe light. This hazardous location LED light is powered by four 8aH sealed lead acid batteries that are recharged by a 30-watt solar panel. Light output comes from a 10-watt LED lamp that produces 1,050 lumens. This Class I, Division 2 solar panel can be equipped with either a dusk to dawn day/night sensor, a motion sensor, an on/off switch, or configured to run 24/7. The day/night sensor is programmed to activate the solar panel in the evening and to shut it off during the day. The motion sensor will activate the panel upon detecting motion. The on/off switch will activate and shut off the solar panel according to the operator`s preferences. The color options for the HAL-LED-SOL-80C-C1D2-20C are red, blue, green, amber and white. The illumination produced by the Class I, Division 2 LED light will cover an area approximately 55€™ long x 55€™ wide when mounted 12 feet from the ground. This solar-powered LED strobe light is constructed of copper free cast aluminum with a baked powder epoxy finish.
Surface Mount Pendant Mount Stanchion Mount
Mounting
Round Pole Square Pole Surface
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. Solid state LED lighting is also safer for the environment as LEDs are 100% recyclable. And recycling simultaneously reduces operating costs by eliminating the need for the expensive special disposal services required with traditional gas burning and arc type lamps. Wiring/Power: This HAL-LED-SOL-80C-C1D2-20C is powered by four 12V AC 18aH sealed lead acid batteries that are recharged by the solar panel. These rechargeable batteries provide a continuous supply of steady, reliable power. The lead acid battery pack is contained within a stainless steel NEMA 4X Class I, Division 2 control box, not the light. This fixture ships with 80 feet of 10/2 SOOW cord that connects the explosion proof strobe light to the solar panel. Custom lengths are available upon request. Please contact us for special requirements. As with all solar powered equipment, charging time is affected by the amount of available ambient light. When ambient light levels drop below a certain level, such as on cloudy days, the unit will not recharge as quickly. The light runs for 12 hours when the battery is fully charged. Charging time for the sealed lead acid batteries is 5 hours when exposed to direct sunlight. Indirect sunlight will extend the charge time. Mounting: Mounting options include ceiling, wall and pendant for the lamp fixture and flat surface or round/square pole mounting such as on utility poles or structure supports for the solar panel. NOTE: Larson Electronics has further upgraded the options available with this light. We expect the light to be mounted separately from the panel. This incorporates a class rated panel, charge controller, and sealed battery solution. This allows the panel to be installed within C1D2 environments. This means the solar panel can be mounted in direct sunlight (not in the C1D1 hazardous area) while the light is mounted in a C1D1 hazardous area workspace. Standard installation for explosion proof lighting, including threaded rigid pipe to the LED light fixture and appropriate seal-offs, etc. are required. Larson Electronics offers a non class rated panel solution for customers who can mount the panel completely outside of the hazloc environment. No C1D1 rated solar panels exist, so the panel must be located outside the C1D1 environment in either panel solution offered. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste treatment plants, remote locations and more.
