Larson 150 Watts Portable Low Voltage Hazardous Location Lighting - Aluminum Pedestal Mount - Class 1 Div 2

Larson ElectronicsSKU: PL3-HAL-PM-1X150LED-LV-100
filler

Prix:
Prix réduit$5,820.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

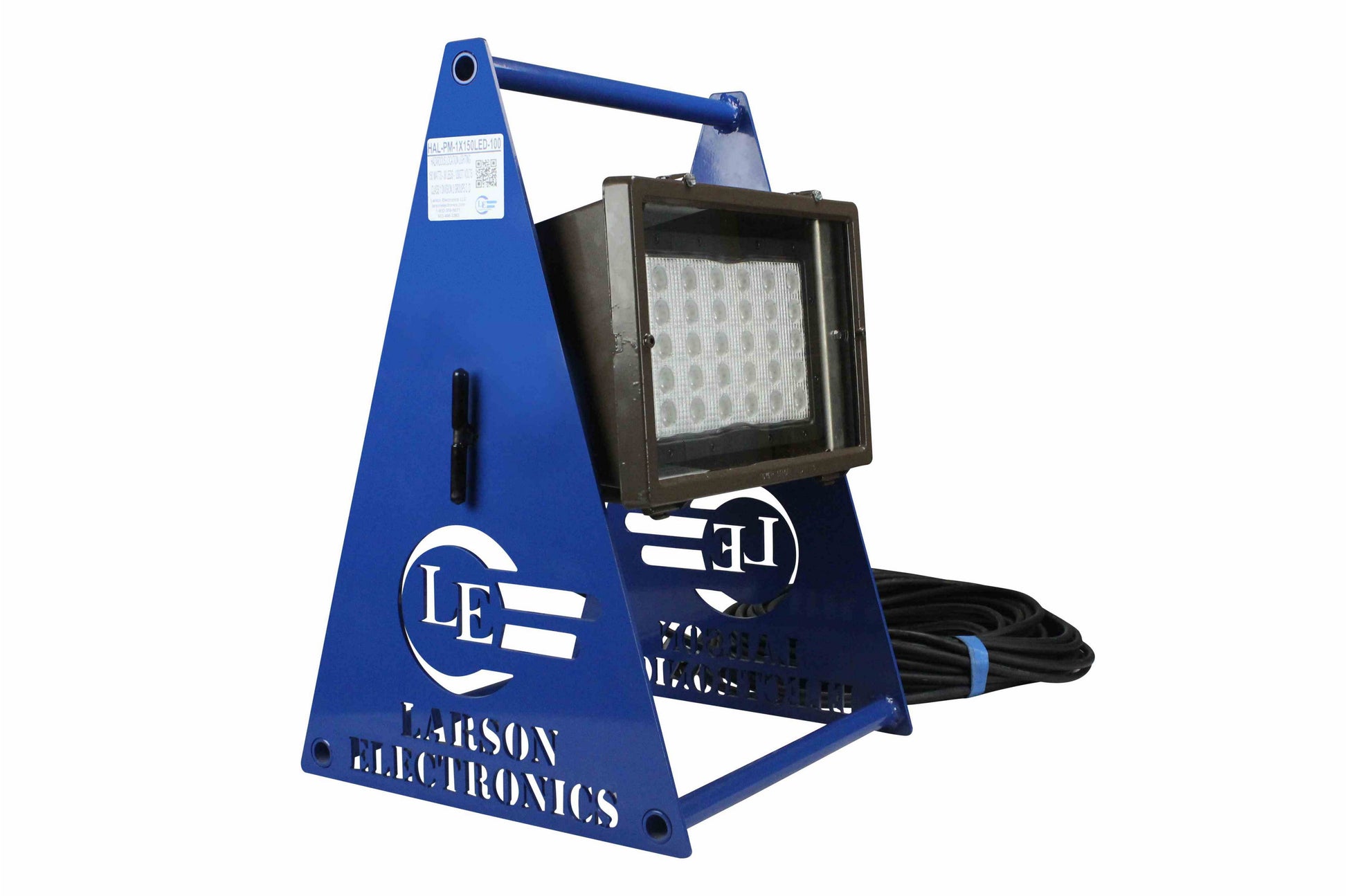

The high output HAL-PM-1X150LED-LV-100 LED hazardous area light from Larson Electronics produces 14,790 lumens of light and can illuminate an area 18,000 square feet in size. Weather proof and marine use suitable, this LED equipped hazardous area fixture is mounted within an aluminum frame that provides simple setup and easy carry transport. This LED light is ideal for hazardous locations where workers desire a light they can simply set down and plug in without any special mounting or placement needed.
The HAL-PM-1X150LED-LV-100 hazardous area light from Larson Electronics produces 14,790 lumens of high intensity light while drawing only 150 watts @12.5 amps from a 12 volt electrical system. Thirty CREE XLamp XPG five watt LEDs producing 493 lumens each are arranged in rows and paired with high purity optics to produce a 60 degree floodlight beam that is ideal for providing light over a large area, making these units ideal for use as portable workspace and area lights.
The lamp housing on this unit is weatherproof and constructed of die cast aluminum featuring a hinged, removable front-access door with two captive closure screws for easy servicing and heat/impact-resistant tempered flat door glass. The mounting frame is constructed of aluminum and designed to allow users to simply place the unit on any flat surface for stable deployment. This unit is lightweight and the aluminum frame allows operators to simply carry the unit from one location to another as needed. Included with this light is 100 feet of SOOW cord ending in a standard 1523 explosion proof plug for safe and secure connection.
This lamp is suitable for use in areas where flammable petrochemical vapors are present.
This light is highly durable, produces high light output in a wide flood pattern, and operates effectively at temperatures to -20 degrees F. This hazardous area light is U.L. rated Class 1 Division 2, Groups A, B, C, D and UL 1598 listed for Outdoor Salt Water Marine use. This unit operates with 120 VAC and all electronic components are protected within the weatherproof IP 65 rated housing.
These units can withstand temperatures of -40 degrees Celsius to 80 degrees Celsius, are IP65 rated waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from cast aluminum and the lenses are tempered glass. All hardware on this unit is corrosion resistant and the die-cast aluminum lamp housing exterior has an electro-coat dark bronze paint finish. The CREE XLamp XPG LEDs help these units achieve 15.6 Grms rated resistance to vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use. We recommend these LED lights for use in applications where a lot of dust, dirt, dampness and abusive working conditions are encountered.

Specifications
Lamp Type:
Lumens:
Total Watts: 150
Dimension: 28"-H, 16"-D 18"-W.
Voltage:  12V DC or 24V DC
Lighting Configuration: Flood Pattern
Mounting: Pedestal Stand
Weight: 34lbs
U.L. Listing: Wet Area / Marine Environment Approved
Total Coverage: 18,000 Sq. Feet
Wiring:  100 Feet SOOW Abrasive Oil Resistant Cord.
