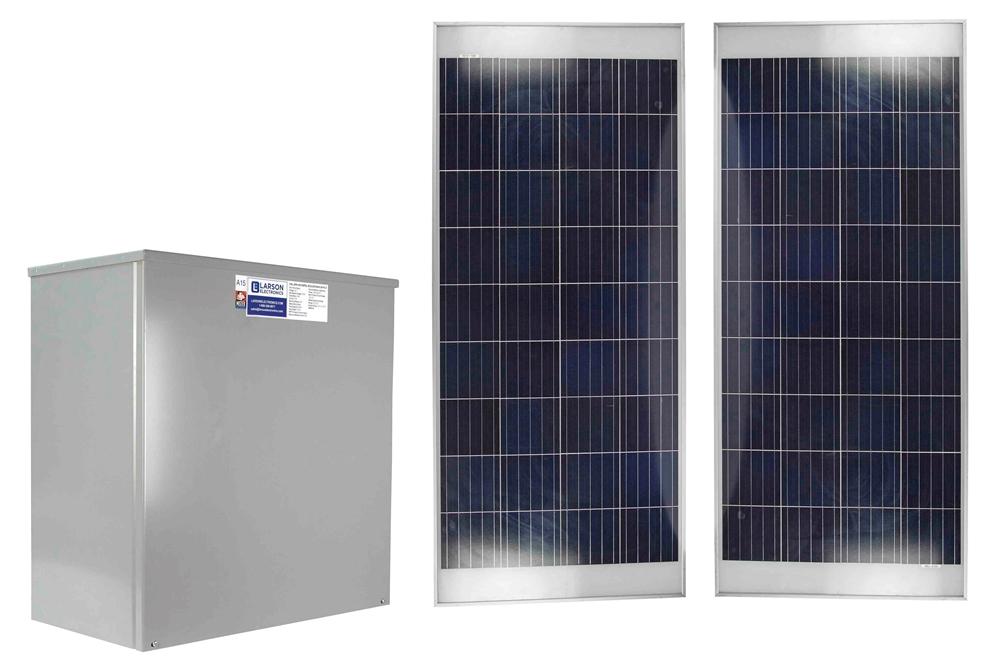

Hazardous Location Solar System - C1D2 - (2) 150W EXP Solar Panels (2) 100aH SLA Batteries - PLC
Hazardous Location Solar System - C1D2 - (2) 150W EXP Solar Panels (2) 100aH SLA Batteries - PLC
HAL-SPK-2X150PNL-SCS-2X100AH-24-PLC 150W Explosion Proof Solar Panel System | Ratings/Approvals |
Solar Panel Specs | Class I, Division 2 |
Solar Panel Qty: (2) | Low Voltage Protection |
Solar Cells: Crystalline 6" Silicon (156 x 156mm) | NEMA 3R |
Panel Dimensions: 59.4" x 26.5" x 2" | Included Program Logic Controller (PLC) |
Cells Orientation: 36 Cells | (2) 150W C1D2 Solar Panels |
Voltage: 12V(Nominal) | |
Maximum System Voltage: 1000V | |
Total Watts: 300W | |
Current: 8.3A | |
Module Efficiency: 14.6% | |
Tolerance: +10%/-5% | |
Limiting Reverse Current: 8.5A | |
Temperature Coefficient of Isc: 0.105%/°C | |
Temperature Coefficient of Voc: -0.360%/°C | |
Temperature Coefficient of Pmax: -0.45%/°C | |
Maximum Fuse Rating: 20A | |
Materials: Silver Anodized Aluminum (Frame), Polyester (Back), EVA (Encapsulant) | |
Cover: High Transmission 1/8" Glass | |
Hubs: (4) Terminal Screw Connection Blocks | |
Mounting: NA - Customer Provided | |
Color: White | |
 | |
Battery Bank Specs | |
Dimensions: 40.125"H x 25.25"W x 17.125"D | |
Battery Type: SLA | |
Total Capacity: 200aH | |
Total Usable: 100aH | |
Materials: Aluminum, Stainless Steel | |
Hub Qty: (6) | |
Hub Size: (6) 3/4" NPT | |
Hub Location: (6) 3/4" NPT @ Bottom of Enclosure | |
 | |
MPPT Charge Controller Specs | |
Voltage: 12V, 24V or 48V DC | |
Maximum Battery Current: 60A | |
Nominal Maximum Operating Power: 800W @ 12V, 1600W @ 24V, 3200W @ 48V | |
Peak Efficiency: 99% | |
Maximum PV Open Circuit Voltage: 150V DC | |
Battery Operating Voltage Range: 8-72V DC | |
Maximum Self-consumption: 2.7W | |
Transient Surge Protection: 4500W/Port | |
Charging Algorithm: 4-stage | |
Charging Stages: Bulk, Absorption, Float, Equalize | |
Ambient Operating Temp: –40°C to +45°C | |
Protection: Overload, Short Circuit, High Voltage, High Temperature, Lightning/Transient Surges, Reverse Current @ Night, Remote Battery Sensor (RTS) | |
Communication Ports: MeterBus, RS-232, EIA-485, Ethernet, EMC-1 |
The HAL-SPK-2X150PNL-SCS-2X100AH-24-PLC Hazardous Location Solar System from Larson Electronics is designed for sustainable energy applications in Class I, Division 2 hazardous locations. The 12V DC system features 300W solar panels, SLA batteries @ 200aH capacity, MPPT controller, programmable logic controller and low voltage protection device. A NEMA 3R heavy-duty enclosure protects the system`s components from outdoor elements. The HAL-SPK-2X150PNL-SCS-2X100AH-24-PLC is a powerful solar-powered system for Class I, Division 2 rated hazardous locations. This 12V system includes two 150-watt solar panels, two 100aH SLA batteries, programmable logic controller, low voltage protection device and a 60-amp MPPT charge controller. The solar panels require customer-provided mounting for secure installation at the site. Solar Panels: The two, 150-watt solar panels operate on 12V (nominal) with a module efficiency rate of 14.6 percent. At maximum power, the units offer 18.1V and a current of 8.3A. Featuring a Class C application class, the modules come with a 20A maximum fuse rating. The lightweight units weigh 26.5 lbs and measure 59.4" x 26.5" x 2". IEC and UL certified, the solar panels are designed to withstand rugged, outdoor environments. The frame is constructed of silver anodized aluminum, while the back cover is made out of white polyester for insulation. For extra protection, the front cover is constructed of high transmission glass (1/8" thick). The hazardous location solar panel comes with a sturdy J-type junction box with accessible terminals for connections to other components of the solar-powered system. A total of four terminal screw connection blocks is available, capable of accepting 8-14 AWG wires. Battery Bank/Charge Controller: This system is equipped with two, 100aH SLA batteries at 200aH capacity and 100aH usable. Inside the enclosure, operators are provided access to an MPPT charge controller. Capable of operating at 99% peak efficiency, this component features a maximum battery current of 60 amps. The 4-stage charge controller can handle bulk, absorption, float and equalize charging stages. Protective features include the following: Overload, Short Circuit, High Voltage, High Temperature, Lightning/Transient Surges, Reverse Current @ Night. The controller is supported by an included remote battery sensor. For connections to the controller, the following communication ports are available: MeterBus, RS-232, EIA-485, Ethernet, EMC-1. The batteries, MPPT charge controller and low voltage protection device are housed inside a Class I, Division 2 enclosure. The NEMA 3R enclosure is constructed of aluminum and stainless steel. A total of six, 3/4" NPT hubs can be found at the bottom of the unit during installation. Applications: Hazardous locations, chemical processing plants, refineries, oil and gas, solar-powered systems, remote locations, alternative energy, sustainable energy systems, solar lighting, portable power, battery-powered systems, rechargeable lighting and more.  |
