Hazardous Location UV Box - Kills 99% of Viruses - 120V - (15) UVC Fluorescent Lamps - Holds 24"L x 24"W x 16"H Packages - Type Z Purge System for C1D2 Use
Hazardous Location UV Box - Kills 99% of Viruses - 120V - (15) UVC Fluorescent Lamps - Holds 24"L x 24"W x 16"H Packages - Type Z Purge System for C1D2 Use
Prix habituel
$29,436.00 CAD
Prix habituel
Prix promotionnel
$29,436.00 CAD
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
| HAL-TBL-BX-AEP.Z-24.24.16-UVC-15X-R1-120V-EPP Hazardous Location UV Box | Ratings/Features |
| Lamp Technology: UV-C Fluorescent | Listed for Use in United States & Canada |
| Lamp Qty: (15) 24" UV Lamps | Class I, Division 2, Groups A, B, C, D |
| Maximum Package Dimensions: Holds Packages or Boxes up to 24"-L x 24"-W x 16"-H | Class I, Zone 2, Groups IIA, IIB and IIC |
| Weight: - | NRTL Listed to NFPA 496 |
| Voltage: 120 V, 60 Hz | NRTL Listed to UL 508A |
| Total Watts: 300W | NRTL Listed to CSA C22.2 No. 14 |
| Single-lamp Watts: 20W | Short-wave Germicidal Light |
| Total UV Output: 136.5W | Kills 99% of Viruses and Other Germs |
| Single-lamp UV Output: 9.1W | EPA Reg. No 98409-1 |
| Expected Lifespan: 8,000+ Hours | EPA Est. No. 98409-TX-1 |
| UV Wavelength: UV-C, 200nm - 280nm (253.7 nm) | |
| Lamp Type: T10 | |
| Lamp Base: G13 (2-pin) | |
| Replacement Lamp: FRL-24-1X-T8-20W-UV-C | |
| Beam Angle: 360º | |
| Light Configuration: Flood | |
| Surface Reflectance: 43% | |
| Timer: Included | |
| Indicator Lights: Green = Safe to Open, Amber = In Operation |  |
| Package Protection: Non-removable Wire Drop Basket - Holds Multiple Packages |  |
| Amps: - |  |
| Minimum Airflow Requirement: 80 PSI |  |
| Maximum Airflow Requirement: 120 PSI |  |
| Ambient Operating Temp Range: - | Special Orders - Requirements |
| Materials: - | |
| Lens Material: - | |
| Mounting: Stand Alone Device | |
| Wiring: 25' 16/3 SOOW Cord w/ Cord Cap | |
| Cord Cap: 5-15 Straight Blade or 5-20 Straight Blade | |
| ***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.*** |
function MM_openBrWindow(theURL,winName,features) { //v2.0
window.open(theURL,winName,features);
}
This unit is Made In USA - Manufactured in Texas

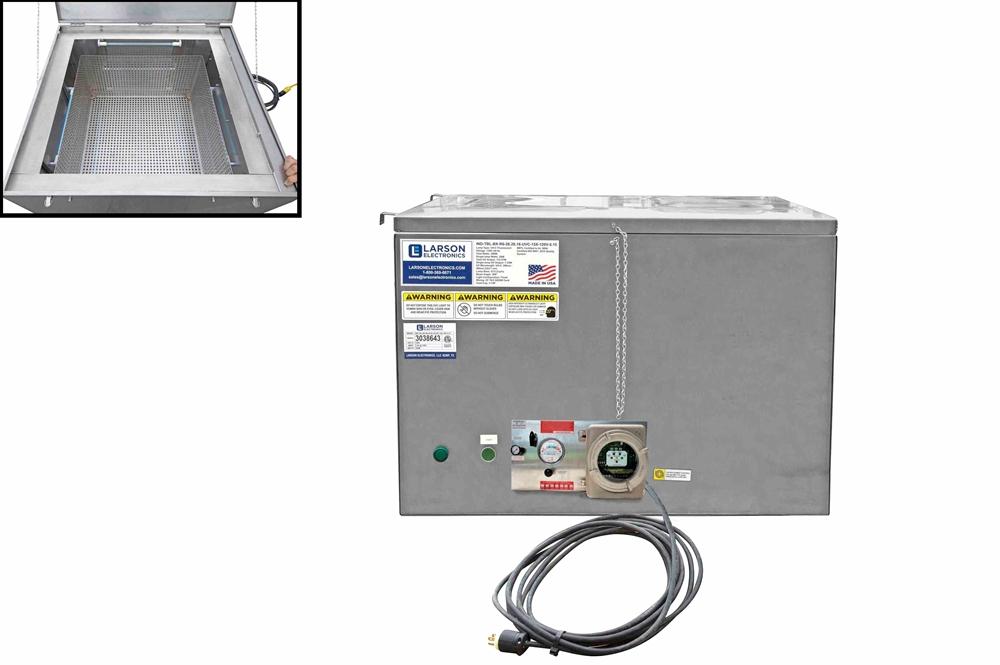

The HAL-TBL-BX-AEP.Z-24.24.16-UVC-15X-R1-120V-EPP Larson Electronics from is a Hazardous Location UV Oven that uses a Type Z continuous flow purge system and that is used for cleaning packages, including from Amazon, UPS, FedEx and DHL. This UV oven can disinfect 99% of viruses, bacteria, mold, and spores found on boxes, envelopes, and other types of packages. Order products online safely and quickly sanitize packages with this hazardous location UV box without waiting days or weeks for harmful microbes to die off. This UV oven can disinfect packages measuring up to 24"-L x 24"-W x 16"-H within minutes. With access to fifteen UV lamps, the unit offers UV-C output at a range of 200nm - 280nm (253.7nm). The UV oven has highly visible indicator lights for safe operation and comes with a timer. A non-removable wire drop basket inside the UV box protects items being sanitized from slipping and getting caught in the corners.
*Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores, and bacteria. *
The HAL-TBL-BX-AEP.Z-24.24.16-UVC-15X-R1-120V-EPP is a powerful sanitation solution for cleaning packages from DHL, FedEx, UPS, Amazon and more. This UV oven is safe to use in Class I Division 2 hazardous location. It is made to be used in hazardous locations by the utilization of a type Z continuous flow purge system. Equipped with fifteen UVC fluorescent lamps, this system offers 136.5 watts of UV output, within the 200nm - 280nm UV-C range (253.7 nm). The lights have an expected lifespan of 8,000+ hours and emit a flood beam pattern. A surface with 43% reflectance promotes UV light distribution and ensures maximum exposure. Inside the box, the UV system offers three 24" lamps on each side (left side, right side, front, and back) and three 24" lamps on the bottom of the unit for a total of 15 lamps. There are NO lamps found on the upwards opening top lid.
The inside of the UV oven is equipped with a non-removable wire drop basket that can hold packages measuring up to 24"-L x 24"-W x 16"-H. The wire basket protects packages, boxes or envelopes, preventing the items from slipping outside of the basket and getting stuck in the corners of the box. This device turns off automatically when the lid is open. Indicator lights include: green (safe to open) and amber (in operation). With a recommended 25-minute exposure time at full capacity, multiple devices can be purchased to clean several packages at the same time. Operators may access a timer in the box to ensure the recommended duration of exposure (1-30 mins) is met every session. The UV light can disinfect over 99% of bacteria, viruses, mold, and spores.
Voltage: The HAL-TBL-BX-AEP.Z-24.24.16-UVC-15X-R1-120V-EPP operates on 120 V AC, 60 Hz.
Purge and Pressurization System: The HAL-TBL-BX-AEP.Z-24.24.16-UVC-15X-R1-120V-EPP uses a Type Z continuous flow purge and pressurization system that makes it safe to use within Class I Division 2 hazardous locations. In a purge and pressurization system, any hazardous gas is purged from the enclosure through a series of complete air exchanges. The enclosure is then pressurized to prevent the entry of any hazardous gas or dust from entering the enclosure. In a continuous flow purge system, like the one used in this UV oven, a constant flow of air following the purge is used to maintain internal pressure.
The HAL-TBL-BX-AEP.Z-24.24.16-UVC-15X-R1-120V-EPP features a Type Z continuous flow purge system. A Type Z system requires a minimum of 25 Pa for internal pressure. The other main feature of a Type Z system is that power to the unit is automatically disconnected if a drop in pressure below the minimum occurs or any other loss of pressure occurs. This means that it then must go through the purge and pressurization process successfully again before operation can resume within the hazardous area.
Operation: The HAL-TBL-BX-AEP.Z-24.24.16-UVC-15X-R1-120V-EPP is equipped with a C1D1 rated push button for power and a C1D1 rated power indicator light on the outside of the unit. A timer is installed on the inside of the enclosure. The timer keeps the UV lamps running for the recommended amount of time to disinfect the package.
To use the UV oven, the operator places the package in the wire basket on the inside of the oven, closes the gasketed lid, secures the stainless steel draw latches, and pushes the power button. The unit then purges the enclosure and pressurizes it. Once pressurization is complete, power is provided to the timer. The UV lamps then power up and stay on throughout disinfection. This entire process must be repeated every time the lid is opened or pressure is otherwise lost.
|
|||||||||
