Class 1 Division 2 Fluorescent Light for Corrosion Resistant Requirements (Saltwater) - Two 36W T8 L

LARSON ELECTRONICSSKU: PL3-HALP-48-2L-INTL-36WT8
filler

Prix:
Prix réduit$972.00

Description

Specifications / Additional Information
HALP-48-2L-INTL-36WT8 - Hazardous Area Fluorescent Light Ratings/Approvals
Lamp Type: 4` Fluorescent Class I Division 2, Groups A, B, C, D
Surface Dimensions: 49.975"-L x 7.975"-W x 5.1"-H Class II, Division 2, Groups F, G
Pendant Dimensions: 49.731"-L x 7.205"-W x 5.425"-H UL 844
Weight: 8 Lbs UL 1598A Marine Type (Salt water)
Voltage: Universal 120-277V AC 50/60Hz California Title 24 Compliant
Total Watts: 64W Listed for Canada
Total Lumens: 5900 T4 Temperature Rating
Lamp Life (Hours): 24,000 Non-Corrosive Construction
Efficiency (Lumens per Watt): 92 Meets US Coast Guard specifications
Color Temp: 4100K
Beam Angle: 160° Horizontal, 116.5° Vertical
Mounting: Flange Type Surface Bracket or Pendant Hub
Wiring Hub: 3/4" NPT
Materials: Polyester/Fiberglass Housing, Acrylic Lens
Wiring Hub:1/2" or 3/4" NPT Toll Free: 1-800-369-6671
Ambient Temp Range: -20°C to +70°C Intl: 1-214-616-6180
Minimum Operating Temp: -30 C Fax: 1-903-498-3364
Maximum Case Temp: 90 C
*Wattage totals are lamps only and may vary with different lamps.
' Product Overview '

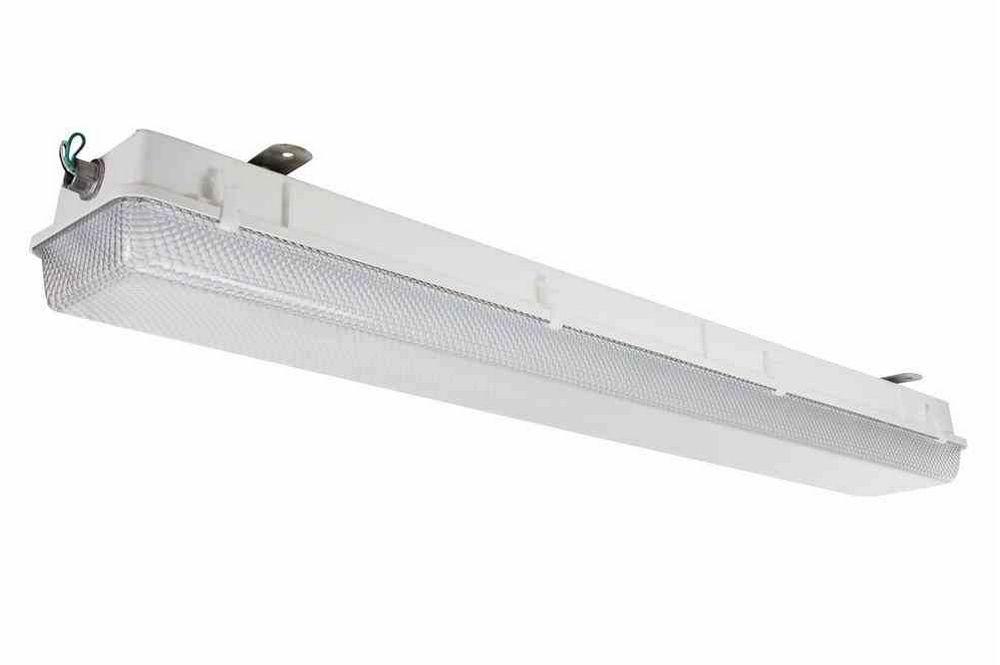

Made in the USA The Larson Electronics HALP-48-2L-INTL-36WT8 Hazardous Area Fluorescent Light Fixture is U.S./Canada UL Listed Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments. The HALP-48-2L-INTL-36WT8 hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser.Eight corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. Optional stainless steel latches available upon request. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-48-2L-INTL-36WT8 also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.
Click Photo to Enlarge
NOTE ON LAMPS: This fixture comes equipped with two 36 watt T8 fluorescent lamps. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. The HALP-48-2L-INTL-36WT8 has an electronic universal voltage ballast and operates on a range of voltages from 120V to 277V AC 50/60Hz including: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ.
Surface Mount (Standard)
Flanged Surface Mount Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 38.25” on center apart along the top of this hazardous location light. The mounting holes are 3.9” and 7.2” on center across the top of the light.
Pendant Mount (Optional)
Suspension/Pendant Mounting: Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture is equipped with either two 1/2" or 3/4” NPT hubs, one on each end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to one of the NPT hubs and tied in to the fixture’s lead wires, completing the electrical connection. The remaining pendant hub provides support for the opposite end of the fixture. Suggested Applications: The HALP-48-2L-INTL-36WT8 is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
