HID Work Light - Trailer Hitch Bracket Mount - 2 X 70 Watt HID Flood Light -3 to 8 feet - 12,600 Lum
HID Work Light - Trailer Hitch Bracket Mount - 2 X 70 Watt HID Flood Light -3 to 8 feet - 12,600 Lum
| HIDTH-66X2-70W HID Light Tower | HIDTH-66X2-70W Features |
| Lamp Type:2X HID Work Lights | IP67 Rated Weatherproof & Waterproof |
| Dimensions: Telescoping- 3` to 8.5` | Adjustable Telescoping Light Pole Extends 3` to 8.5` |
| Total Watts: 140 | Multiple Power Connector Options |
| Lumens: 12,600 | Low Amp Draw |
| Voltage: Multi-Voltage- 12 or 24 | Long 3.500 Hour HID Life |
| Amps: 8.4 on 12 VDC - 4.2 on 24VDC | CE Certified |
| Mounting: Trailer Hitch Mounted Telescoping Light Tower | EN55015 EMI |
| Lighting Configuration:: Spot or Flood | EN61547 EMS |
| HIDLight Color: 6500K | EN62471 Photobiological Safety |
| HID Life Expectancy: 3,500 Hours | |
| Wiring: Y-Connector- 8 Cord Options | |
| HID Housing Colors: Black or White | |
|  | Toll Free: 1-800-369-6671 |
|  | Fax: 1-903-498-3364 |
|  |

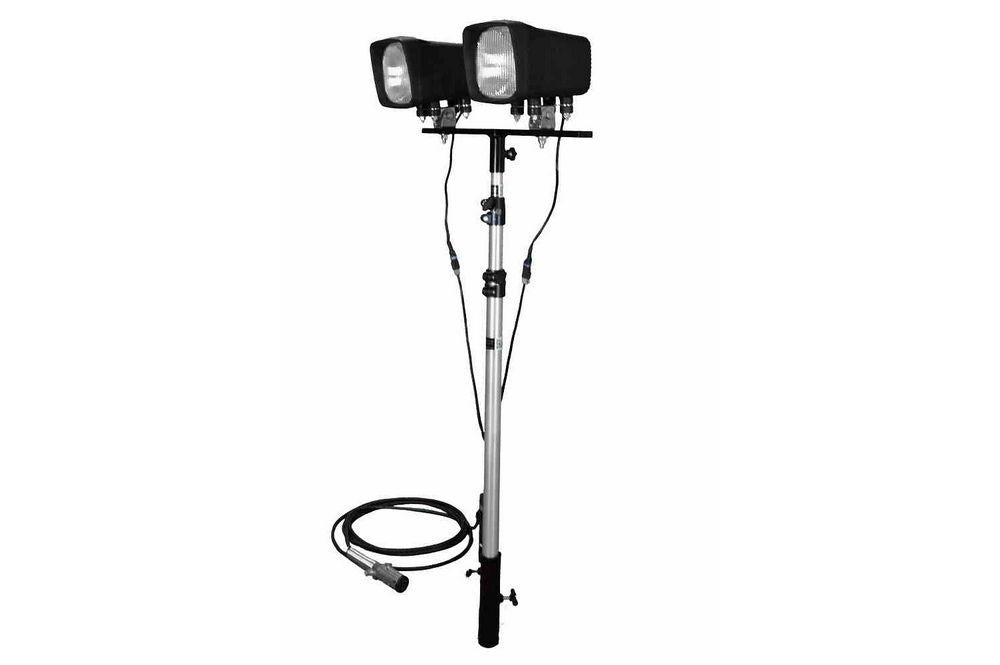

| Made in the USA The Larson Electronics HIDTH-66X2-70W Trailer Hitch Mounted Light Tower is a telescoping pole that allows operators to elevate lights, speakers and other electrical devices and adjust their height from 3 feet to 8.5 feet. The HIDTH-66X2-70W comes complete with two IP67 rated 70 watt HID light heads and produces a 12,600 lumen flood of light capable of illuminating an area 500’ in length by 500’ feet in width. This trailer hitch mounted unit is multi-voltage capable and can be used with either 12 or 24VDC and is ideal for use as work area illumination, event lighting, emergency operations lighting, first responder applications, equipment lighting and is suitable for use on any vehicle that will accept a hitch mount.  The HIDTH-66X2-70W work area light tower provides operators with a very versatile lighting solution for operations where easily managed illumination of large sized areas is required. Two IP67 rated 70 watt HID floodlights create a total of 12,600 lumens of bright white light and provide light coverage for an area 500’ long by 500’ wide. This unit can also be ordered in spotlight configuration to produce a beam 4200’ long by 180’ in width. This light tower is extendible from 3’ to 8.5’ and incorporates a trailer hitch mounting system that allows operators to easily secure the fixture to vehicles at any location. This mounting system provides extremely secure placement of the tower in areas where high winds are commonly encountered as the weight of the vehicle removes the possibility of the unit swaying excessively or tipping over. | ||||||||||||
|
||||||||||||
Durability: The HIDTH-66X2-70W trailer hitch mounted light tower incorporates two of our IP67 rated, 70 Watt HID work lights on a collapsible aluminum tripod. These HID lights each have a 70 watt HID bulb producing 6,300 lumen each, which each paired with high purity 35 degree optics to produce a wide area flood beam with exceptional spread. Optional spotlight versions have 10 degree optics and produce a much longer and tighter spotlight beam. These weatherproof HID lights are IP67 rated and sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The HIDs have a 12G RMS vibration proof rating which is achieved by a combination of the various rubber bushings on the mounts of the HID units and the inherent durability of the HID lamps. Since HID lamps have no fragile filaments that can break or burn out they are much more resistant to damage from vibrations and impacts than normal incandescent lamps.
This HID unit is a IP67 rated fixture. This means that it is completely water and dust proof so it can be used in environments that meet lower than average expectations. Rain, sleet, or slow, these HID work lights are an exceptionally bright and efficient way to illuminate any area while utilizing the low voltage electrical systems of a vehicle.
Mounting: The trailer hitch mounting system on this unit consists of a trailer hitch bracket which in turn holds the extendible aluminum light tower. The light tower is extendible from 3’ to 8.5’ and the entire system mounts to standard hitch receivers via the standard push bolt and locking pin used on most commonly used trailer hitch receiver mounts. This unit also includes several wiring options to further increase versatility and ease of use. The HID lights used with this light tower automatically sense incoming voltage levels and adjust input current accordingly, allowing either 12 or 24 volt DC current to be used without any need for modifications or additional hardware.
Angle Adjustment: This unit allows operators to adjust the angle of the entire unit by positioning the trailer hitch at different angles as seen in the pictures above. Adjusting the angle of the tower is accomplished by loosening a thumb bolt at the base of the hitch, which enables the mount to swivel 180 degrees (given enough ground clearance, a greater swivel angle can be achieved.) Once the desired angle is found, simply retighten the thumb bolt to lock the hitch into place. Alternatively, the light heads can also be adjusted while the hitch is at a lock-in position.
Connectors: These units connect both HID light heads together using a Y-connector which then connects to the power source cord. There are several connecting cords to choose from with this unit which add to this unit’s portability and convenience. We also now offer the trailer pin plugs in round or flat base.  Trailer plugs also comes in either the 4, 5 or 7 prongs in the round connector setup. When choosing the flat connector setup, we offer the 4 or 5 prong setup. Please choose your option below.
|
