Flameproof Receptacle - 380V -32 Amps - 3-pole, 4-wire - IECEX/ATEX Rated

LARSON ELECTRONICSSKU: PL3-HLO-AE.EX-32A-3P4W-380V
filler

Prix:
Prix réduit$2,954.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
HLO-AE.EX-32A-3P4W-380V IECEx/ATEX Rated Receptacle Ratings/Approvals
Listing: NRTL Listed for European, International Locations ATEX/IECEx Rated
Unit Type: Flameproof Receptacle Approved for Zone 1 and 2
Dimensions: - Approved for Zone 21 and 22
Weight: - Ex II 2 GD Ex db eb IIC T6
Max Voltage Rating: 380V AC, 3PH Ex II 2 Gb Ex tb IIIC T80℃ Db(Ta≤ +45℃)
Amps: 32A Ex II 2 GD EX db eb IIC T5
Poles: 3-pole Ex II 2 Gb EX tb IIIC T95C Db(Ta≤ +55℃)
Wires: 4-wire NRTL Certified to IEC 60079
Configuration: 3P4W (3P+E) NRTL Certified to EN 60079
Clock Hour: 6H CE Certified
Ambient Operating Temp Rating: -40℃≤ Ta≤ +55℃ IP66 Weatherproof
Materials: Polyamide
Terminal Capacity: -
Hubs: -




' Product Overview '

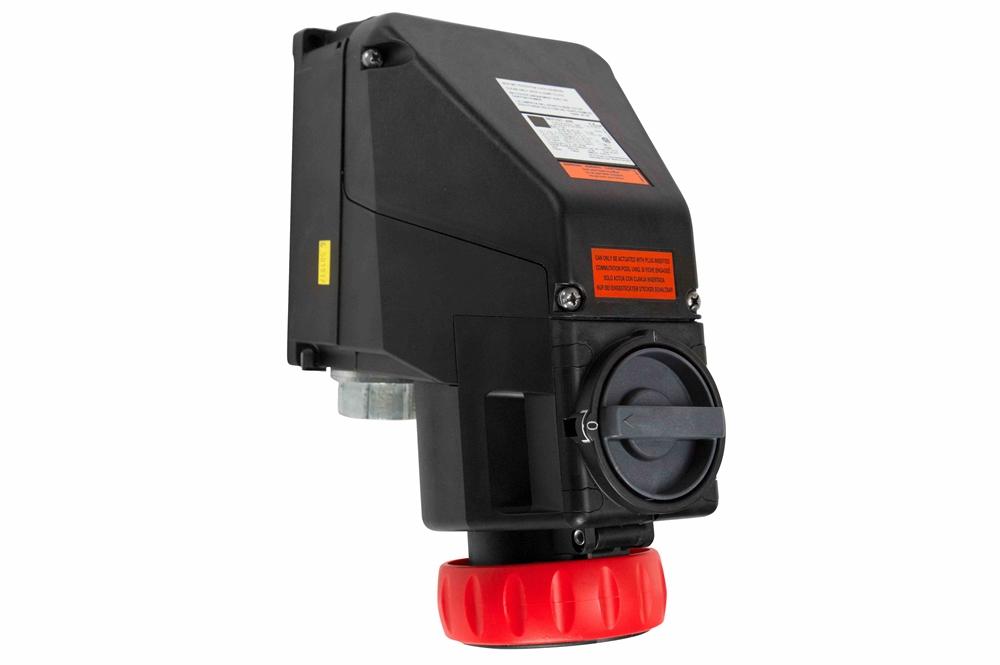

The Larson Electronics HLO-AE.EX-32A-3P4W-380V Flameproof Receptacle is recommended for use in IECEx/ATEX rated work sites. This 32-amp rated outlet comes in a 3-pole, 4-wire configuration with 380V AC compatibility. Constructed of polyamide, the unit features IP66 protection. The HLO-AE.EX-32A-3P4W-380V is designed for secure electrical connections in hazardous locations. This 3-pole, 4-wire receptacle is rated at 32 amps and is compatible with three-phase 380V AC. The IECEx/ATEX rated unit features non-metallic, polyamide construction and IP66-rated protection. Specially designed color coding and pin reduces the possibility of making incorrect power connections. The flameproof receptacle contains a clock hour 6 configuration. Applications: Manufacturing, industrial, warehouse, lighting, motor-generator sets, compressors, wet areas or locations where combustible dusts, fibers or flying are present or where explosive gases or vapors may be present.
