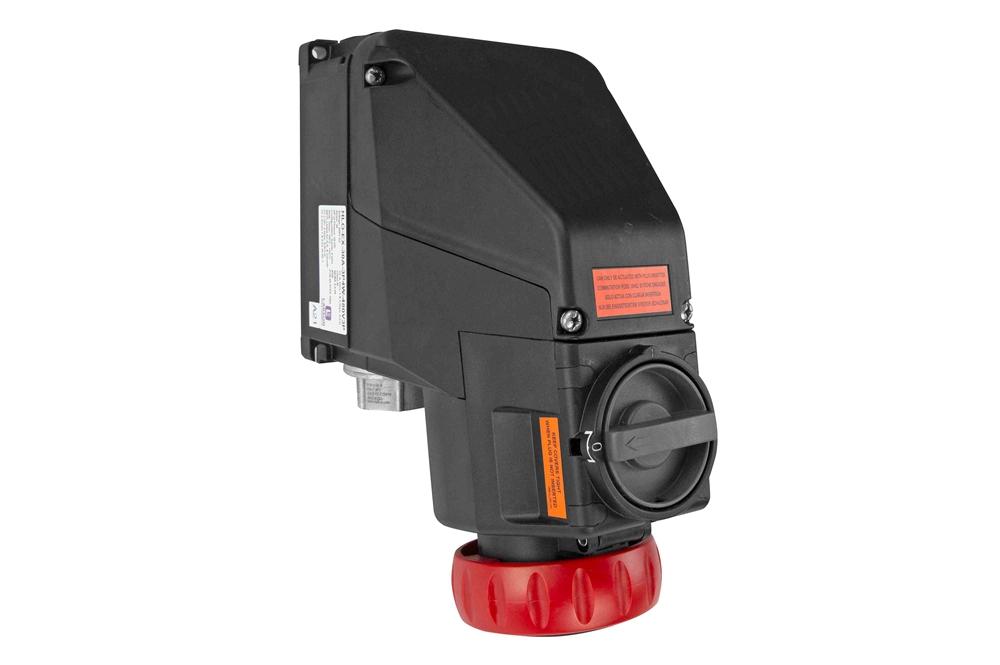

Hazardous Location Receptacle, 3-Pole 4-Wire, 30 Amp, 480V AC 3PH, C1D2 ATEX IEC-Ex Rated

LARSON ELECTRONICSSKU: PL3-HLO-EX-30A-3P4W-480V.3P
filler

Prix:
Prix réduit$5,936.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
HLP-EX-30A-3P4W-480V.3P Hazardous Location Rated Plug Ratings/Approvals
Listing: NRTL Listed for North America, Europe, Brazil, Korea & International Locations NEC, CEC, ATEX, IEC Ex Rated
Device Series: IEC 60309 (International Standard) Class I, Division 2, Groups A, B, C, D
Device Type: Hazardous Location Plug Class I, Zone 1 & 2, Groups IIC, IIB, IIA
Dimensions: 11.1"-L x 8.15"-W x 5.3"-D Class II, Divisions 1 & 2, Groups E, F, G
Weight: -.5 lbs Class III, Disions 1 & 2
Amperage Rating: 30A Approved for Zone 1 and 2
Voltage: 480V AC Approved for Zone 21 and 22
Frequency: 50/60 Hz Ex db eb IIC T6 Gb
Phase: Three Phase Ex tb IIIC T80 °C Db
Configuration: 3P4W Ex II 2 G Ex db eb IIC T6 Gb
# of Poles: 3-Pole Ex II 2 D Ex tb IIIC T80 °C Db
# of Wires: 4-Wire NRTL Certified to IEC 60079
Max Voltage Rating: 500V AC NRTL Certified to EN 60079
Clock Hour: 7H CE Certified
Color Code: Red RoHS Certified
Cord Range:  - NEMA 3, 4, 4X
# of Operations: > 5000 connects/disconnects under load, at full rated current and voltage IP66 Weatherproof
Minimum Withdrawal Force: 5lbs Compatible with IEC 60309 Compliant Products
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current Certified for Full Load Interrupting
Operating Temperature Range: -55°C to +65°C
Waterproof Rating: IP65, NEMA 4X
Shock Resistance: IK09
Flammability: V-2 Rated
Cable Secureness: "Force: 30lb; Torque: 0.4 ft-lb; Max Disp: <= 3/32"
Seals: Neoprene
Material, Housing Body: Polyamide
Material, Housing Cover: Polyamide
Material, Contacts: Brass
Material, Contact Carrier: Nylon
Material, External Screws: Acid-Proof Stainless Steel
Material, Internal Screws: Stainless Steel
Material, Phase/Ground Sleeves: Brass
Material, Sleeve Spring: Stainless Steel
Material, Terminal Screws: Stainless Steel
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '
The Larson Electronics HLO-EX-30A-3P4W-480V.3P Three Phase Hazardous Location Receptacle is a Class 1, Division 2 and Class 2, Divisions 1 & 2 rated receptacle approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 3-pole, 4-wire outlet is designed to provide a secure connection for electrical equipment within the hazardous location. This receptacle is certified for NEC, CEC, ATEX, and IEC Ex rated hazardous locations. This hazardous location 3-pole 4-wire receptacle is compatible with our HLP-EX-30A-3P4W-480V.3P hazardous location power plugs. This outlet is rated for 30 amps and is suitable for Class I, Division 2, Class II, Divisions 1 & 2, Zones 1 & 2, and Zones 21 & 22 locations. With NEMA Type 3, 4, 4x and IP66 ratings, this plug is suitable for outdoor, marine and wet location. This hazardous location plug features polyamide construction, a 30 amp current rating, and is operates on 480V AC 3P. This receptacle is coded red to indicate its voltage rating and ground pin position of 7. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. This single phase receptacle contains a 20 horsepower disconnect switch. The circuit cannot be energized until the plug is inserted and the switch is turned to the on position, and an interlocking switch mechanism feature prevents accidental removal of the plug from the receptacle during operation. The switch can be padlocked in the on or off position. This hazardous location outlet features polyamide construction and a maximum voltage rating of 250V AC @ 50/60 Hz. With NEMA Type 3, 4, 4x and IP66 ratings, this receptacle is suitable for outdoor, marine and wet location. This hazardous location single phase receptacle has a 2 wire 14-8 AWG terminal capacity and a 1” NPT bottom entry. This unit has a short circuit current rating of 10kA sym RMS and operates with a T6 ambient temperature rating of -50ºC to +55ºC. Suggested Applications: Chemical and pharmaceutical manufacturing, petrochemical operations, offshore applications, coal mining and other refinery or industrial operations.
