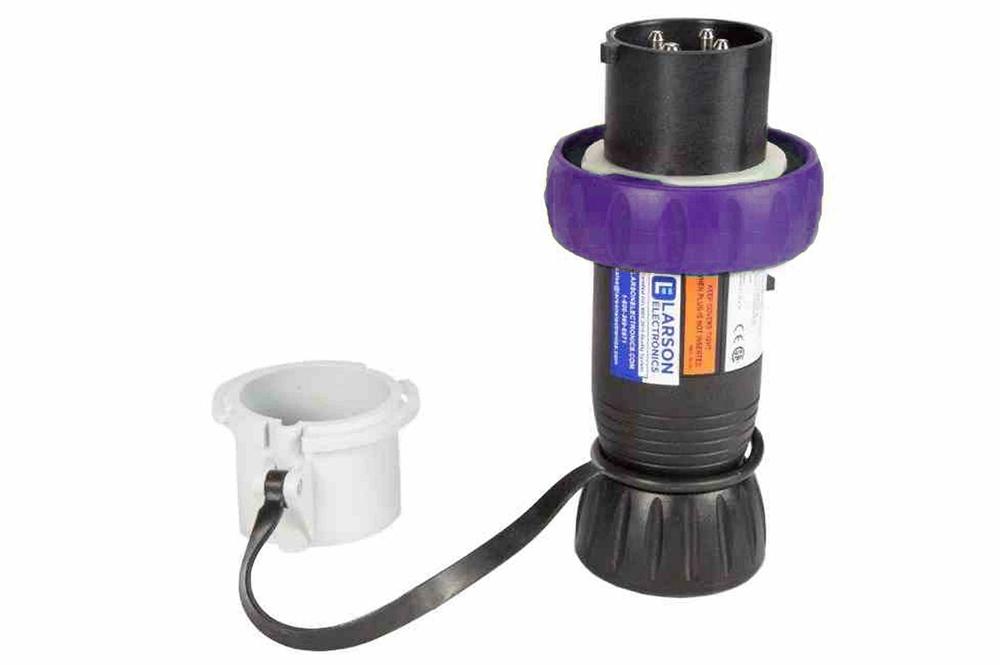

Flameproof Plug, 2-Pole 2-Wire, 16 Amp, 24V DC, ATEX IEC-Ex Rated
Flameproof Plug, 2-Pole 2-Wire, 16 Amp, 24V DC, ATEX IEC-Ex Rated
HLP-AE.EX-16A-2P2W-24VDC IECEx/ATEX Rated Plug | Ratings/Approvals |
Listing: NRTL Listed for European, International Locations | ATEX/IECEx Rated |
Device Series: IEC 60309 (International Standard) | Approved for Zone 1 and 2 |
Device Type: Flameproof Plug | Approved for Zone 21 and 22 |
Dimensions: 6.93"-L x 2.99"-W x 2.99"-D | Ex II 2 GD Ex db eb IIC T6 |
Weight: - | Ex II 2 Gb Ex tb IIIC T80℃ Db(Ta≤ +45℃) |
Amperage Rating: 16A | Ex II 2 GD EX db eb IIC T5 |
Voltage: 24V DC | Ex II 2 Gb EX tb IIIC T95C Db(Ta≤ +55℃) |
Frequency: Direct Current | NRTL Certified to IEC 60079 |
Phase: N/A | NRTL Certified to EN 60079 |
Configuration: 2P2W | CE Certified |
# of Poles: 2-Pole | RoHS Certified |
# of Wires: 2-Wire | IP66 Weatherproof |
Max Voltage Rating: 50V DC | Compatible with IEC 60309 Compliant Products |
Clock Hour: 10H | Certified for Full Load Interrupting |
Color Code:Â Violet | Â |
Cord Range: .350 - .860 | Mating Plug: HLP-AE.EX-16A-2P2W-24VDC |
# of Operations: > 5000 connects/disconnects under load, at full rated current and voltage | Mating Receptacle: HLO-AE.EX-16A-2P2W-24VDC |
Minimum Withdrawal Force: 5lbs | Mating Connector: HLC-AE.EX-16A-2P2W-24VDC |
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current |  |
Operating Temperature Range: -55°C to +65°C | IEC 60309 Configuration: 220P10W-HL |
Waterproof Rating: IP65, NEMA 4X | Â |
Shock Resistance: IK09 | Â |
Flammability: V-2 Rated | Â |
Cable Secureness: "Force: 30lb; Torque: 0.4 ft-lb; Max Disp: <= 3/32" | Â |
Seals: Neoprene | Â |
Material, Housing Body: Polyamide | Â |
Material, Housing Cover: Polyamide | Â |
Material, Contacts: Brass | Â |
Material, Contact Carrier: Nylon | Â |
Material, External Screws: Acid-Proof Stainless Steel | Â |
Material, Internal Screws:Â Stainless Steel | |
Material, Phase/Ground Sleeves: Brass | |
Material, Sleeve Spring: Stainless Steel | |
Material, Terminal Screws: Stainless Steel | |
Shipping Dimensions: - | |
Shipping Weight: - |
The Larson Electronics HLP-AE.EX-16A-2P2W-24VDC Hazardous Location Plug is an ATEX and IEC Ex rated receptacle approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 2-pole, 2-wire hazardous location plug is rated for 16-amps at 24V DC and designed to provide a secure connection for electrical equipment within the hazardous location. This hazardous location 2-pole 2-wire plug is compatible with our HLP-AE.EX-16A-2P2W-24VDC hazardous location power plugs. This outlet is rated for 16 amps at 24V DC and is certified to ATEX and IEC Ex standards for hazardous locations. This receptacle is coded violet to indicate its voltage rating and ground pin position of 10. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. This hazardous location plug is compatible with non-hazardous location receptacles of the same IEC 60309 configuration, allowing hazardous location equipment wired with this plug to be powered in both hazardous and non-hazardous locations. This hazardous location plug features polyamide construction and a voltage rating of 130V AC. With NEMA Type 3, 4, 4X and IP66 ratings, this plug is suitable for outdoor, marine and wet location. This hazardous location single phase plug has a 2 wire 16-10 AWG terminal capacity. This unit has a short circuit current rating of 10kA sym RMS and operates with a T6 ambient temperature rating of -50ºC to +65ºC. Suggested Applications: Chemical and pharmaceutical manufacturing, petrochemical operations, offshore applications, coal mining and other refinery or industrial operations. |
 |
