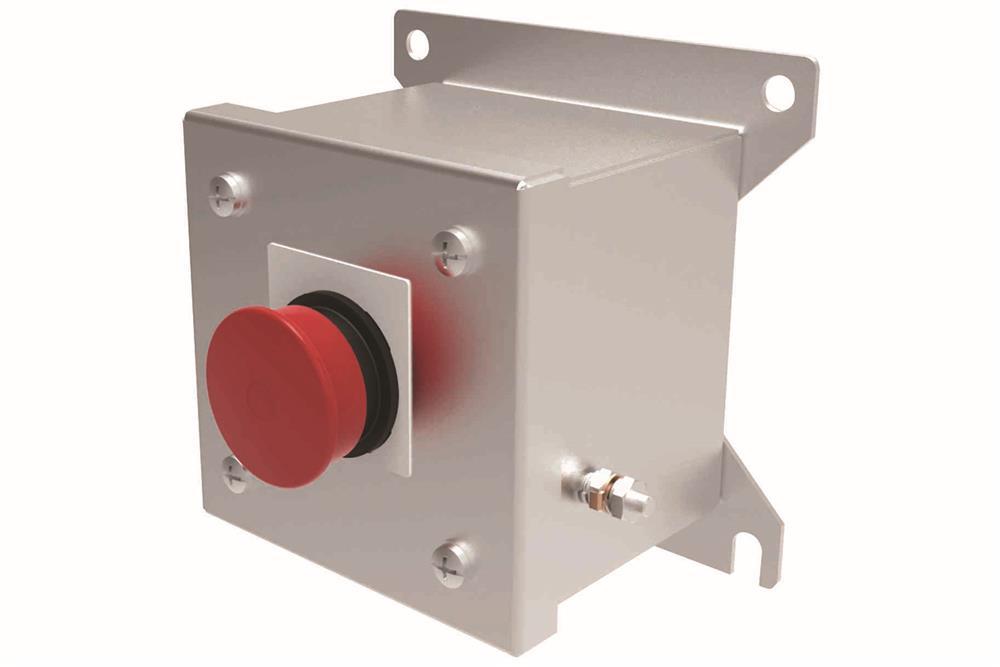

20A Hazardous Location Mushroom Pushbutton - C1D2 - Maintained, Stainless Steel - Red - 3/4" NPT Hub

LARSON ELECTRONICSSKU: PL3-HLSW-SS-PB20-ESTP
filler

Prix:
Prix réduit$1,680.00

Description

Specifications / Additional Information
HLSW-SS-PB20-ESTP Stainless Steel Maintained Mushroom Pushbutton Ratings/Approvals
Unit Type: Hazardous Location Maintained Switch Class I, Division 2 Groups A,B,C,D
Dimensions: 5.38" x 5.50" x 4.16" Class I, Zone 1, Zone 21
Weight: 1.22 lbs Class II, Division 1 Groups E,F,G (Canada)
Voltage Rating: 690V AC Class II, Division 2 Groups E,F,G
Frequency Rating: 50/60 Hz Class III
Amp Rating: 20A Ex II 2 G Ex de IIC T6 T4 Gb
Horsepower Rating: 1 HP Ex II 2 D Ex tb IIIC T6 T4 Db IP66
Action:  Maintained NEMA 3, 4, 4X, 12, 13
Contact Blocks: (1) Normally Open, (1) Normally Closed
Ambient Operating Temp Range: -50°C to +60°C
Housing Materials: 316 Stainless Steel
Gasket Material: Silicone
Mounting: Panel or Wall Mount via (4) Mounting Slots
Wiring Hub: (1) 3/4" NPT SS Hub
Color: Red (Switch), Metallic (Housing)
' Product Overview '
The HLSW-SS-PB20-ESTP from Larson Electronics is a Hazardous Location Mushroom Pushbutton for combustible locations. This 20-amp maintained-action switch features a voltage rating of 690V AC. Constructed of 316 stainless steel, the single mushroom head switch contains one 3/4" NPT hub and is suitable for panel or wall mounting applications. The HLSW-SS-PB20-ESTP is a hazardous location switch designed for Class I, Division 2; Class I, Zone 1/Zone 21; Class II, Divisions 1&2 and Class III rated sites. This 1-HP rated, maintained-action unit is rated for voltages up to 690V AC and is capable of handling 20 amps for switching duty. Equipped with a red mushroom head switch, the industrial accessory has one normally open contact block and one normally closed contact block. Normally closed is a contact that flows current in its normal state and normally open is a contact that does not flow current in its normal state. Constructed of 316 stainless steel, the hazardous location pushbutton features silicone gasketing throughout. This maintained contact switch has an ambient operating temperature of -50°C to +60°C and takes on NEMA-rated protection for use in rugged facilities. One 3/4" NPT stainless steel hub is available for completing electrical connections. Mounting: The HLSW-SS-PB20-ESTP is compatible with panel or wall mounting requirements. Operators can use four mounting slots on the back of the unit for mounting during installation.
