97.5W Industrial UVC Fluorescent Fixture - (3) 4' UV Lamps - Zinc Coated Hubs/Surface Mount

LARSON ELECTRONICSSKU: PL3-IND-LP-SS-48-3L-UVC
filler

Prix:
Prix réduit$3,076.00

Description

Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
IND-LP-SS-48-3L-UVC Industrial UVC Fixture Ratings/Approvals
Listing: - (3) 4' UV Fluorescent Lamps
Lamp Technology: UV Fluorescent Germicide Applications
Dimensions: 48.75" x 17.75" EPA Reg. No 98409-1
Space Between Lamps: - EPA Est. No. 98409-TX-1
Weight: -
Lamp Quantity: 3
Voltage: 120-277 V AC
Frequency: 50/60 Hz
Total Watts: 97.5W
Single-lamp Watts: 32.5W
Total UV Output (Watts): 59.4W
Single-lamp UV Output (Watts): 19.8W
Total Radiant Intensity: -
Effective Radiant Intensity: -
Lamp Life: 8,000 Hours
UV Band: UVC 254nm (200nm - 280nm)
Lamp Type: UV T10 Fluorescent
Lamp Base: G13 (Medium Bi-Pin Fluorescent)
Replacement Lamp: FRL-48-1X-T8-32.5W-UV-C
Beam Angle: -
Lighting Configuration: Flood Pattern
Ballast Quantity: 1
Ballast Voltage: 120-277V AC, 50/60 Hz
Ballast Position: Back of Fixture (Gasketed Ballast Enclosure)
Mercury Content: -
Amps: 0.85 A @ 120 V, 0.42 A @ 240 V, 0.37 A @ 277 V
Operating Temp Range: -30°C to 85°C Special Orders - Requirements
Housing Material: 304 Stainless Steel
Hardware/Hub Material: Zinc Coated Hub
Mounting: Flange Mount
Hub Quantity: 2
Wiring Hub Size: 1/2" or 3/4" Threaded
***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.***
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

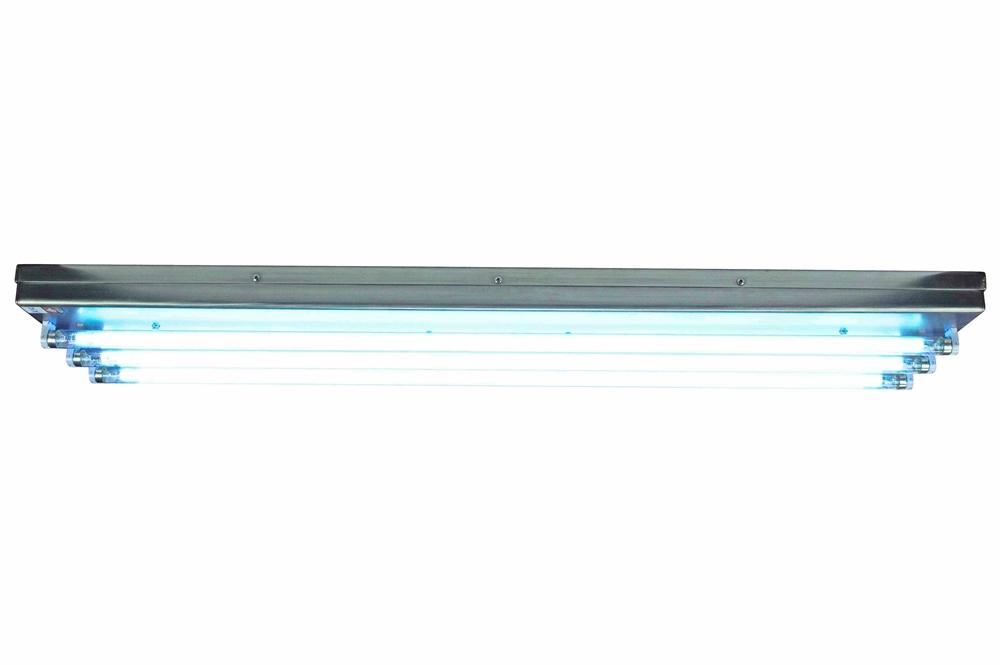

This unit is Made In USA - Manufactured in Texas The Larson Electronics IND-LP-SS-48-3L-UVC UV Fluorescent Fixture provides UVC illumination in industrial facilities. This 97.5-watt unit features three, 4-foot UV fluorescent lamps, housed in a 304 stainless steel housing. The luminary caters to surface mounting and operates on 120-277 V AC, 50/60 Hz. *Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores, and bacteria. * The IND-LP-SS-48-3L-UVC is a fluorescent-based UV lighting system for industrial facilities requiring effective sanitation or disinfection. Consisting of three, 4-foot fluorescent UV lamps, the 97.5-watt unit offers UVC output with a wavelength range of 200nm to 280nm (wavelength of 254 nm). This UV fixture operates on 120-277 V AC, 50/60 Hz (ballast voltage) and features a G13 medium bi-pin cap base. The UV lamps contain an 8,000-hour useful lifespan. The UV light's housing is constructed of 304 stainless steel, with zinc-coated hubs. One lighting ballast is located in a gasketed ballast enclosure at the back of the UV fixture. UV radiation from the unit can damage the skin and eyes without proper protection. Operators should avoid exposure to the eyes and skin when the unit is unshielded (for use in enclosed environments only). In the event of lamp breakage, it is recommended to ventilate the room for 30 minutes and clean the area with gloves (not a vacuum cleaner). Contents should be stored in a sealed plastic bag and brought to a waste/recycling facility. Mounting/Wiring: The IND-LP-SS-48-3L-UVC features a surface mounting system. Surface mounting brackets on the housing facilitate a low profile wall or ceiling mount, making it suitable for installations in tight spaces. Power connections to the UV unit can be completed via two accessible, threaded wiring hubs (1/2" or 3/4"). Note on Environment: Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information. Suggested Applications: Sanitation, disinfection, retail spaces, lobbies, commercial locations, industrial parks, schools, public transportation hubs, airports, office buildings, medical centers, and more; kills 99% of viruses, bacteria, mold, and spores.
