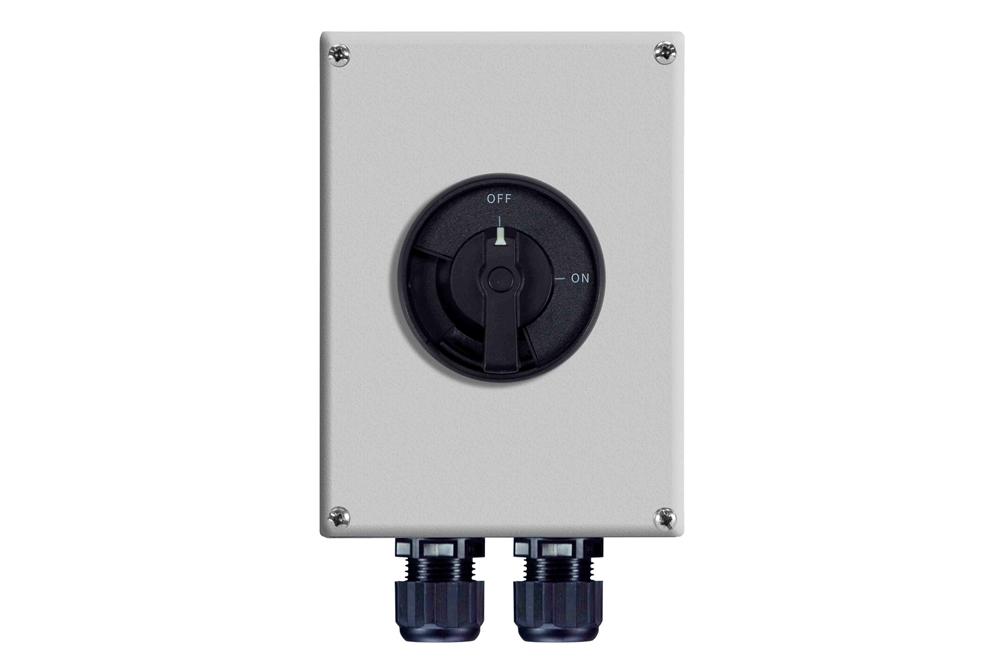

Non-Fused Disconnect Switch - Isolator Switch - Two Pole - 16A - 230V Rated - (1) Open Auxillary Contact - Carbon Steel

LARSON ELECTRONICSSKU: PL3-IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1
filler

Prix:
Prix réduit$1,432.00

Description

Specifications / Additional Information
IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 Weatherproof Non-Fused Disconnect / Isolator Switch Ratings/Details:
Unit Type: Weatherproof Non-Fused Disconnect / Isolator Switch IP66
Dimensions: - Carbon Steel Construction
Weight: - Powder Coated
Rated Voltage: Max to 230 V WF2 Corrosion-Proof Mark
Rated Current: Max to 16 Amps
Utilization Category: AC-23, AC-3
Rated Insulation Voltage (Ui): 690 V
Rated Withstand Impulse Voltage (Uimp): 6 kV
Rated Short-Time Withstand Current (Icw): 10 kA
Rated Short-Time Marking Capacity (Icm): 15 kA
Short-Circuit Protection of Fuse: 500 V / 16 A
Protection Characteristic of Fuse: gG(Conformity to IEC/EN60269-1)
Ambient Temperature: -55°C to + 55°C
Selector Switch: (1) 2-Pole, 2-Position Selector Switch Labeled "ON", "OFF"
Selector Switch Safety: Lockout/Tag Out Lock
Auxillary Contact: (1) Normally Open
Terminals: (2) 2.5 mm Terminals w/ Internal Wiring
Materials: Carbon Steel - Powder Coated - Gray
Cable Entry: (2) Cable Entries - Each w/ M25 Plastic Cable Glands
Mount: Surface
Cable Diameter: Can Accommodate 0.31" to 0.67" (8-17mm) Cable
' Product Overview '
The IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 from Larson Electronics is a Weatherproof Non-Fused Disconnect / Isolator Switch that is rated for 230 V, 50 Hz and is also rated IP66 for use in areas where exposure to dust or powerful water jets is possible. This weatherproof non-fused disconnect / isolator switch prevents all ingress of dust and immune to water sprayed from powerful jets. The IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 features a two position selector switch and one normally open auxillary contact. The IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 is constructed from carbon steel and is powder coated gray for durability and corrosion resistance. The IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 is a durable weatherproof non-fused disconnect / isolator switch designed for areas that encounter dusty or wet conditions. Featuring an voltage rating of 230 V, 50 Hz, this unit features one normally open auxillary contact in addition to the two-position selector switch. This isolator switch is equipped with two M25 moulded plastic cable glands with a diameter of 8-17 mm. The two position selector switch on the IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 is labeled "ON" and "OFF". The switch is key lockable for lock out or tag out. Voltage: The IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 has a voltage rating of 230 V, 50 Hz. Wiring/Mounting: The IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 features two cable entries. Each entry is equipped with a M25 plastic cable gland and can accommodate cables with a diameter of between 0.31" to 0.67" (8-17mm). The IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 has two 2.5mm terminals with internal wiring on the inside. Materials: The IND-WPCS-CS-NFDS-230V-2P-16A-AUX.1-R1 is built from carbon steel and is finished in a gray powder coating for durability and corrosion resistance. Applications: Situations requiring a weatherproof non-fused disconnect / isolator switch.
