3-Stage Light Mast - Extends to 14' - Mount LED, HID, Halogen, Metal Halide Fixtures - H-Mount Mast

3-Stage Light Mast - Extends to 14' - Mount LED, HID, Halogen, Metal Halide Fixtures - H-Mount Mast

$6,982.00 CAD
$6,982.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
LM-12-3S-2FT.H - 14` Three Stage Telescoping Light Tower Quick Summary
Length: Telescoping from 6.5` to 14` 6.5` to 14` Foot Light Mast
Weight: +-150 lbs Steel Construction
Capacity: 125 lbs Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (1) 1,000lbs Manual Winch, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable
Top Mast: 44"W H-Mount Mast Head w/ (2) Mounting Platforms
Mounting: 1/4" thick, 13"x15" Base Plate
Anchor Bolts: (6) 9/16" Bolts
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-375 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

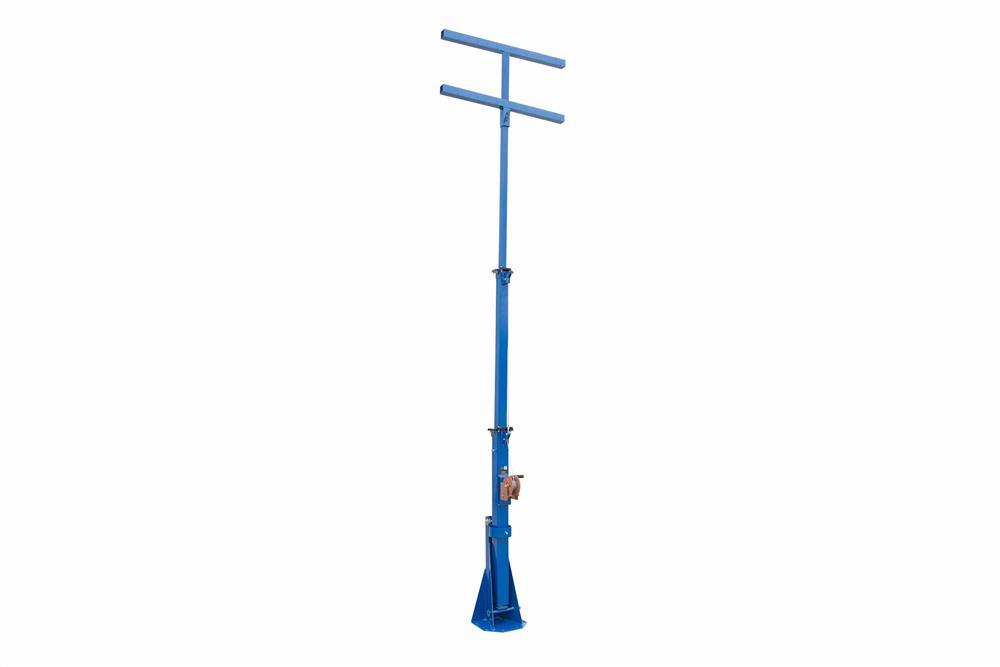

Made in the USA The Larson Electronics LM-12-3S-2FT.H fold over 3-stage light mast winches provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to fourteen feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, a H-head component at the top of the pole which allows up to 8 pieces of equipment to be mounted, and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 14` for effective coverage. This light boom can be extended to 14` for maximum area coverage and collapsed to 6.5` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 5.3` in length and 4" by 4" by 1/8" thick, middle section 5.4` in length and 3" by 3" by 1/8" thick, and an upper section 5.9` and 2" by 2" by 1/8" thick. Each section has a 2` minimum overlap. The mast is elevated by pressing down on the end of base stage, elevating the mast into the upright position. The mast is extended to its full height using an included 1,000 lbs hand winch with 3/16" galvanized cable.
Click Photo to Enlarge 360° Rotation
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 36" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. An H-head component is mounted at the top of the pole which allows for two rows - up to 8 pieces - of lighting or equipment to be mounted. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 6.5`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. This light tower weighs approximately 150 lbs and can easily support and lift 125 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 8` long, 4` wide, 5` tall and weighs approximately 375 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winch included standard or optional electric winch.
Click Photo to Enlarge
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
