15 Foot Four Stage Telescoping Mini Light Mast - 5' to 15' Electric Light Boom - Stationary Mast

LARSON ELECTRONICSSKU: PL3-LM-15-5-4S-EW
filler

Prix:
Prix réduit$20,664.00

Description

Specifications / Additional Information
LM-15-5-4S-EW 15ft Four Stage Telescoping Light Tower Quick Summary
Length: 5 feet - 15 feet 5` to 15` Foot Light Mast
Weight: +-350 lbs Steel Construction
Capacity: 100 lbs Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (1) 1,200 lbs Electric Winch, Manual or Optional Electric Operation
Cable: 3/16" Galvanized Aircraft Cable UL 508A
Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket
Winch Voltage: 120V or 240V AC 50/60 Hz
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 6.5`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-500 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
The customer ships the failed light mast to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit.
' Product Overview '

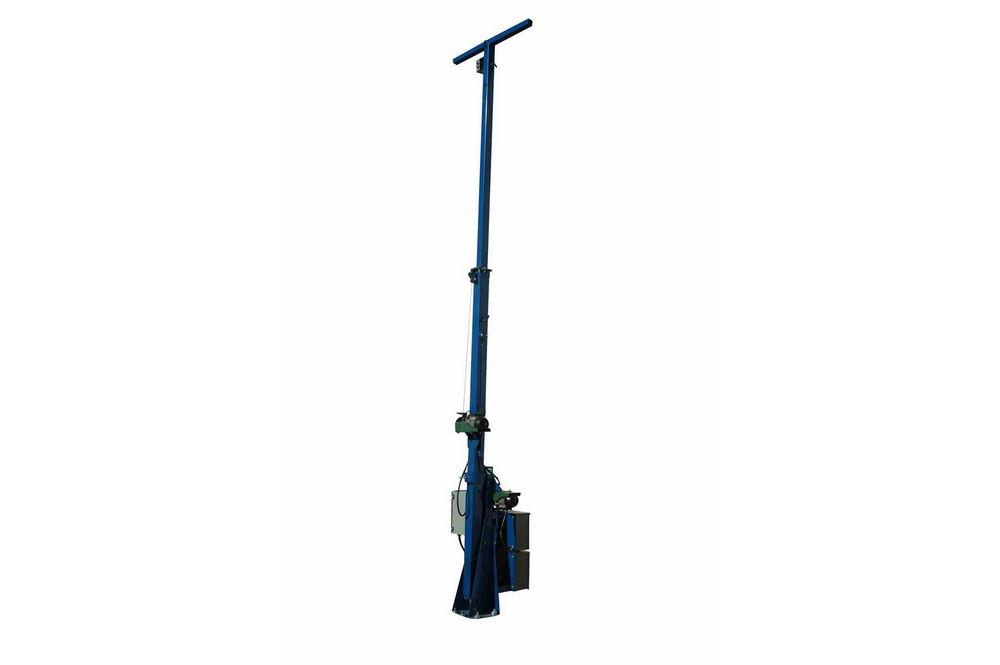

This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-15-5-4S-EW fixed mount 4-stage electric light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to fifteen feet. This light tower features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping four stage electric light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 15 feet for effective coverage. This light boom can be extended to 15 feet for maximum area coverage and collapsed to 5 feet for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 3.35` in length and 5" x 5" by 1/8" thick, lower section 3.45` in length and 4" x 4" by 1/8" thick, an upper section 3.65` in length and 3" x 3" by 1/8" thick, and a top section 4.19` in length and 2" x 2" by 1/8" thick. Each section has a 12" overlap. The mast is extended to its full height using an included 1,200 lbs electric winch with 3/16" galvanized cable.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15 inch by 13 inch, 1/4 inch thick mounting base-plate which has been drilled to accept six 1/2 inch anchor bolts. A 36" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 5 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.  The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. This light tower weighs approximately 350 lbs and can easily support and lift 100 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 6.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 500 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,200 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
