4000 Watt 16 Foot Telescoping Light Mast - Fold Over Light Tower - 360° Rotation - Electric Winches

LARSON ELECTRONICSSKU: PL3-LM-16-4X1000W-EW
filler

Prix:
Prix réduit$18,894.00

Description

Specifications / Additional Information
LM-16-4x1000W-EW Light Mast - Light Tower - Light Boom Quick Summary
Length: 9.6 feet - 18.5 Feet 9.6 - 18.5 Ft Extendable Mast
Weight: 300 lbs Steel Construction
Capacity: 150 lbs 125 mph Wind Resistance
Materials: Steel Manual or Optional Electric Operation
Operation: 2-1,000lbs Electric Winches Lights- UL 1572 & Wet Area Suitable
Mounting: 1/2" thick, 12 inch Square, Four Hole Bracket UL 508A
Winch Voltage: 120V or 240V AC 50/60 Hz
Shipping: Common Freight
Shipping Weight: 380 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements Toll Free: 1-800-369-6671
Intl: 1-214-616-6180
Fax: 1-903-498-3364
E-mail:
' Product Overview '

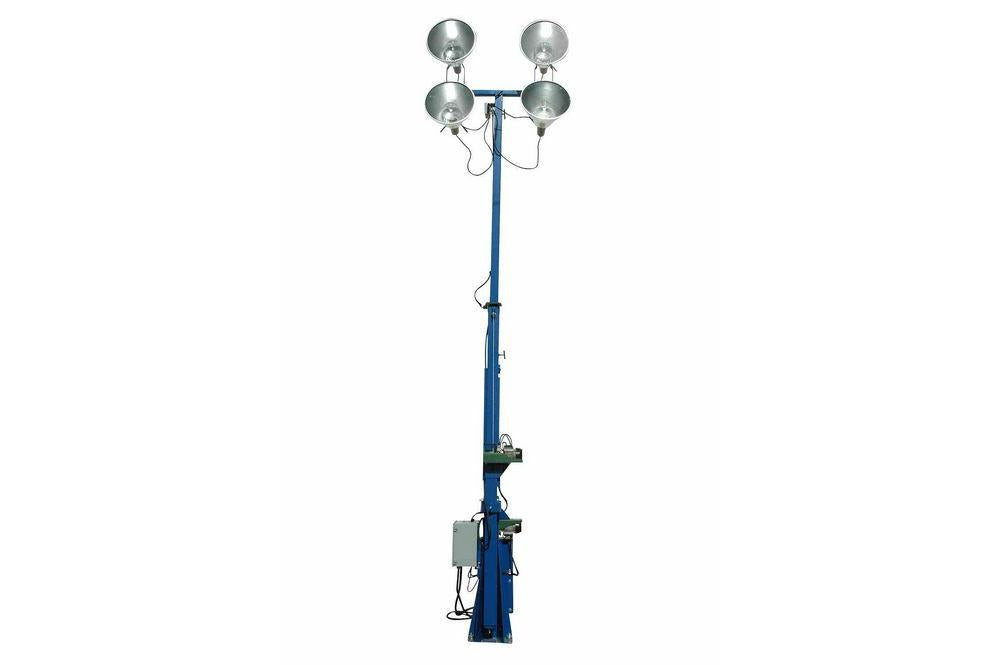

This unit is Made In USA - Manufactured in Texas The LM-16-4x1000W-EW Light Tower from Larson Electronics is an 18 foot extendable light tower equipped with electric winches and four metal halide light fixtures producing approximately 100,000 lumens each. The four 1,000 watt metal halide lamps produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronics’ LM-16-4x1000W-EW telescoping steel light tower allows operators to quickly and safely deploy 4,000 watts of metal halide lighting in locations where elevated illumination is needed for maximum area coverage. This two section light boom can be extended to 18.5 feet for maximum area coverage and collapsed to 9.6 feet and lowered into a horizontal position for transport or stowage. The tower is constructed of square steel tubing with a lower section 9 feet 6 inches in length and 4 inches in diameter and an upper section 7 feet 6 inches in length and 3 inches in diameter. The mast is elevated using an included 1,000 lbs electric winch with 1/4 inch cable and extended to its full height using a second 1,000 lbs electric winch. The tower alone reaches 16 feet and the total height of this tower, including the metal halide lamps, is 18.5 feet. The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches.

Included with this light tower are four of our wet area suitable metal halide fixtures producing a combined total of approximately 400,000 lumens at 4,000 watts. These lamps have 19” reflectors and are constructed of aluminum with a clear tempered glass lens which is secured into place with a heavy duty gasket and single ring lock. These floodlights produce a wide flood light pattern capable of illuminating approximately 5 acres. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. These light masts are typically mounted to trailers or other stable surfaces via a 12 inch square, 1/2 inch thick mounting base-plate which has been drilled to accept four mounting bolts (3/4 inch). A 24 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four metal halide fixtures. This light tower when lowered to 9.6 feet can withstand winds up to 125 mph. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Call us at 1-800-369-6671 or contact us at to discuss any special custom ordering requirements. Suggested Applications: Construction sites, event lighting, emergency services, highway projects, industrial plants, mining and excavation and anywhere a mobile light source with large area coverage capability is needed.
